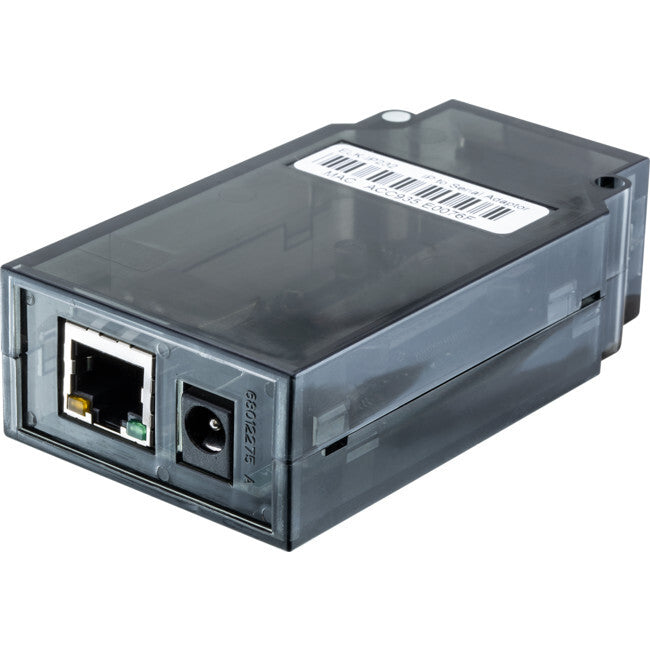

The IP232 is an Ethernet to RS-232 Serial Port Bridge.
It may be used to connect any standard serial communications device such as a PC, an audio/video distribution system, or a Ness-M1 Control or Ness D8X / D16X, to an Ethernet network.
It allows bi-directional communication between the two. It operates as a network server, which means it does not initiate network connections, but rather, accepts them.
The IP232 is required to connect the D8X / D16X to the Ness iComms iOS App or the Ness M1 Touchscreen to the Russound Audio Distribution system.
Features:
Supports both UDP and TCP protocols
Allows up to twelve (12) simultaneous TCP-IP network connections
Up to twelve (12) "Rules" may be programmed to make outgoing connections.
Outgoing connections may be initiated upon power-up or when serial activity is detected.
They may remain connected indefinitely or for a set time period.
Selectable baud rate from 300 to 115200 baud
Supports software handshaking (XON/XOFF) and hardware handshaking (RTS/CTS)
Multiple Bridges can be used on the same network
Can be updated in the field with new firmware using the Configuration Utility
Integrated 802.3 compliant 10/100 Mbit network interface
RS232, DB9M 9-pin serial port connection
Connects to the M1 RS-232 Serial port (Port 0).
Includes programming leads
RJ45 8-pin Network Jack
2.1mm barrel-type power connector (centre positive)
