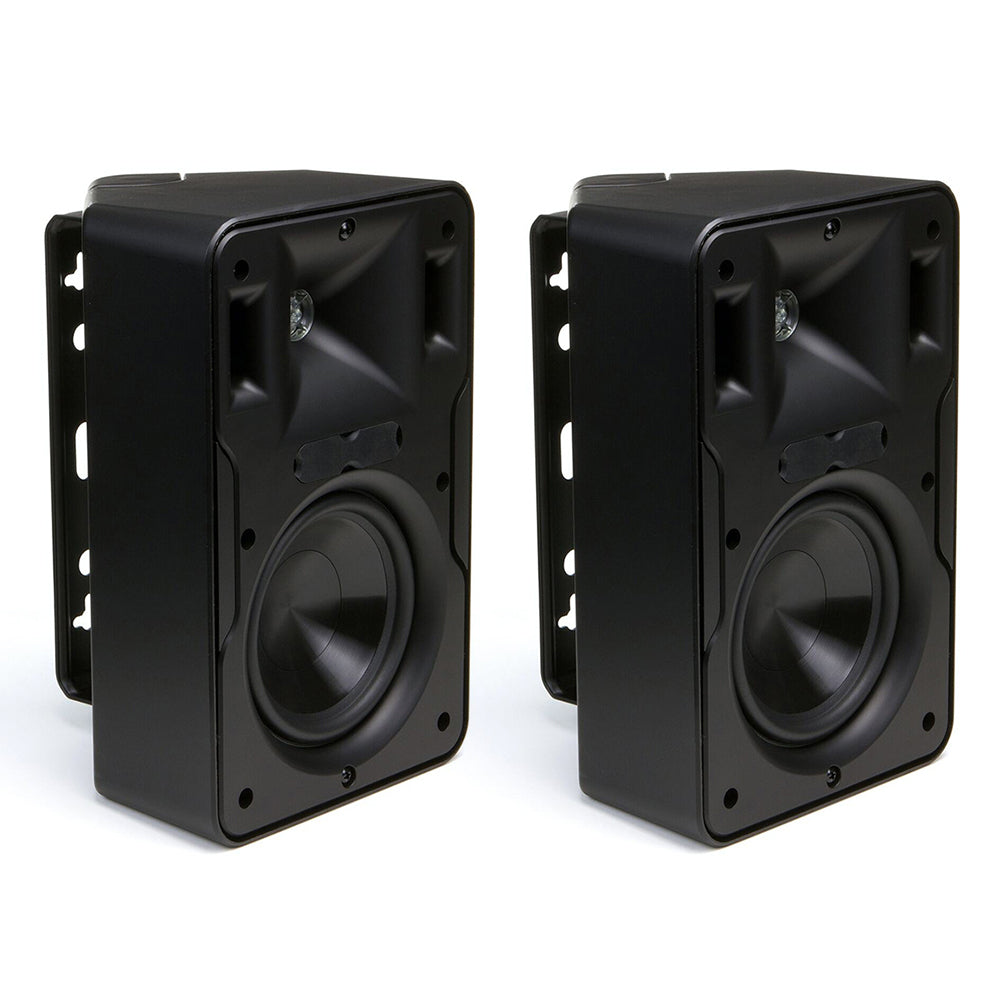

The Klipsch Compact Performance CP-6T cabinet speaker, with its weather-resistant design combined with its small stature, is the perfect 70/100 Volt distributed audio solution for retail, hospitality, restaurants and bars, whether operation is indoors or out.
The proprietary Tractrix® Horn assures a highly efficient design that reproduces sound with unmatched low-distortion clarity and detail at both foreground and background volume levels.
The conical-shaped, long-throw woofer is designed for minimal cone breakup for more accurate low frequency response and is reinforced with dual, front-firing ports in a bass-reflex design for maximum bass output wherever the speaker is located. The 90° x90° horn dispersion assures wide, even coverage pattern in either
a horizontal or vertical position. Traditional Klipsch efficiency provides maximum output with minimum wattage.
The CP-6T makes a highly aesthetic statement, designed to have an appealing look from all angles with its integrated bracket and its ability to be tightly mounted into a wall-to-wall or wall-toceiling corner due to its V-shaped rear profile. The front bracket attachment combined with front baffle speaker terminals assures a safe, easy, one-screwdriver installation. Tool-free 15° increment angle adjustment makes positioning a breeze. Tap settings are also conveniently front-baffle placed for quick access. If needed, the CP-6T is provided with dual 1/4”, 20 thread, rear-positioned inserts for utilization of a third party bracket and/or a safety cable attachment. The CP-6T is offered in a paintable Black or White cabinet with matching grille.
With high sensitivity combined with multiple tap settings, the CP-6T is the perfect choice for numerous commercial applications of varying sizes. Its 8 ohm bypass allows quick adaptability for venues that specify separate 70/100 Volt and low impedance zones in the same system. Available in a paintable Black or White cabinet.
FREQUENCY RESPONSE: 83Hz-22kHz +/- 3dB
POWER HANDLING: 75 w (300 peak) (8 ohm bypass)
SENSITIVITY: 94 dB
NOMINAL IMPEDANCE: 8 ohm (8 ohm bypass)
TWEETER: .75" (1.9cm) aluminum dome tweeter
HIGH FREQUENCY HORN: 90° x 90° Tractrix® Horn
WOOFER: 5.25" (13.3cm) long-throw IMG woofer
CROSSOVER FREQUENCY: 3kHz 12dB octave
ENCLOSURE TYPE: Bass-reflex via dual front-firing ports
ENCLOSURE MATERIAL: Anti-resonant, mineral-filled PPC; paintable, weather resistant
GRILLE: Powder-coated aluminum w/rotatable logo
TERMINALS: Front baffle mounted accessed via rear pull-through
SPEAKER WEIGHT: 6.85 lbs (3.1 kg)
SPEAKER DIMENSIONS: 11.0"(27.9cm) H x 7.0"(17.8cm) W x 6.1"(15.5cm) D
SPEAKER DIMENSIONS W/ WALL MOUNT: 11.0"(27.9cm) H x 7.0"(17.8cm) W x 6.9"(17.5cm) D
OTHER MOUNTING OPTIONS: 1/4", 20-thread inserts on cabinet rear
FINISHES: White/Black enclosure and grille
WIRE GAUGE ACCOMMODATED: up to 16AWG
MAX CONTINUOUS OUTPUT: 111 dB (8 ohm bypass)
30 watt Tap: 105 dB 70 V/108 dB 100V
15 watt Tap: 102 dB 70 V/105 dB 100V
7v Tap: 99 dB 70 V/102 dB 100V
3.75 watt Tap: 96 dB 70V/99 dB 100V
Includes:
