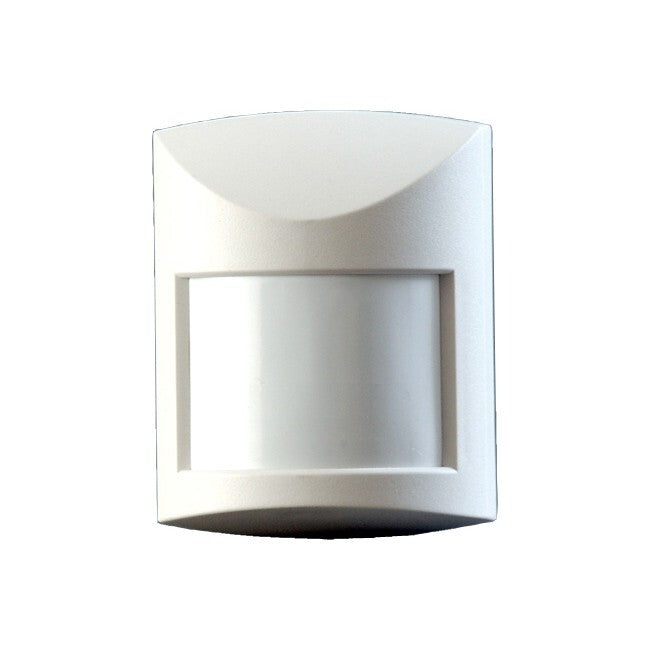

QUANTUM-Q PET AWARE PIR NESS (100-695)

The Ness Quantum -Q PET is the most popular PIR ever produced by Ness Corporation. Now boasting a QUAD Element Pyro Sensor it has a better detection rate and higher noise immunity for lower false alarms.
Quantum-Q is Australian designed and made using precision S.M.D. technology. With enhanced 15-metre wide-angle coverage, selectable Pulse Count and Sensitivity adjustments providing the flexibility to use the Quantum-Q in most environments.

• Quad element pyro sensor

• 15m x 15m wide-angle coverage

• Standard (Std model refer Ness Part No. 106-079) and Pet Aware models

• Adjustable Pulse Count

• Adjustable Range

• High R.F. and E.S.D. immunity

• High white light immunity

• High quality patented Fresnel lens

• Front cover tamper protection

• Totally silent solid state relay with high immunity to magnetic fields

• Optional mounting bracket available

• 9~15VDC Operation

• DIMENSIONS (H-W-D): 85 x 66 x 45 mm

• Optional Q100-243 bracket sold separately
