COMPACT, HIGH PERFORMANCE INDOOR/OUTDOOR 70/100 VOLT LOUDSPEAKER
The Klipsch Compact Performance CP-6T cabinet speaker, with its weather-resistant design combined with its small stature, is the perfect 70/100 Volt distributed audio solution for retail, hospitality, restaurants and bars, whether operation is indoors or out. The proprietary Tractrix® Horn assures a highly efficient design that reproduces sound with unmatched low-distortion clarity and detail at both foreground and background volume levels. The conical-shaped, long-throw woofer is designed for minimal cone breakup for more accurate low frequency response and is reinforced with dual, front-firing ports in a bass-reflex design for maximum bass output wherever the speaker is located. The 90° x 90° horn dispersion assures wide, even coverage pattern in either a horizontal or vertical position. Traditional Klipsch efficiency provides maximum output with minimum wattage.
FAST, EASY INSTALLATION WITH A REFINED LOOK
The CP-6T makes a highly aesthetic statement, designed to have an appealing look from all angles with its integrated bracket and its ability to be tightly mounted into a wall-to-wall or wall-toceiling corner due to its V-shaped rear profile. The front bracket attachment combined with front baffle speaker terminals assures a safe, easy, one-screwdriver installation. Tool-free 15° increment angle adjustment makes positioning a breeze. Tap settings are also conveniently front-baffle placed for quick access. If needed, the CP-6T is provided with dual 1/4”, 20 thread, rear-positioned inserts for utilization of a third party bracket and/or a safety cable attachment.
OUTPUT THAT OUTPACES ITS DIMINUTIVE SIZE
With high sensitivity combined with multiple tap settings, the CP-6T is the perfect choice for numerous commercial applications of varying sizes. Its 8 ohm bypass allows quick adaptability for venues that specify separate 70/100 Volt and low impedance zones in the same system.
- FREQUENCY RESPONSE1 83Hz-22kHz +/- 3dB
- POWER HANDLING2 75 w (300 peak) (8 ohm bypass)
- MAX CONTINUOUS OUTPUT3 111 dB (8 ohm bypass)
- 30 watt Tap 105 dB 70 V/108 dB 100V
- 15 watt Tap 102 dB 70 V/105 dB 100V
- 7v Tap 99 dB 70 V/102 dB 100V
- 3.75 watt Tap 96 dB 70V/99 dB 100V
- SENSITIVITY4 94 dB
- NOMINAL IMPEDANCE 8 ohm (8 ohm bypass)
- TWEETER .75" (1.9cm) aluminum dome tweeter
- HIGH FREQUENCY HORN 90° x 90° Tractrix® Horn
- WOOFER 5.25" (13.3cm) long-throw IMG woofer
- CROSSOVER FREQUENCY 3kHz 12dB octave
- ENCLOSURE TYPE Bass-reflex via dual front-firing ports
- ENCLOSURE MATERIAL Anti-resonant, mineral-filled PPC; paintable, weather resistant
- GRILLE Powder-coated aluminum w/rotatable logo
- TERMINALS Front baffle mounted accessed via rear pull-through
- WIRE GAUGE ACCOMMODATED up to 16AWG
Item Dimensions Approx (Speaker): 11.0"(27.9cm) H x 7.0"(17.8cm) W x 6.1"(15.5cm) D
Includes:

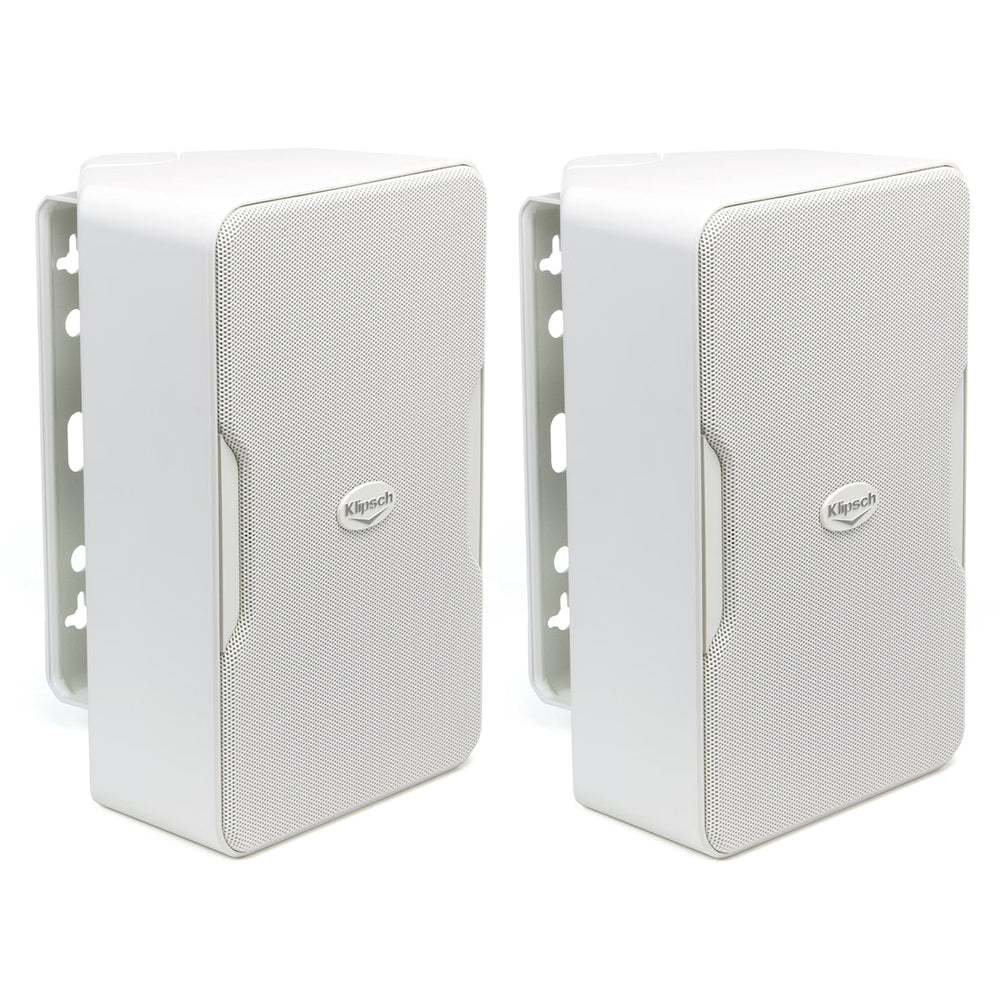

2x Speakers
2x Grilles
2x Brackets
1x Manual
1x Mounting Template
4x Bracket Retaining Screws
