TRUE REFERENCE ACOUSTICS IN A SMALL PACKAGE

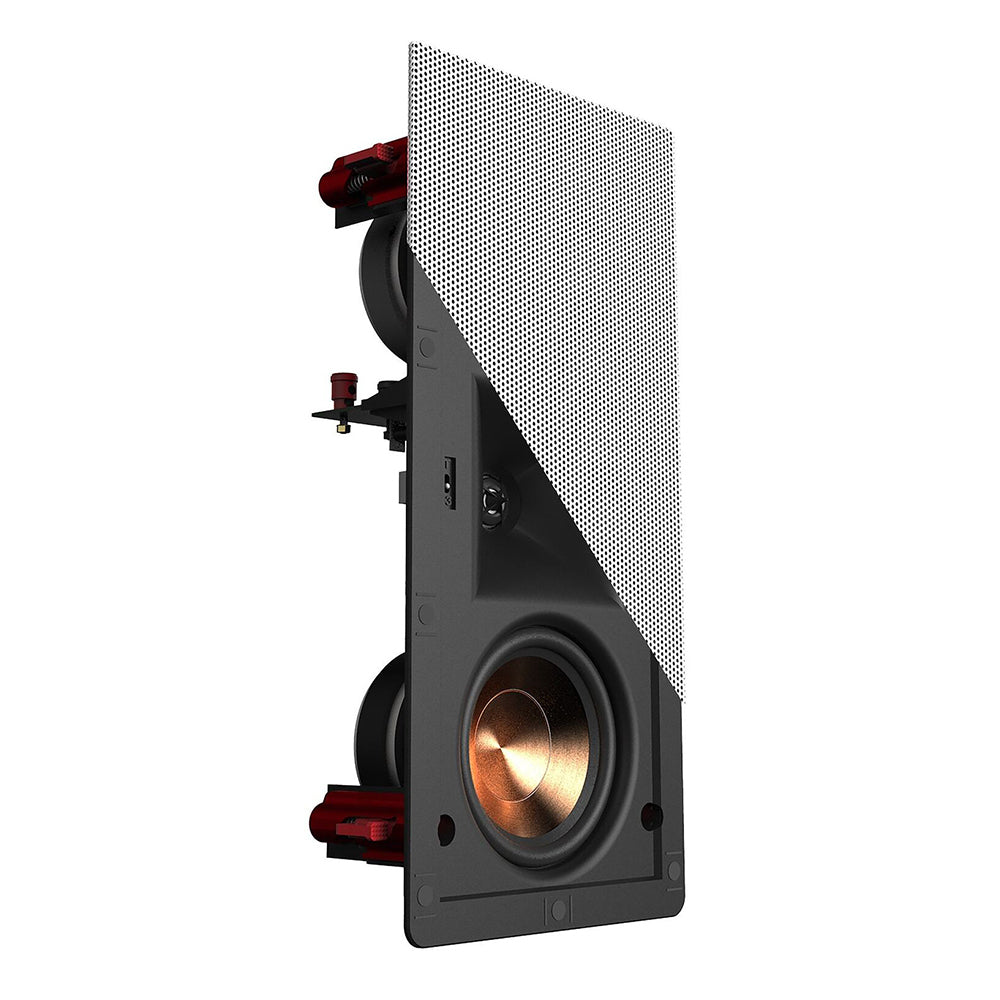

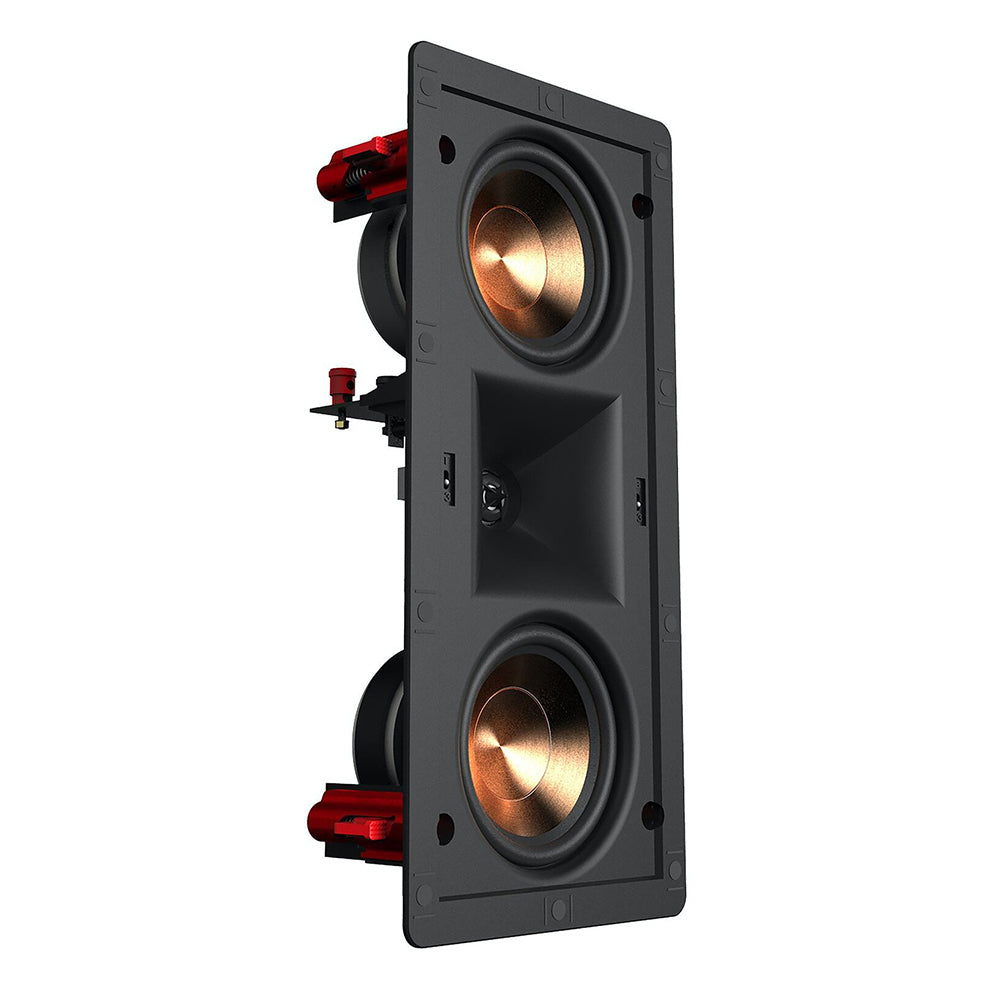

Using the same acoustic components and horn design as the highly acclaimed Klipsch Reference box speaker line, the Professional Reference Architectural series perfectly combines the aesthetics of an architectural speaker with the pure performance and dynamic voicing of the Klipsch Reference series. With dual 4” IMG woofers and a 1” Aluminum Dome tweeter, the Pro-24RW LCR brings dynamic, powerful, detailed Klipsch Reference sound to your distributed audio or home theater system in a small aperture in-wall package.
PATENT-PENDING SKYHOOK™
TOOL-FREE INSTALLATION SYSTEM The exclusive installation system engages the dog legs automatically when the speaker is inserted into the cutout hole with a preset clamping force, eliminating the possibility of overtorquing. This fast, easy installation system reduces install time by up to 75%.

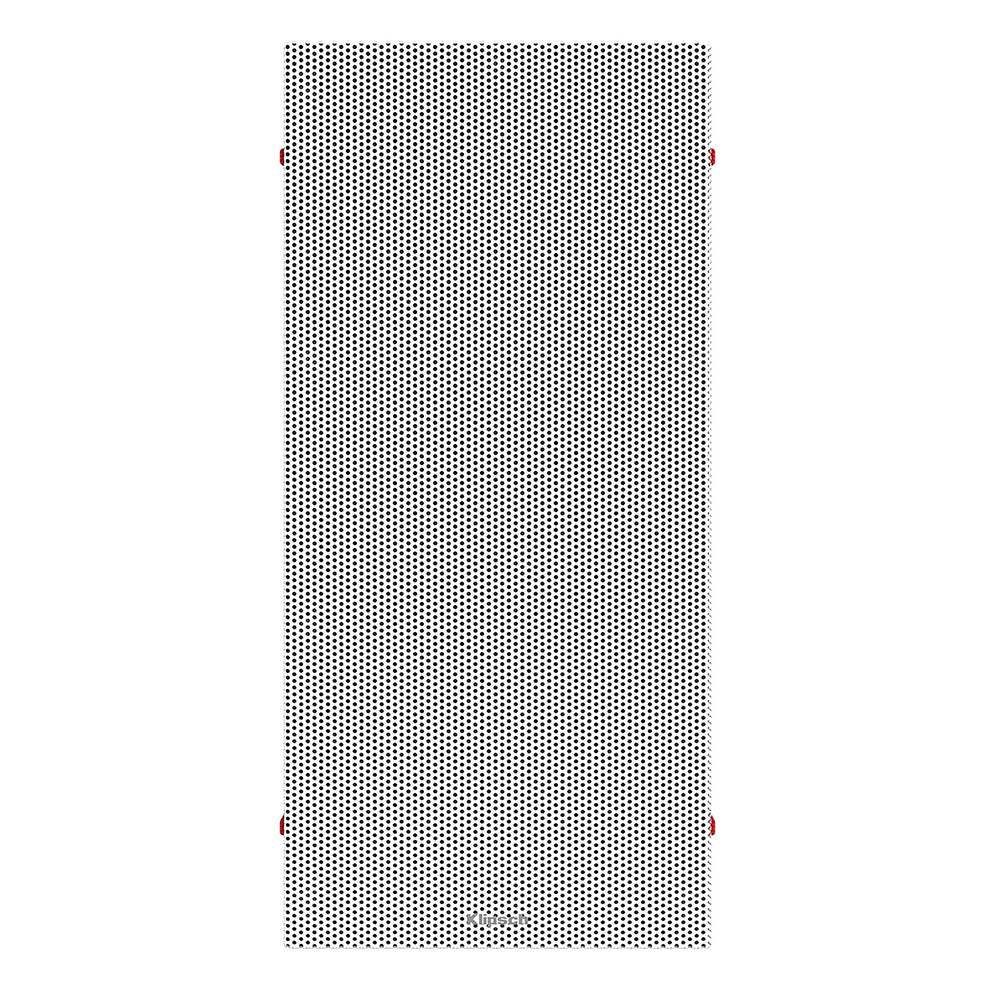

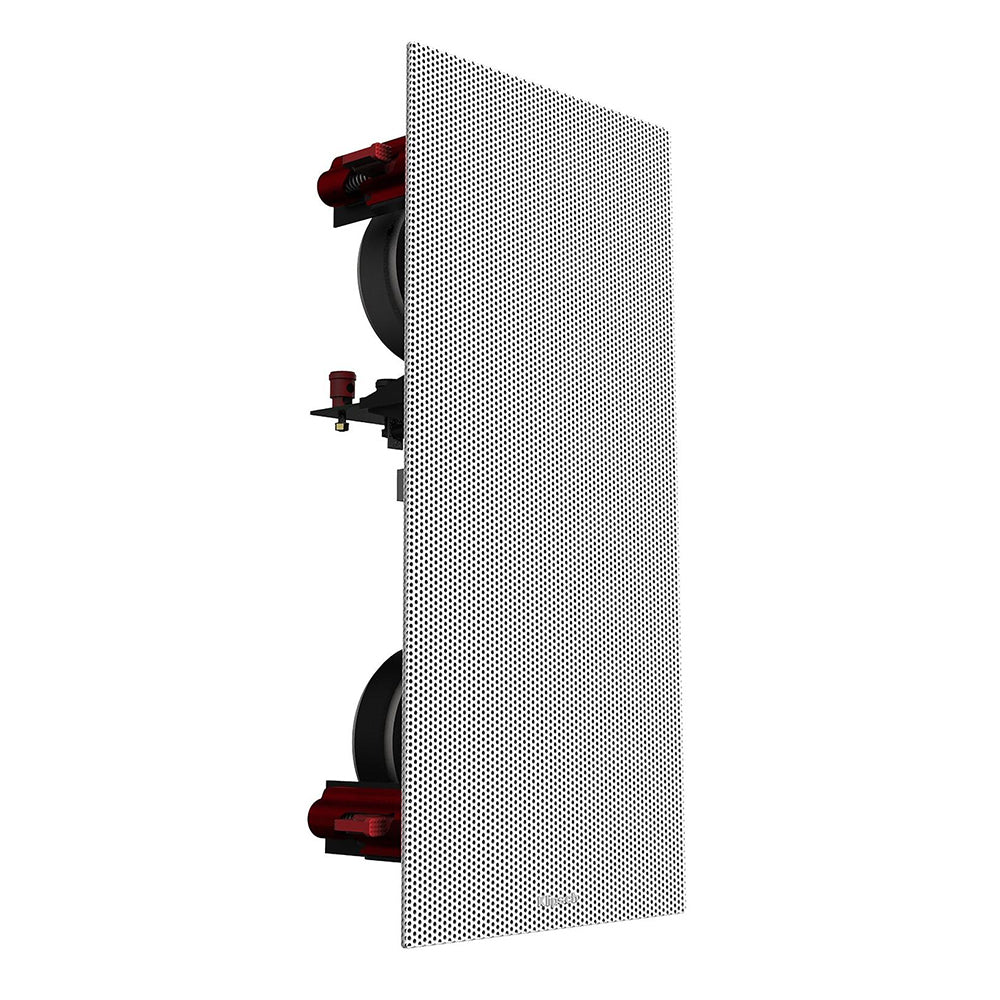

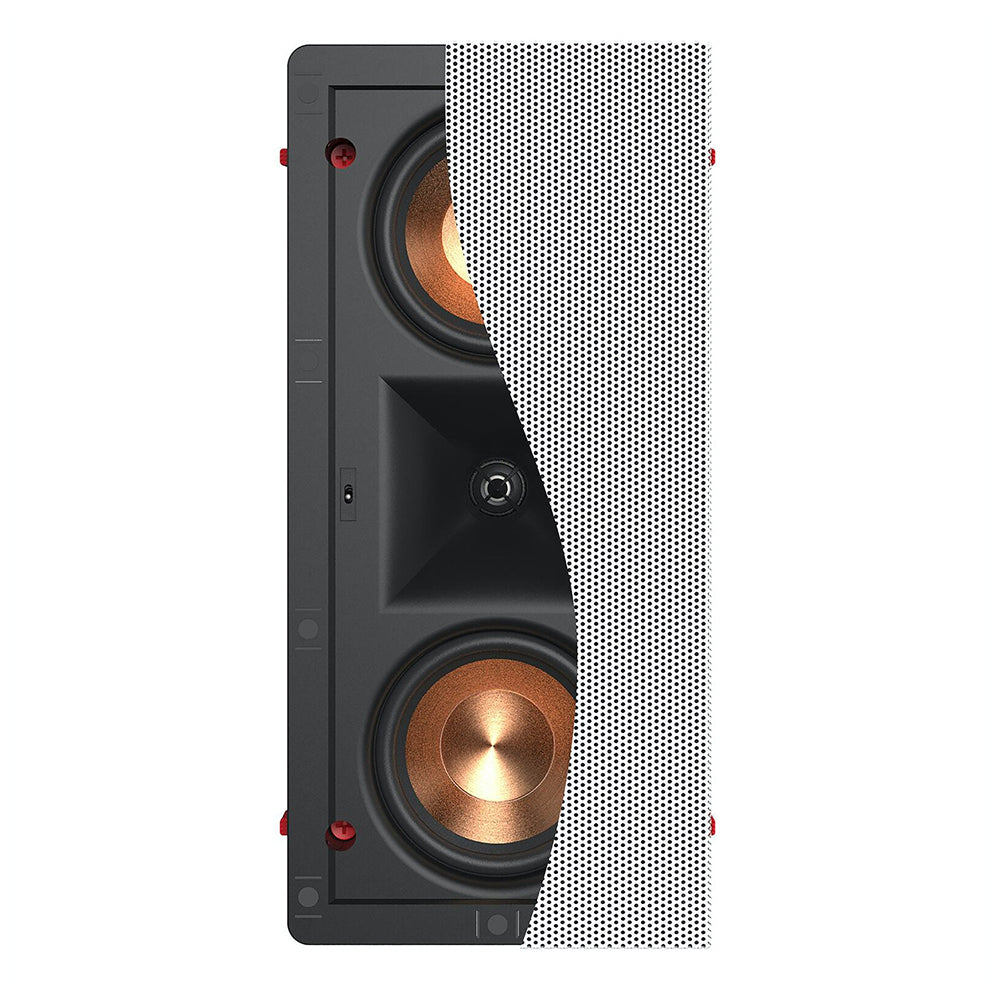

ALL NEW, BEZEL-FREE MAGNETIC GRILLE
A completely redesigned powercoated magnetic steel grille eliminates the bezel for seamless, pristine integration into the living space.
PVC PAINT SHIELD INCLUDED
Also included is a magnetic PVC paint shield that can be used to cover the speaker module to protect it from paint or construction dust during renovations or remodels
FREQUENCY RANGE: 90Hz - 23kHz +/- 3dB
HIGH FREQUENCY DRIVER: 1" (2.54cm) Aluminum Dome Tweeter
LOW FREQUENCY DRIVER: Dual 4" (10.16cm) IMG Woofers
SENSITIVITY: 89 dB @ 2.83V / 1m
COVERAGE ANGLE: 90° x 90°
POWER HANDLING: 30W RMS / 120W Peak
IMPEDANCE: 4 Ohm
ENCLOSURE MATERIAL/TYPE: ABS/Infinite Baffle
FINISH: Black Baffle/Frame, White Paintable Grille
PRODUCT WEIGHT: 4.5lbs (2.1kg)
Item Dimensions Approx: 16.15 x 34.08cm
Cut Out Dimensions: 5.26" (13.36cm) x 12.35" (31.37cm)
Mounting Depth:3.17" (8.05cm)
Includes:
1x Flat Magnetic Grille
1x Paint Shield
