HORN-LOADED PERFORMANCE

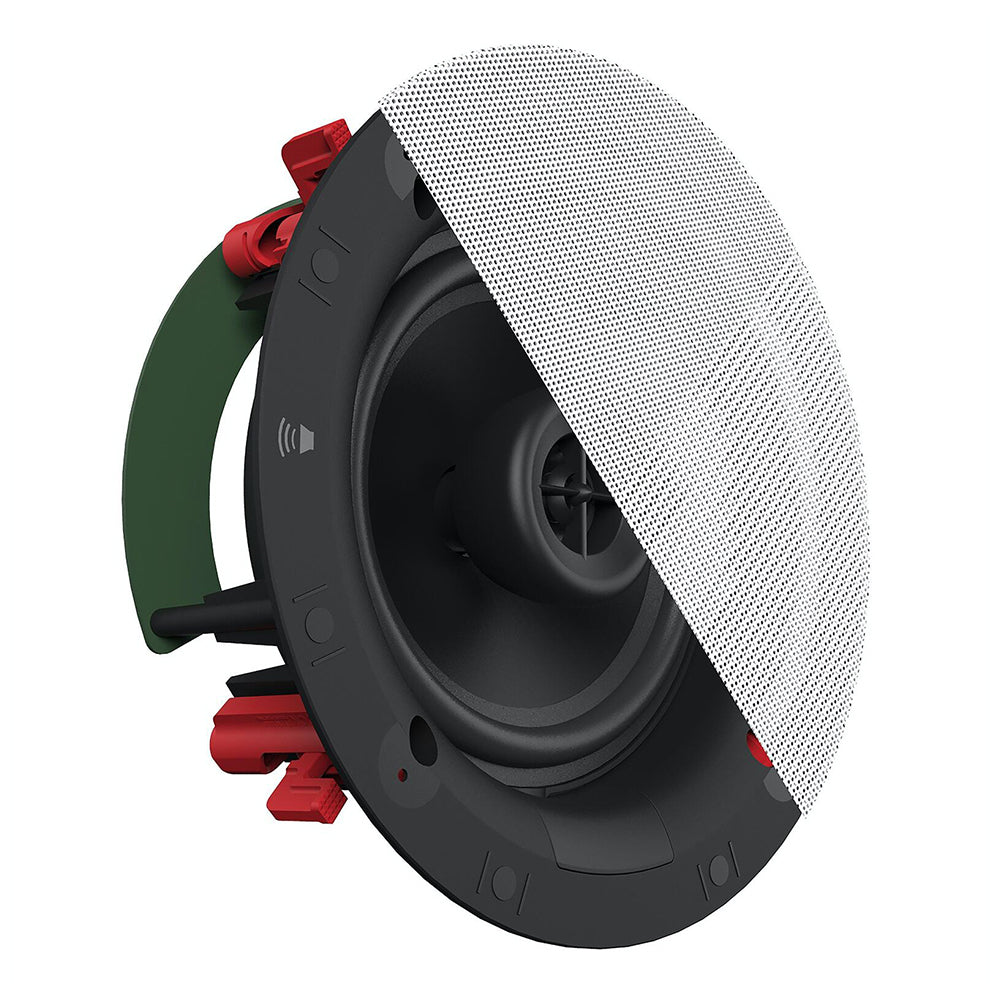

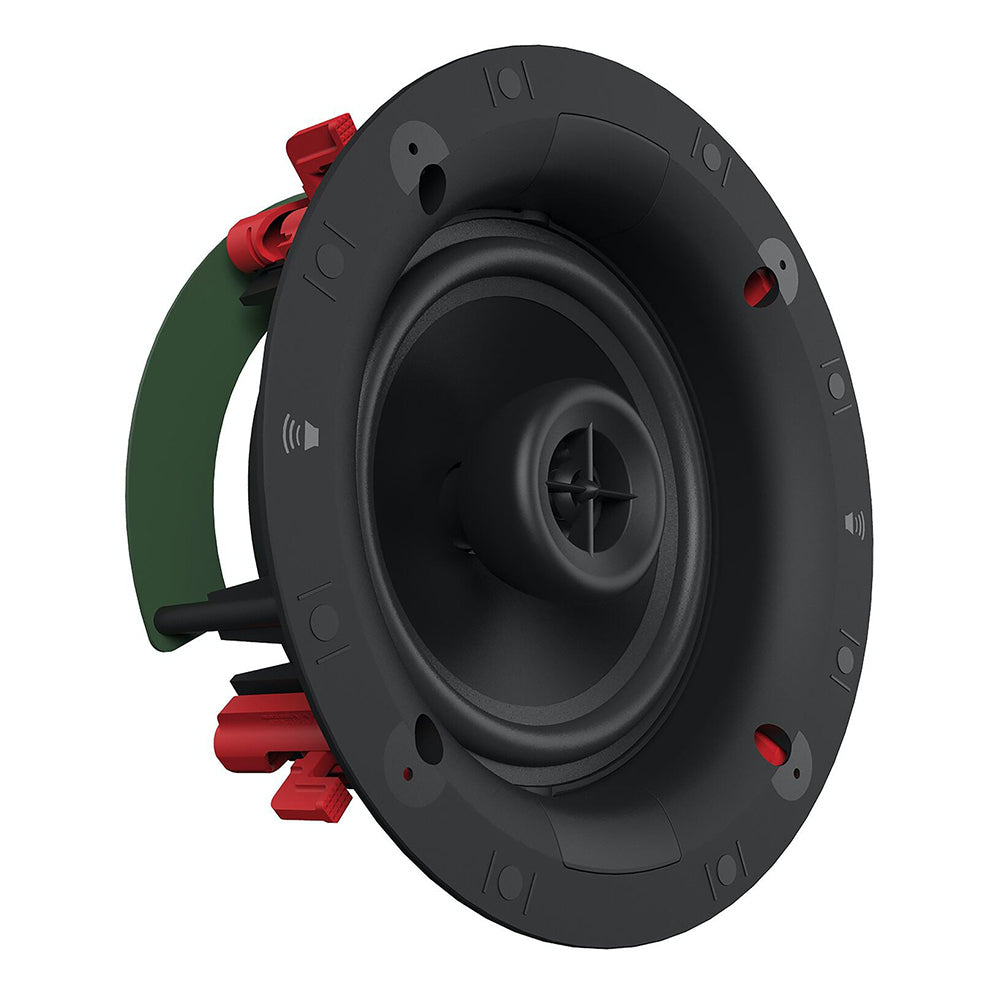

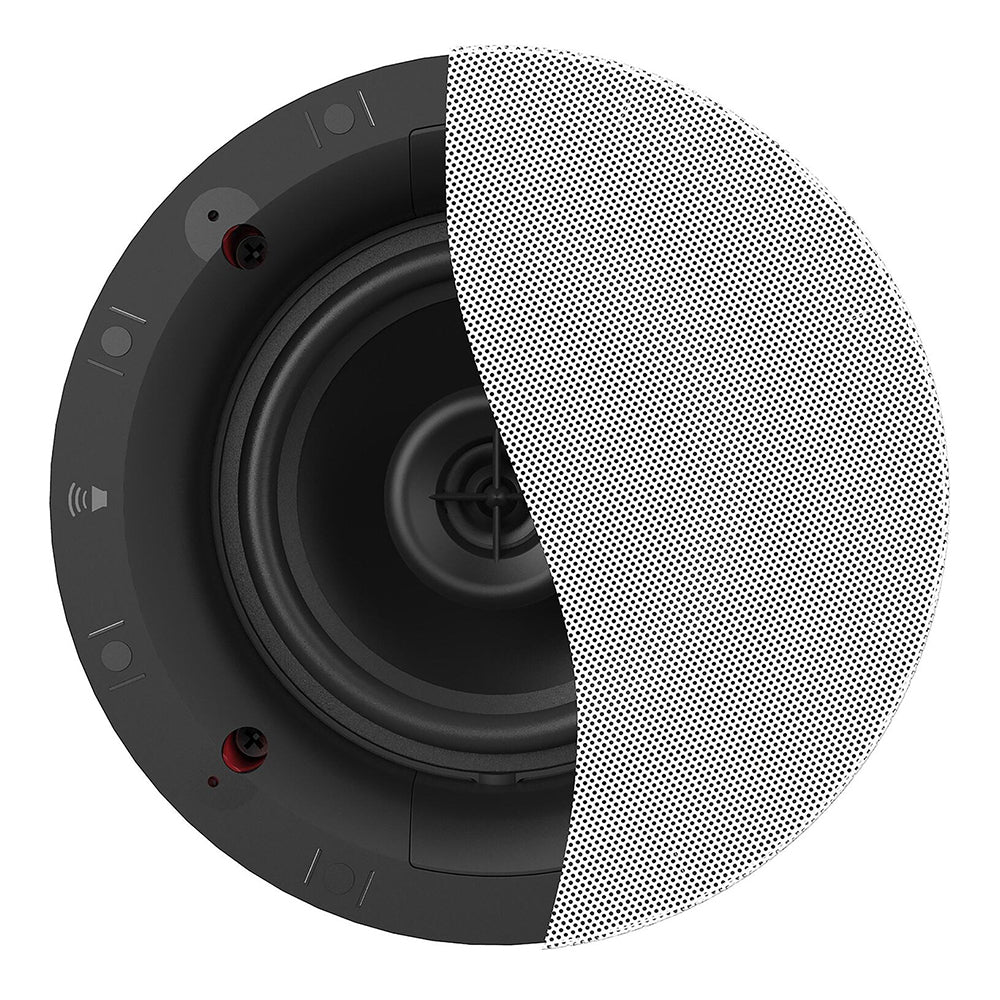

Using the same Tractrix® horn technology and design principles of our premium architectural and box speaker lines, the all new Klipsch Designer series brings true Klipsch power and performance. With a 6.5” Polypropylene woofer and a 1” Silk Dome tweeter mated to a round Tractrix® horn, the DS-160CDT brings dynamic, powerful, detailed Klipsch sound to your distributed audio, home theater, or 2-channel system.
PATENT-PENDING SKYHOOK TOOL-FREE INSTALLATION SYSTEM
The exclusive installation system engages the dog legs automatically when the speaker is inserted into the cutout hole with a preset clamping force, eliminating the possibility of overtorquing. This fast, easy installation system reduces install time by up to 75%.
CONTROLLED DISPERSION TECHNOLOGY™
CDT technology allows for the tweeter and the woofer to be aimed up to 15° in any direction, helping to ensure on-axis frequency response at almost any listening position.

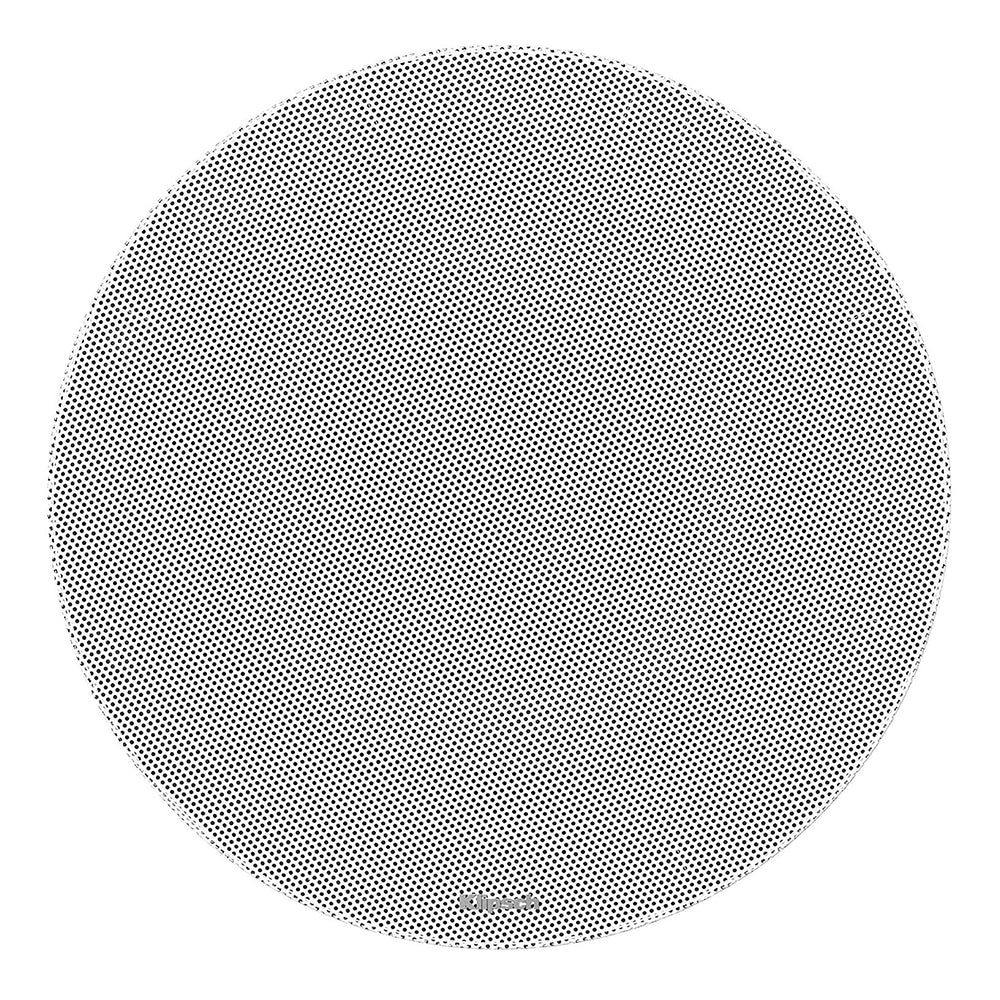

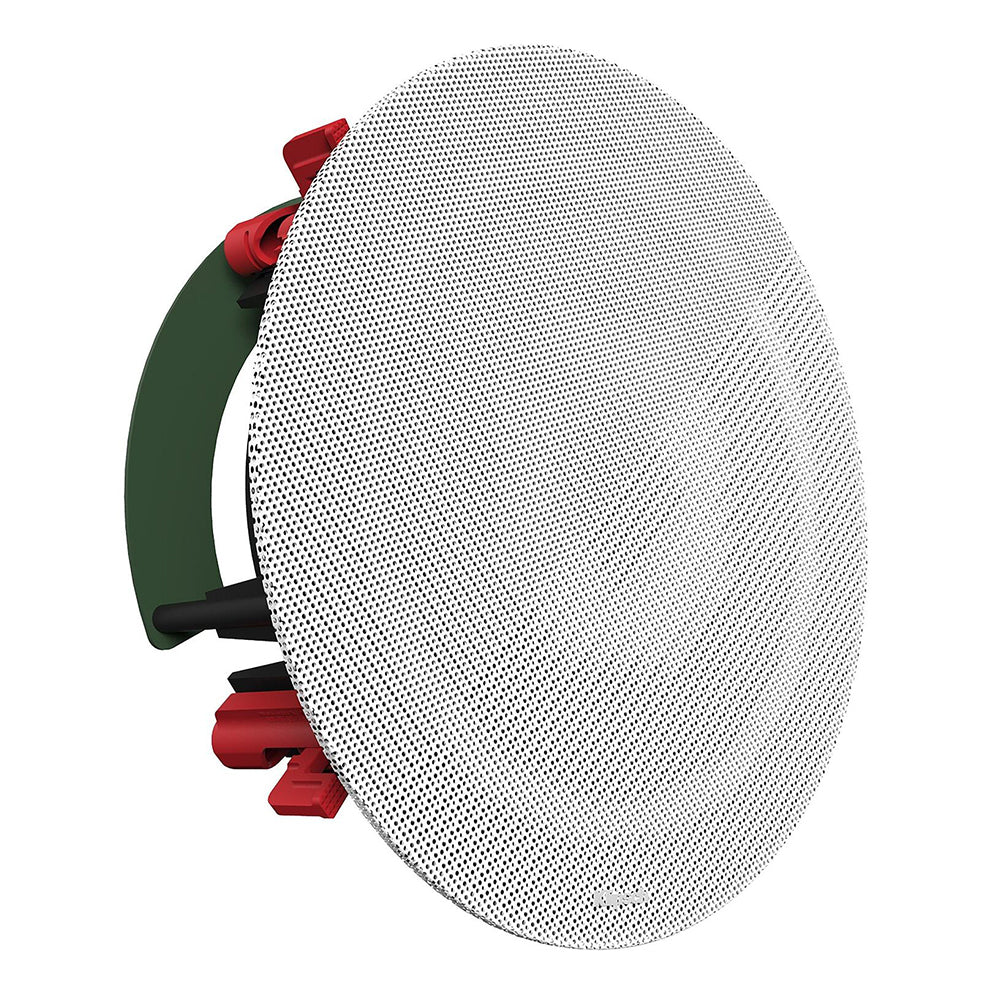

ALL NEW, BEZEL-FREE MAGNETIC GRILLE
A completely redesigned powercoated magnetic steel grille eliminates the bezel for seamless, pristine integration into the living space.
FREQUENCY RANGE: 77Hz - 20kHz +/- 3dB
HIGH FREQUENCY DRIVER: 1" (2.54cm) Silk Dome Tweeter mated to a round Tractrix® Horn
LOW FREQUENCY DRIVER: 6.5” (16.51cm) Polypropylene Woofer
SENSITIVITY: 91 dB @ 2.83V / 1m
COVERAGE ANGLE: 100°
POWER HANDLING: 50W RMS / 200W RMS
IMPEDANCE: 8 Ohm Compatible
ENCLOSURE MATERIAL/TYPE: ABS/Infinite Baffle
FINISH: Black Baffle/Frame, White Paintable Grille
PRODUCT WEIGHT: 7 lbs (3.18kg)
INCLUDED IN BOX: Round Magnetic Grille
Speaker Diameter: 9.3" (23.62cm)
Cut Out Diameter: 7.99" (20.29cm)
Mounting Depth: 4.41" (11.20cm)
Includes:
