Pro2 4K Active Fibre Optic HDMI 18Gbps Cable High Speed Connector Black 20M
PRO2 HL18GF20M 20M 4K ACTIVE FIBRE OPTIC HDMI
Active Optical Cable (AOC) is a cabling technology that accepts the same electrical inputs as a traditional copper cable, but uses optical fibre between the connectors to extend HDMI signals with zero loss or latency. Our hybrid cable design consists of optical fibres and copper wires. The high-speed TMDS signals are transmitted through the optical multimode fibres, while the low frequency control signals are transmitted through the copper wires. The Pro2 HL18GF range of active optical leads give you a distance of up to 200m without a drop of signal quality or the requirement of a separate power supply.
- Meets all HDMI2.0 specification requirements which include:
- High Dynamic Range (HDR) video
- Bandwidth up to 18Gbps
- 4K @ 50/60 (2160p) – 4 times the clarity of 1080p video resolution!
- Up to 32 audio channels for a multi-dimensional immersive audio experience
- Up to 1536kHz audio sample frequency for the highest audio fidelity
- Simultaneous delivery of dual video streams to multiple users on the same screen
- Simultaneous delivery of multi-stream audio to multiple users (Up to 4)
- Support for the wide angle theatrical 21:9 video aspect ratio
- Dynamic synchronization of video and audio streams
- CEC extensions provide more expanded command and control of consumer electronics devices through a single control point
- EMI/RF free for clear signal transmission
- Hybrid construction – multimode fibre for high-speed TMDS, copper for low frequency control signals
- Active Optical Cable (AOC)

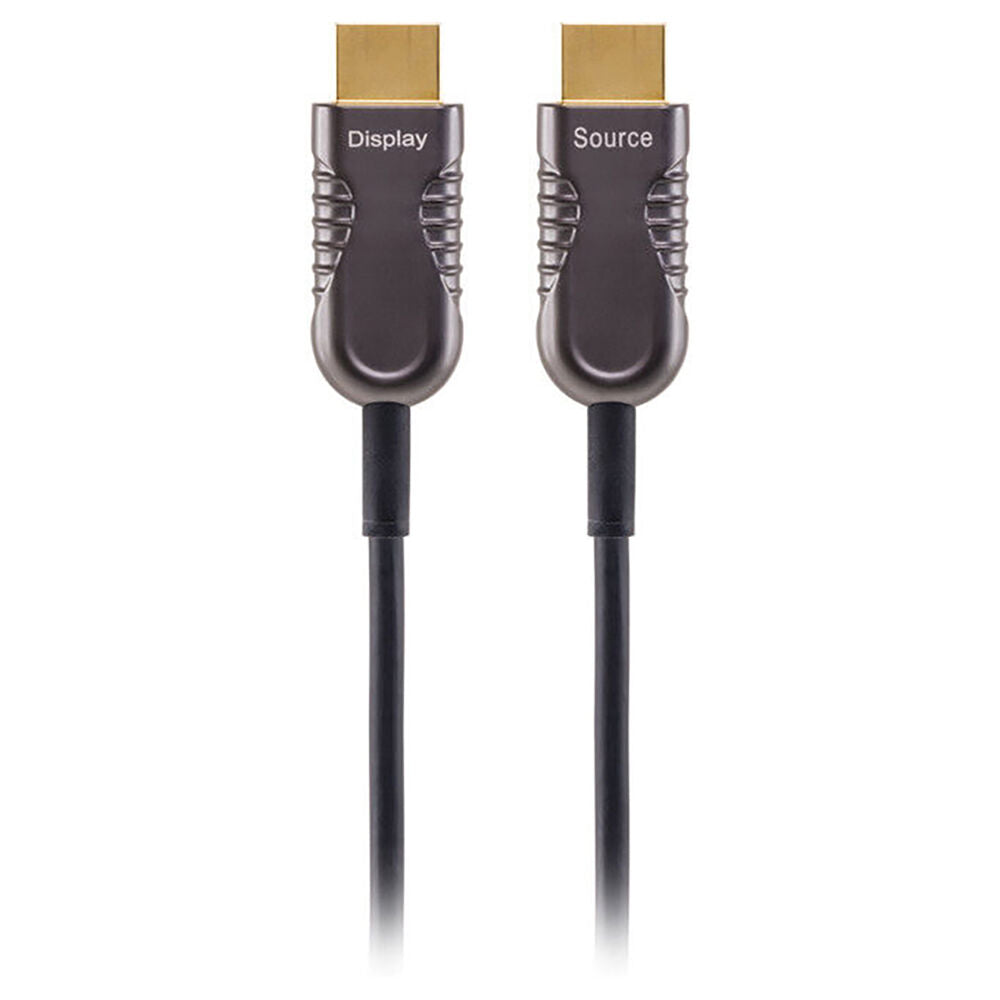

Active cables generally feature a uni-directional design. The Pro2 HL18GF seriesfeature a Display (for TV, monitors etc) and Source (DVD, media, Blu-ray playeretc.) label on each connector end.
- Available lengths: 20m, 30m, 50m, 70m, 100m, 150m, 200m
Specifications
Specifications
| HDMI version | HDMI 1.4b and 2.0 |
| Data Rate | 18Gbps |
| Video Format | 4K/3D/1080p/720p
4K@60Hz |
| Additional Features | HDCP/EDID/CEC/DDC/Audio |
| Maximum length | 200m MMF |
| Operating Temperature | 0°C to 70°C |
| Supply Voltage | 5.0V |
Includes:
1 x Cable
