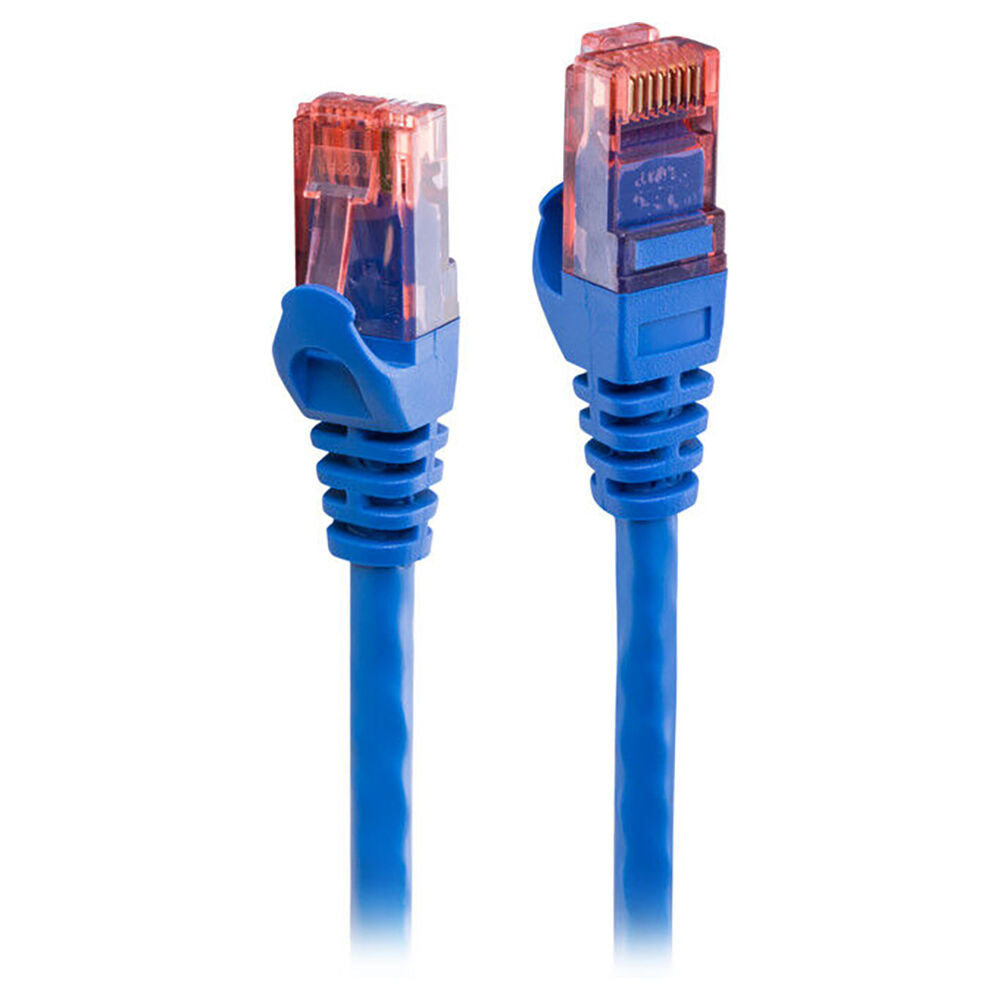

Pro2 CAT6A Patch Lead Cable Connector For Computer LAN/Network Blue 20M
CAT6A cables feature improved specifications that allow it to perform up to 10x better than standard CAT6 cabling. Designed to operate at 500MHz (as opposed to CAT6 which operates at 250MHz), losses are decreased such that 10Gbps speeds are possible.
To maintain transmission characteristics and network integrity, it's essential to use the correct type of patch-cord to match the installation. A network port will perform only at the level of the LOWEST-rated component in the chain.
Features
- Rated up to 10 Gigabits.
- Twice the bandwidth of CAT6 cables.
- Better at resisting alien crosstalk.
- Complying Standards (view report here):
- AS/ACIFS008:2006
- ISO/IEC 11801
- TIA/EIA 568C.2
| Conductor |
| Material | Bare Copper |
| Size | 24AWG |
| Construction | 7/0.2±0.015mm |
| Insulation |
| Material | HD-PE |
| Thickness | Minimum at any point: | 0.18mm |
| Maximum average: | 0.20mm |
| Diameter: | 0.96±0.03mm |
| Jacket |
| Material | PVC |
| Thickness | Minimum at any point: | 0.50mm |
| Maximum average: | 0.58mm |
| Diameter: | 5.8±0.3mm |
Includes:
1 x Cable
