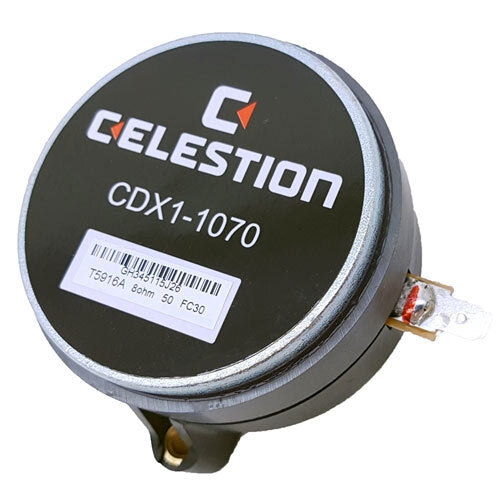

Very lightweight, low-profile ferrite magnet compression driver.
12Wrms (AES standard) power handling and 106dB sensitivity, 1500-20,000Hz frequency range.
Finite Element Analysis (FEA) techniques used to optimise both magnetic and acoustic design.
Ideal for entry-level two-way and three-way sound reinforcement cabinets.
Features:
-
Power rating 12Wrms
-
Nominal impedance 8O
-
Frequency range 1500-20,000Hz
-
Sensitivity 106dB
-
Recommended min. crossover (12dB/oct) 2200Hz
-
Voice coil diameter 25mm/1.0in
-
Voice coil material Copper clad aluminium
-
Magnet type Ferrite
-
Diaphragm material PETP film
-
Surround material PETP film
Includes:
