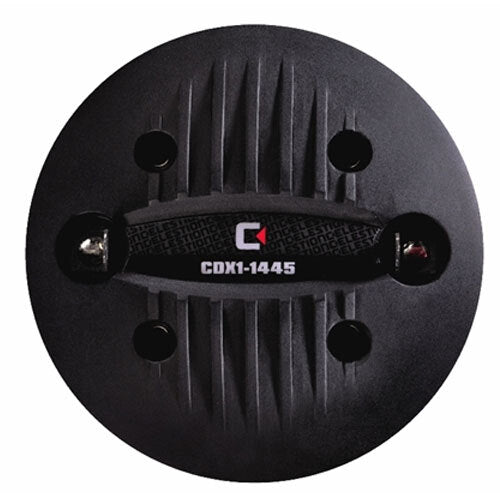

The Celestion 1" 20W HF Driver 8OHM exit lightweight and compact ferrite magnet compression driver with 1.4" copper clad aluminium voice coil.
20Wrms power handling (AES standard) and 106dB sensitivity.
One piece PETP diaphragm and surround Finite Element Analysis (FEA) techniques used to optimise both magnetic and acoustic design.
Suitable for 2-way and 3-way systems.
Features:
-
Power rating 20Wrms
-
Sensitivity 106dB
-
Recommended min. crossover (12dB/oct) 2200Hz
-
Voice coil diameter 35mm/1.4in
-
Voice coil material Copper clad aluminium
-
Diaphragm material PETP film
-
Overall width 90mm/3.54in
-
Overall depth 52mm/2.05in
-
Unit weight 1kg/2.2lb
-
Fitting Flange (4 x M6 holes on 76mm/3in PCD)
-
Throat exit 25mm/1in
Includes:
