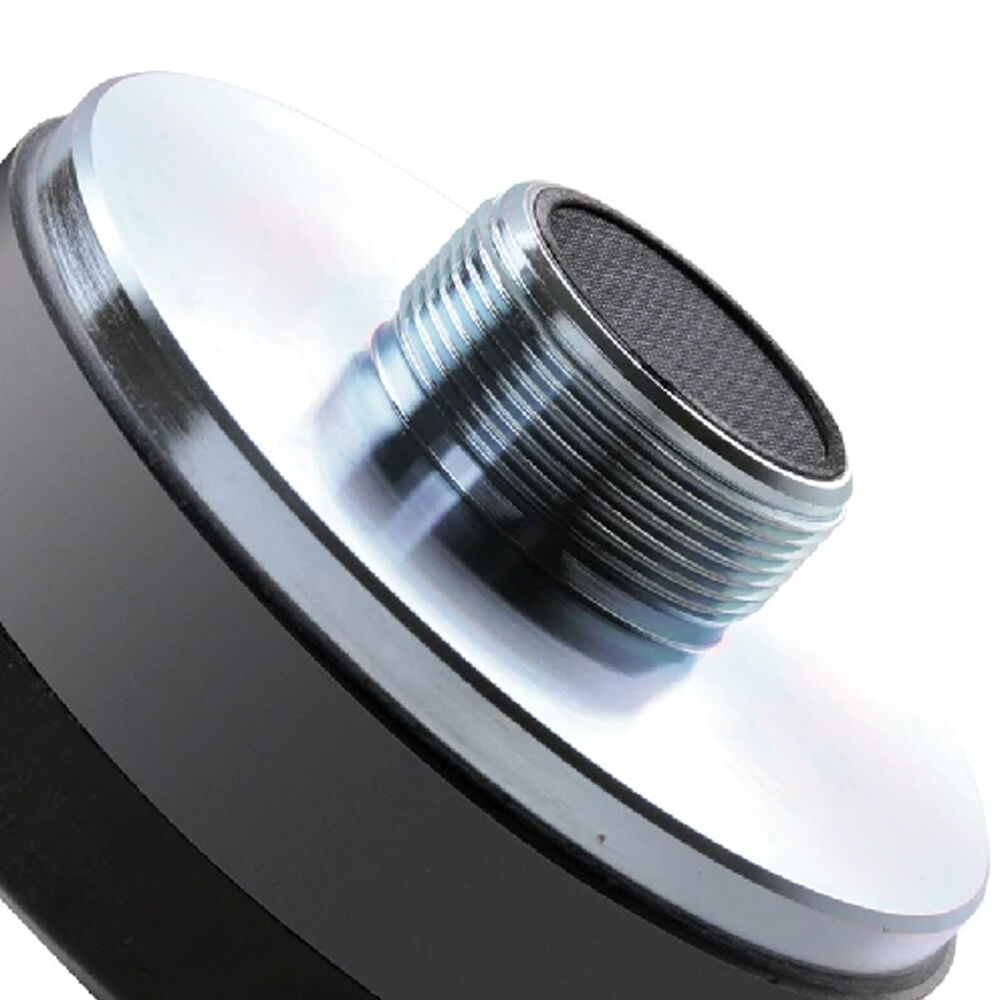

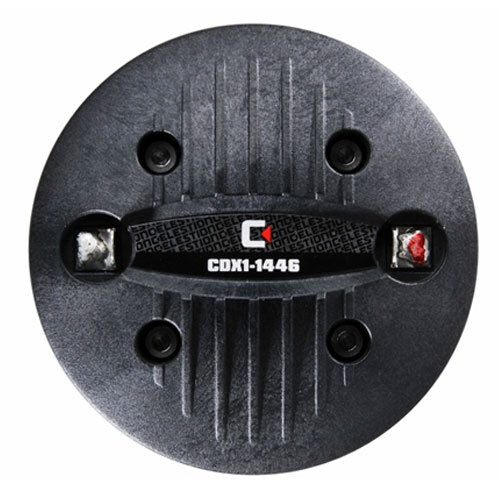

The lightweight and compact ferrite magnet compression driver with 1.4" copper clad aluminium voice coil.
20Wrms power handling (AES standard) and 106dB sensitivity.
Finite Element Analysis (FEA) techniques used to optimise both magnetic and acoustic design.
Suitable for 2-way and 3-way systems
Features:
-
20W
-
Sensitivity 106dB
-
Recommended min. crossover (12dB/oct) 2200Hz)
-
Voice coil diameter 35mm/1.4in
-
Voice coil material Copper clad aluminium
-
Diaphragm material PETP film
-
Surround material PETP film
-
Unit weight 1.1kg
