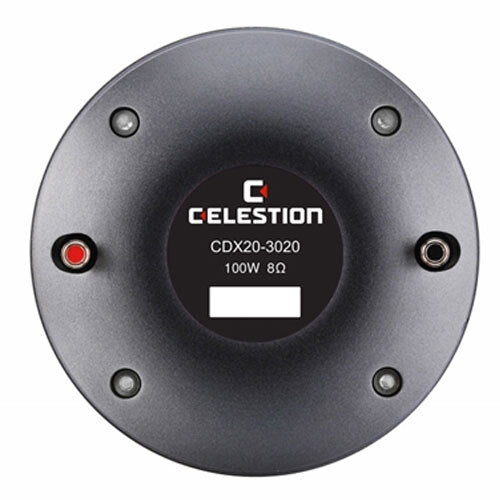

2” exit lightweight, ferrite magnet compression driver with 3”copper clad aluminium voice coil.
100Wrms (AES standard) power handling and 107dB sensitivity.
Next generation Sound CastleTM soft clamping assembly reduces diaphragm stress for decreased distortion and even greater reliability of performance.
Single piece titanium diaphragm and surround.
Features:
-
Power rating 100Wrms
-
Nominal impedance 8O
-
Frequency range 500Hz – 18kHz
-
Sensitivity 107dB
-
Recommended min. crossover (12dB/oct)800Hz
-
Voice coil diameter 75mm/3in
-
Voice coil material Edgewound copper clad aluminium
-
Magnet type Ferrite
-
Diaphragm material Titanium
-
Surround material Titanium
Includes:
