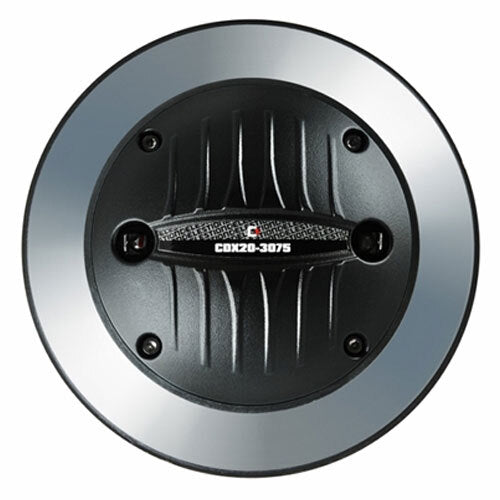

2" exit, neodymium magnet, 3" voice coil compression driver provides 75Wrms (AES standard) power handling and 107dB sensitivity.
Patented phase plug design method suppresses cavity resonances at higher frequencies.
Titanium diaphragm, deep drawn to increase stiffness and reduce distortion.
Lower compression ratio reduces air non-linearity and allows for higher maximum SPL.
Rolled polyimide surround improves stiffness control, further lowering distortion.
Curved coherent wavefront, optimised for horn loading.
Features:
-
Power rating 75Wrms
-
Nominal impedance 8?
-
Frequency range 500-18000
-
Sensitivity 107dB
-
Recommended min. crossover (12dB/oct) 800Hz 12dB/oct
-
Voice coil diameter 3in/75mm
-
Magnet type Ferrite
-
Diaphragm material Titanium
-
Coil material Edgewound Copper Clad Aluminium
-
Surround material Titanium
-
Mounting Information
-
Overall width 7in/180mm
Includes:
