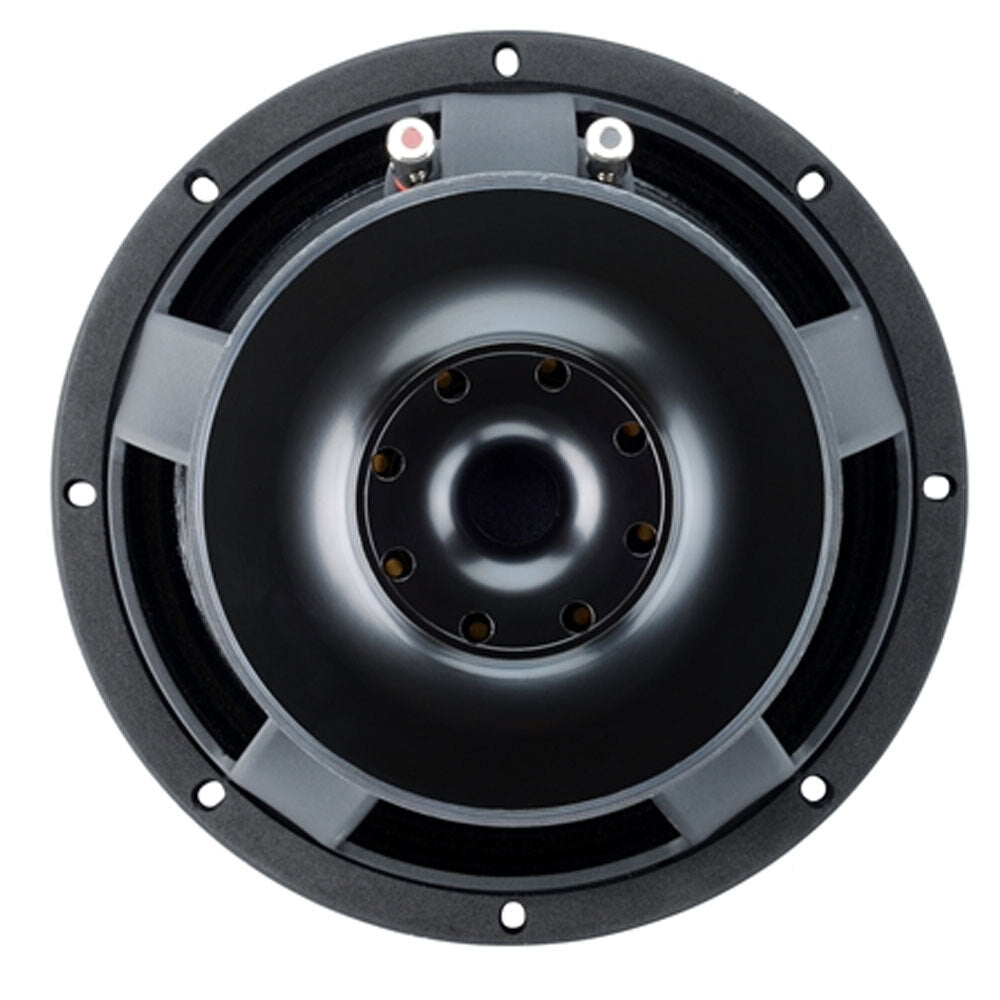

10" Mid/bass driver delivering 99dB sensitivity and 300Wrms (AES standard) power handling.
FEA optimised magnet assembly and suspension delivers highly symmetrical cone movement leading to exceptionally low harmonic distortion.
Balanced Airflow Venting (BAV) increases airflow to provide enhanced cooling.
Twin demodulation rings reduce flux modulation, minimizing electromagnetic distortion.
Features:
-
300W
-
Nominal diameter 254mm/10in
-
Sensitivity 99dB
-
Frequency range 60-5000Hz
-
Voice coil diameter 64mm/2.5in
-
Chassis type Cast Aluminium
-
Magnet type Ferrite
-
Magnet weight 1.7kg/60oz
-
Coil material Edgewound copper clad aluminium
-
Cone material Kevlar loaded paper
-
Surround material Cloth-sealed
-
Suspension Single
-
Xmax 2.5mm/0.1in
-
Gap depth 8mm/0.31in
-
Voice coil winding width12.5mm/0.49in
Includes:
