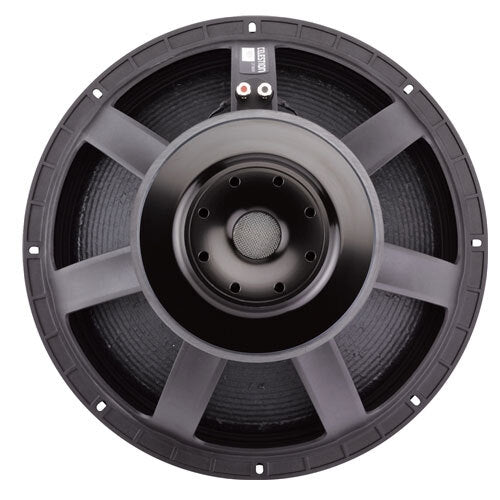

18" ferrite magnet, cast aluminium chassis LF driver delivering 1000Wrms (AES Standard) power handling and 98dB sensitivity
4" high temperature, dual layer, Inside/Outside voice coil for higher efficiency, preventing performance loss through thermal compression
Triangulated coil reinforcement reduces moving mass, thereby increasing sensitivity, while maintaining a long Xmax
Finite element analysis optimised magnet assembly delivers remarkably low harmonic distortion and very high motor strength
Features:
-
Nominal diameter 457mm/18in
-
Nominal impedance 4O
-
Sensitivity 98dB
-
Frequency range 30Hz-2500Hz
-
Voice coil diameter 100mm/4in
-
Chassis type Cast Aluminium
-
Magnet type Ferrite
-
Magnet weight 3.18kg/112oz
-
Coil material Round copper
-
Former material Glass fibre
-
Cone material Carbon fibre loaded paper
-
Surround material Cloth-sealed
-
Suspension Single
-
Xmax 8mm/0.31in
-
Gap depth 9.5mm/0.37in
-
Voice coil winding width 25mm/1in
