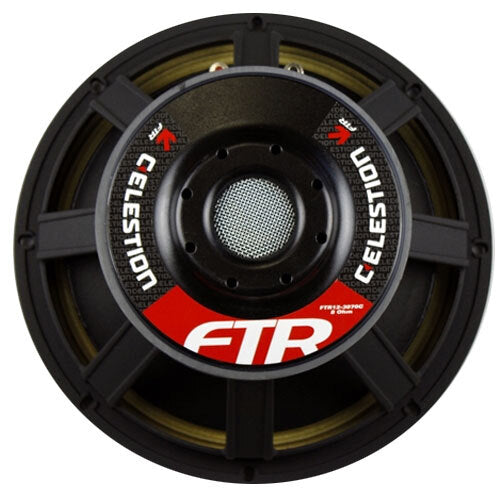

12" ferrite mid/bass driver provides 350Wrms (AES standard) power handling and 96dB sensitivity.
3" high temperature Inside/Outside voice coil efficiently dissipates heat, preventing sensitivity loss due to thermal compression.
Features:
-
Nominal diameter 305mm/12in
-
Power rating 350Wrms
-
Nominal impedance 8O
-
Sensitivity 96dB
-
Frequency range 40-4000Hz
-
Voice coil diameter 75mm/3in
-
Chassis type Cast aluminium
-
Magnet type Ferrite
-
Magnet weight 2.3kg/81oz
-
Coil material Round copper
-
Former material Glass fibre
-
Cone material Glass loaded paper with weather-resistant
-
impregnation
-
Surround material Cloth-sealed
-
Suspension Single
-
Xmax 3mm/0.12in
-
Gap depth 10mm/0.40in
-
Voice coil winding width 16mm/0.63in
Includes:
