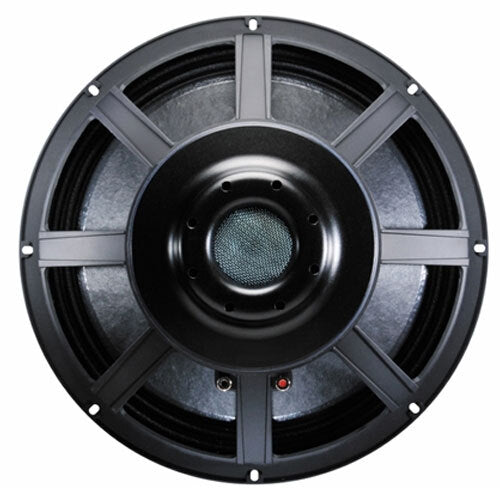

18" ferrite subwoofer provides 1000Wrms (AES standard) power handling and a frequency response of 30Hz-2500Hz.
4" high temperature Inside/Outside voice coil efficiently dissipates heat, preventing sensitivity loss through thermal compression.
Double suspension and a “multi-roll” surround provide exceptional linearity at extremes of cone excursion.
Intelligent heat management in both chassis and magnet assembly design further minimizes distortion.
Features:
-
1000W
-
Nominal diameter 457mm/18in
-
Nominal impedance 8O
-
Sensitivity 95dB
-
Frequency range 30-2500Hz
-
Voice coil diameter 100mm/4in
-
Chassis type Cast aluminium
-
Magnet type Ferrite
-
Magnet weight 3.1kg/110oz
-
Coil material Round copper
-
Former material Glass Fibre
-
Cone material Glass loaded paper with weather-resistant
-
Surround material Cloth-sealed
-
Suspension Double
-
Xmax 8mm/0.33in
-
Gap depth 9.5mm/0.37in
-
Voice coil winding width 25mm/0.99in
Includes:
