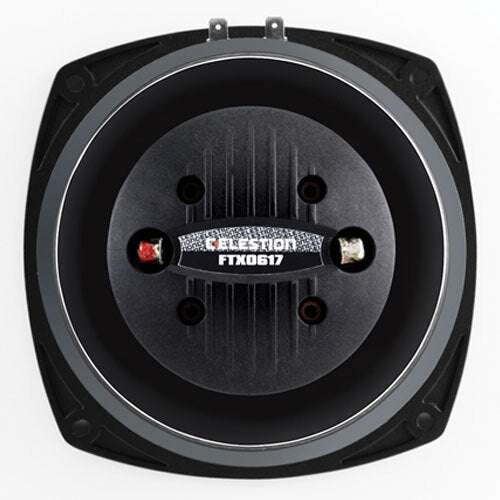

6.5" coaxial loudspeaker providing 150Wrms (AES standard) power handling and 92dB sensitivity.
Full range frequency response: 110 – 20,000Hz.
Robust cast aluminum chassis is designed to minimize unwanted reflections, further reducing acoustic distortion.
Demodulation ring reduces the flux modulation, minimizing electromagnetic distortion.
2" edgewound copper clad aluminum voice coil wound on high temperature glass fibre former.
Features:
-
Nominal diameter 165mm/6.5in
-
Power rating 150Wrms
-
Nominal impedance 8O
-
Sensitivity 92dB
-
Frequency range 110-4000Hz
-
Voice coil diameter 44mm/1.75in
-
Chassis type Cast Aluminium
-
Magnet type Ferrite
-
Magnet weight 0.88kg/31oz
-
Coil material Edgewound copper clad aluminium
-
Former material Glass fibre
-
Cone material Kevlar loaded paper
-
Surround material Cloth-sealed
-
Suspension Single
-
Xmax 2mm/0.08in
-
Gap depth 6mm/0.24in
-
Voice coil winding width 10mm/0.4in
