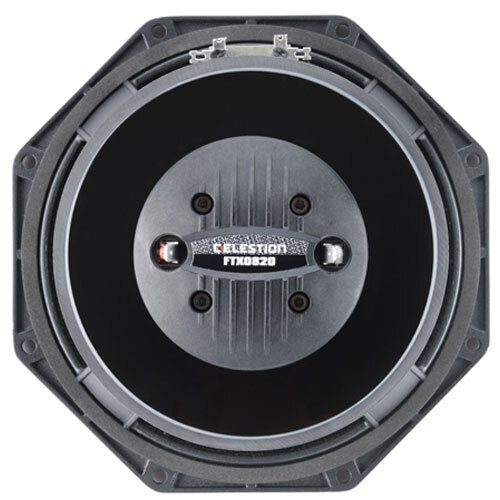

8" coaxial loudspeaker providing 200Wrms (AES standard) power handling and 94dB sensitivity.
Full range frequency response: 70 – 20,000Hz.
Robust cast aluminium chassis is designed to minimize unwanted reflections, further reducing acoustic distortion.
Features:
-
Nominal diameter 200mm/8in
-
Power rating 200Wrms
-
Nominal impedance 8O
-
Sensitivity 94dB
-
Frequency range 70-4000Hz
-
Voice coil diameter 50mm/2in
-
Chassis type Cast Aluminium
-
Magnet type Ferrite
-
Magnet weight 1.5kg/54oz
-
Coil material Edgewound copper
-
Former material Glass fibre
-
Cone material Kevlar loaded paper
-
Surround material Cloth-sealed
-
Suspension Single
-
Xmax 2mm/0.08in
-
Gap depth 8mm/0.31in
-
Voice coil winding width 12mm/0.47in
