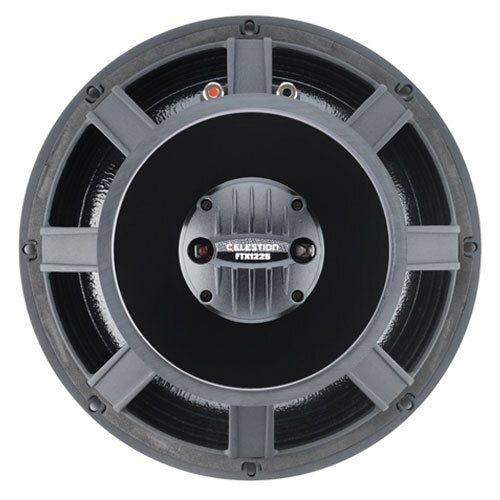

12" coaxial loudspeaker with 300Wrms (AES standard) power handling and 97dB sensitivity.
Full range frequency response: 50 – 20,000Hz.
Robust cast aluminium chassis is designed to minimize unwanted reflections, further reducing acoustic distortion.
Features:
-
Nominal diameter 305mm/12in
-
Power rating 300Wrms
-
Nominal impedance 8O
-
Sensitivity 97dB
-
Frequency range 50-4000Hz
-
Voice coil diameter 64mm/2.5in
-
Chassis type Cast Aluminium
-
Magnet type Ferrite
-
Magnet weight 2.3kg/81oz
-
Coil material Edgewound copper clad aluminium
-
Former material Glass fibre
-
Xmax 4mm/0.16in
-
Gap depth 8mm/0.31in
-
Voice coil winding width 16mm/0.62in
Includes:
