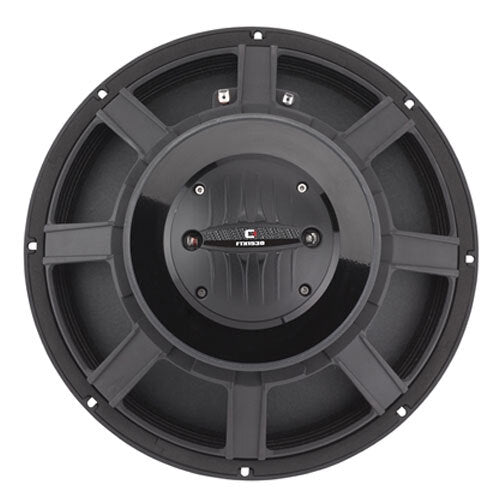

Ferrite magnet assembly acts as common motor for both LF and HF.
Titanium HF diaphragm.
Features:
-
Size approx.: 381mm
-
Power rating 400Wrms
-
Continuous power rating 800W
-
Nominal impedance 8O
-
Sensitivity 97dB
-
Frequency range 40-4,000Hz
-
Voice coil diameter 75mm/3in
-
Chassis type Cast Aluminium
-
Magnet type Ferrite
-
Magnet weight 2.3kg/81oz
-
Coil material Edgewound copper clad aluminium
-
Former material Glass fibre
-
Cone material Kevlar loaded paper
-
Surround material Cloth-sealed
-
Suspension Single
-
Gap depth8mm/0.31in
-
Voice coil winding width16mm/0.63in
