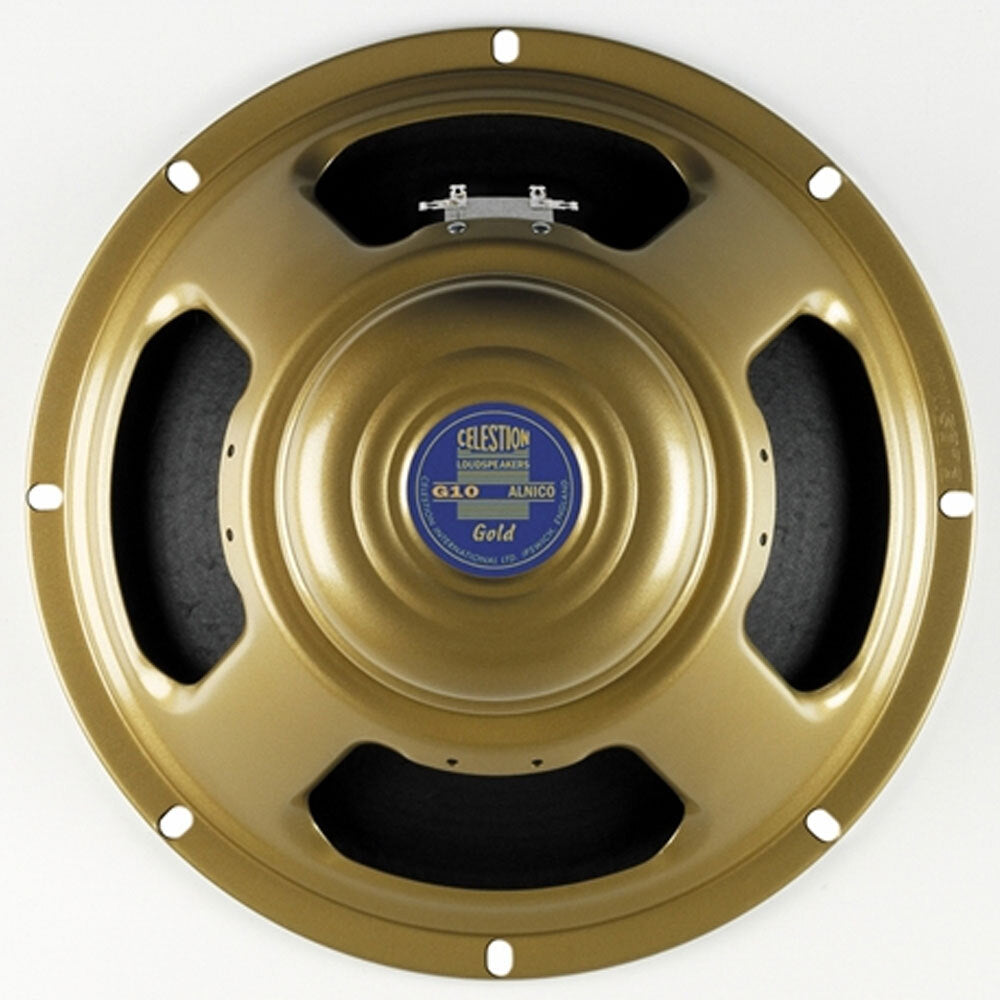

The G10 Gold is the ultimate 10" speaker, blending unmistakable Alnico class with a rich low-end, creamy midrange and vintage chiming top-end.
Springy, warm, revealing and highly expressive, it can be used singly or in pairs to add a classy sheen to any amp, or in a 4x10 configuration for higher volume depth, warmth and shimmer, with less of the boom associated.
Features:
-
DC resistance, re 6.66? and 13.56?
-
Frequency range 80-6000Hz
-
Magnet type Alnico
-
Nominal diameter 10", 254mm
-
Power rating 40Wrms
-
Resonance frequency, Fs80Hz
-
Sensitivity 98dB
-
Voice coil diameter 1.75", 44.5mm
-
Voice coil former material Round copper
-
Mounting Information
-
Cut-out diameter 9.0", 229mm
-
Diameter 5.3", 135mm
-
Magnet structure diameter 4.7", 119mm
-
Mounting slot dimensions 0.25", 6.5mm Ø
-
Mounting slot PCD 9.6", 244mm
-
Number of mounting slots 8
-
Overall depth 5.3", 135mm
-
Unit weight 6.0lb, 2.7kg
