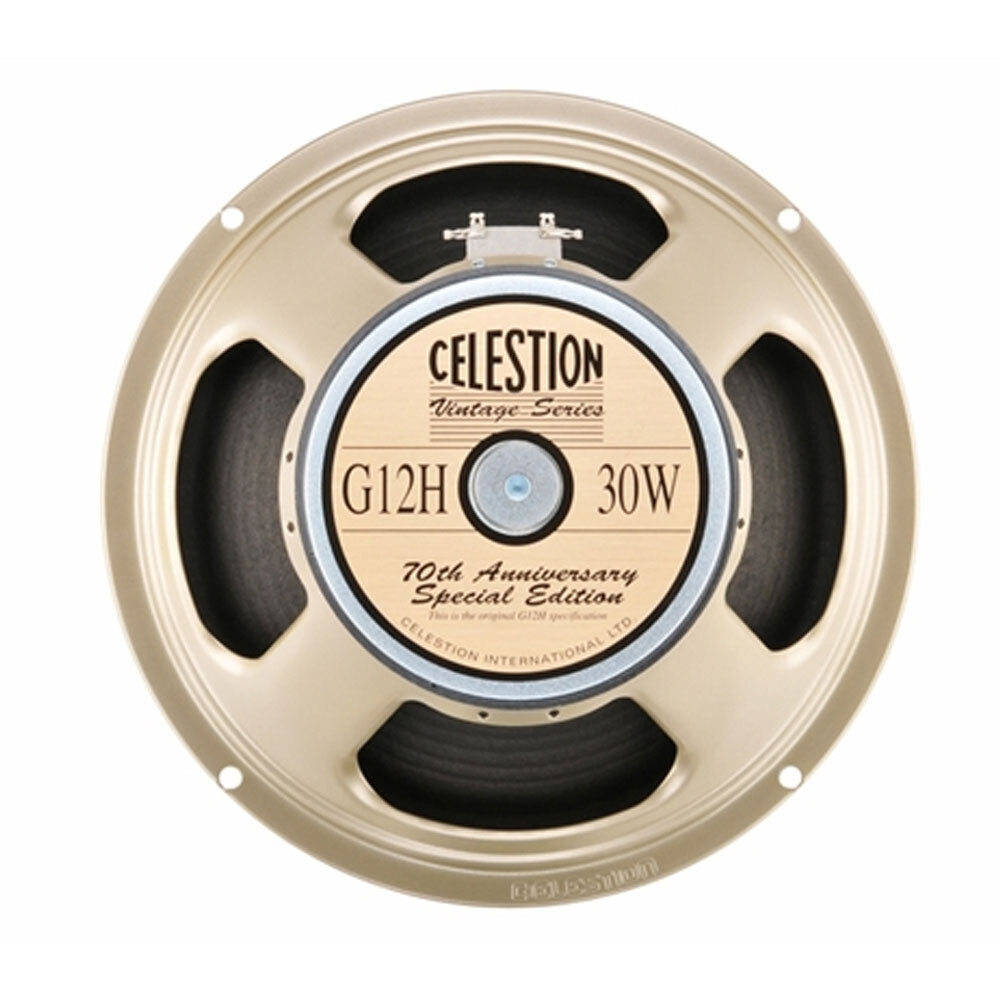

Loud and proud thanks to its heavy magnet structure, the G12H provides a fusion of the Vintage 30 and the Greenback characteristics, producing a thick, warm and syrupy sound while still retaining a tight and focused bottom end.
When played clean, the speaker remains clear and musical without ever sounding harsh. In overdrive, pick attack is vividly articulated with sustained notes trailing off into warm harmonic tones.
Features:
-
Frequency range 75-5000Hz
-
Magnet type Ceramic
-
Magnet weight 50oz, 1.42kg
-
Nominal diameter 12", 305mm
-
Nominal impedance: 8om
-
Power rating 30Wrms
-
Resonance frequency, Fs 85Hz
-
Sensitivity 100dB
-
Voice coil diameter 1.75", 44.5mm
-
Voice coil material Round copper
-
Mounting Information
-
Cut-out diameter 11.1", 283mm
-
Diameter 12.2", 309mm
-
Magnet structure diameter 6.1", 156mm
-
Mounting slot dimensions 0.31", 7.9mm Ø
-
Mounting slot PCD 11.7", 297mm
