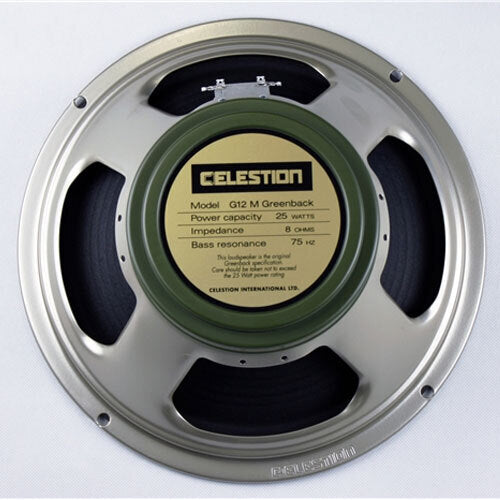

Celestion's first guitar loudspeaker featuring a ceramic magnet structure, the G12M Greenback presented almost as much magnetic flux to the voice coil as an Alnico formulation, but in a much more compact space.
As a result the Greenback became the guitar loudspeaker that paved the way for use with higher power amplifiers. And, of course, the ceramic magnet presented its own unique tonal characteristics.
Features:
-
Magnet type Ceramic
-
Magnet weight 35oz, 0.99kg
-
Nominal diameter 12", 305mm
-
Power rating 25Wrms
-
Resonance frequency, Fs 75Hz
-
Sensitivity 98dB
-
Voice coil diameter 1.75", 44.5mm
-
Voice coil material Round copper
-
Mounting Information
-
Cut-out diameter 11.1", 283mm
-
Diameter 12.2", 309mm
-
Magnet structure diameter 5.9", 150mm
-
Mounting slot dimensions 0.31", 7.9mm Ø
-
Mounting slot PCD 11.7", 297mm
-
Number of mounting slots 4
-
Overall depth 5.1", 130mm
-
Unit weight 7.9lb, 3.6kg
