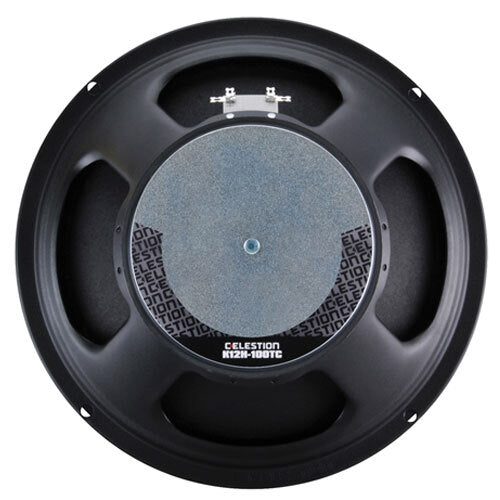

12" twin cone drive unit with extended high frequency response.
1.75" high temperature copper voice coil for increased reliability and 100Wrms (AES standard) power handling.
Optimised cone neck/voice coil assembly for increased strength, minimising high frequency distortion and improving sound quality.
Features:
-
Nominal diameter 305mm/12in
-
Power rating 100Wrms
-
Nominal impedance 8O
-
Sensitivity 97dB
-
Frequency range 50-10,000Hz
-
Voice coil diameter 45mm/1.75in
-
Chassis type Pressed steel
-
Magnet type Ferrite
-
Magnet weight 1.41kg/50oz
-
Coil material Round copper
-
Former material Kapton
-
Cone material Kevlar loaded paper
-
Surround material Cloth-sealed
-
Suspension Single
-
Xmax 1mm/0.04in
-
Gap depth 8mm/0.31in
-
Voice coil winding width 10mm/0.39in
