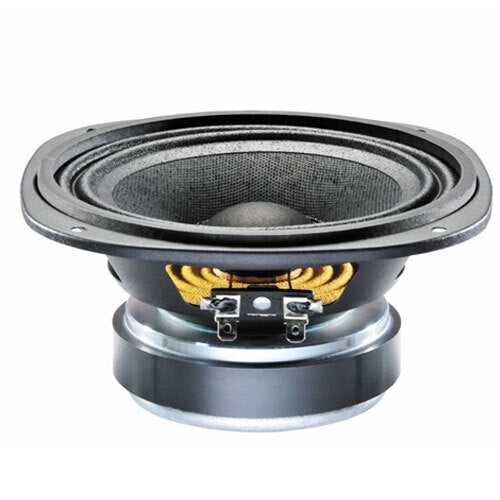

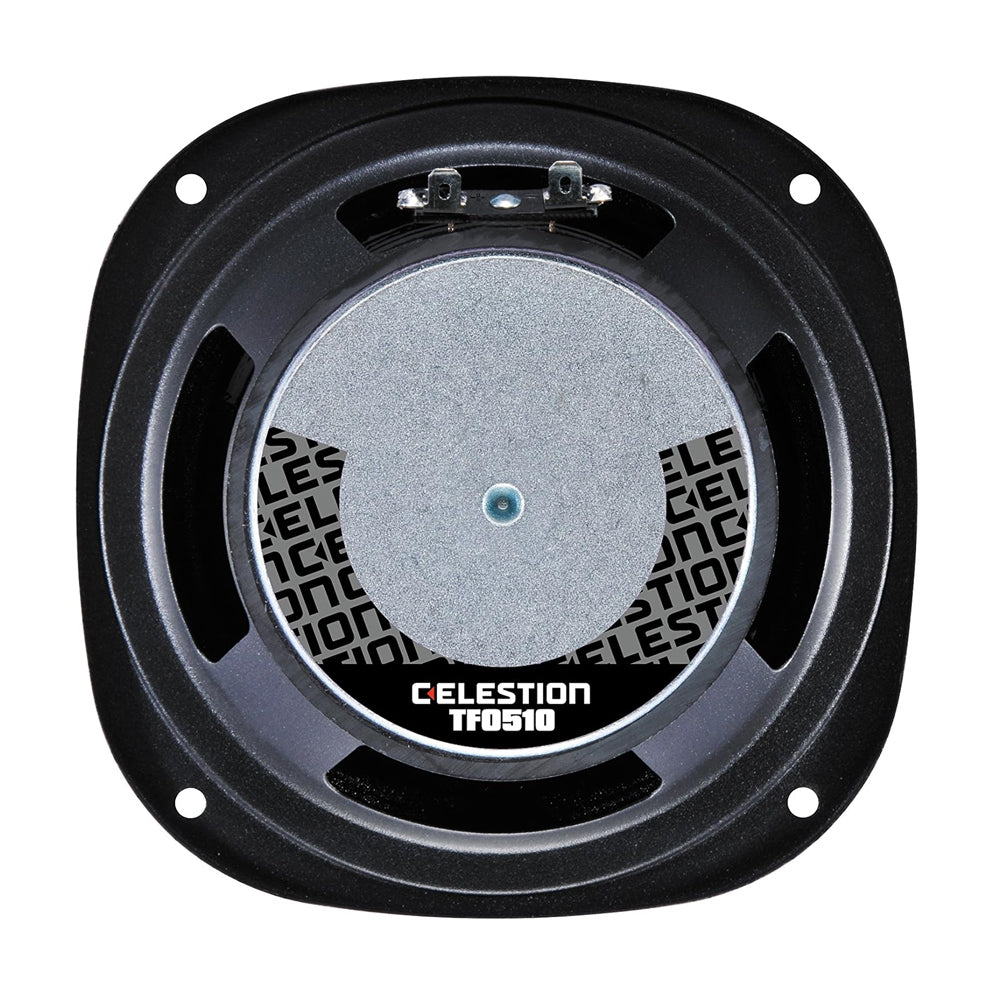

Multi-purpose 5" drive unit delivering clear bass and mid frequencies.
Provides 91dB sensitivity and 30Wrms (AES standard) power handling.
1" high temperature copper voice coil wound on polyimide former for increased reliability.
Ideal for use in multiple speaker systems: as LF driver in 2-way systems, as MF driver in 3-way systems.
Features:
-
30W
-
Nominal impedance 8O
-
Sensitivity 91dB
-
Frequency range 130-8000Hz
-
Voice coil diameter 25mm/1in
-
Chassis type Pressed steel
-
Magnet type Ferrite
-
Magnet weight 0.37kg/13oz
-
Coil material Round copper
-
Former material Polyimide
-
Cone material Kevlar loaded paper
-
Surround material Cloth-sealed
-
Suspension Single
-
Xmax 1.1mm/0.04in
-
Gap depth 5mm/0.20in
-
Voice coil winding width 7.3mm/0.29in
