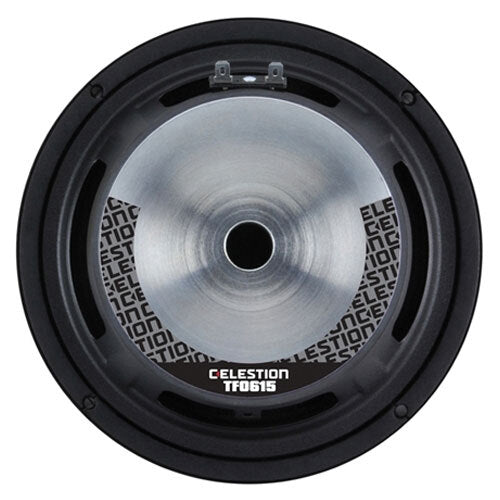

6" mid-range driver providing 95dB sensitivity and 100Wrms (AES standard) power handling.
1.5" high temperature copper voice coil wound on polyimide former for increased reliability.
Rigid chassis design for maximum energy transfer.
Vented magnet assembly for enhanced cooling.
Achieves optimal performance in compact enclosures.
Ideal for 2-way systems.
Features:
-
Nominal diameter 152mm/6in
-
Power rating 100Wrms
-
Nominal impedance 8O
-
Sensitivity 95dB
-
Frequency range 85-6000Hz
-
Voice coil diameter 38mm/1.5in
-
Chassis type Pressed steel
-
Magnet type Ferrite
-
Magnet weight 0.8kg/17oz
-
Coil material Round copper
-
Former material Polyimide
-
Cone material Kevlar loaded paper
-
Surround material Cloth sealed
-
Suspension Single
-
Xmax 2.5mm/0.1in
-
Gap depth 6mm/0.24in
-
Voice coil winding width 6.5mm/0.26in
