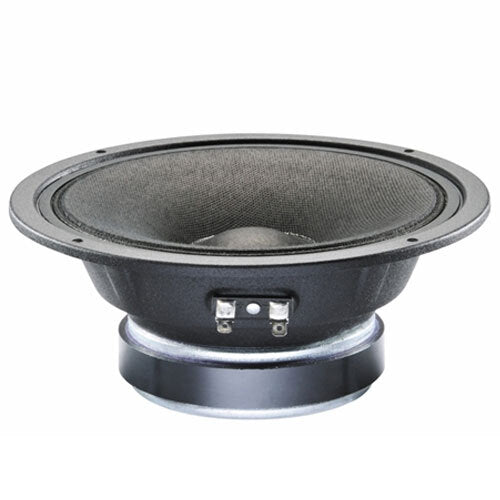

6" mid-range driver providing 97dB sensitivity and 50Wrms (AES standard) power handling.
1.5" high temperature copper voice coil wound on polyimide former for increased reliability.
Very compact model suitable for use in 3-way systems.
Optimised to deliver detailed reproduction of mid-range frequencies.
Closed back chassis simplifies cabinet manufacture, eliminating need for separate mid-range enclosure.
Features:
-
Chassis type Pressed steel
-
Coil material Round copper
-
Cone material Kevlar loaded paper
-
Former material Polyimide
-
Frequency range 500-5000Hz
-
Magnet type Ferrite
-
Magnet weight 0.48kg/17oz
-
Nominal diameter 152mm/6in
-
Nominal impedance 8O
-
Power rating 50Wrms
-
Sensitivity 97dB
-
Surround material Treated paper
-
Suspension Single
-
Voice coil diameter 38mm/1.5in
