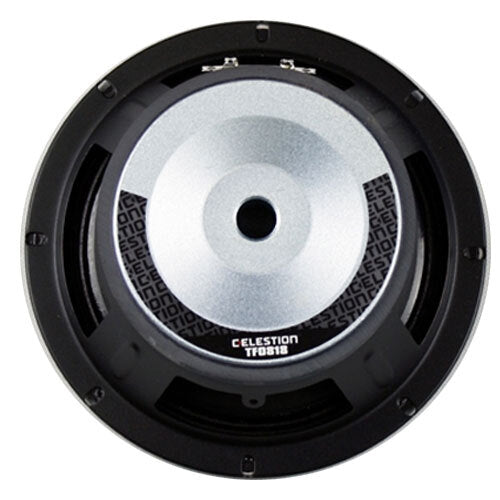

8" driver providing 94dB sensitivity and 100Wrms (AES standard) power handling.
1.75" high temperature copper voice coil wound on polyimide former for increased reliability.
Achieves optimal performance in compact enclosures.
Exceptional performance through bass and mid-range.
Features:
-
Ideal for 2-way systems
-
Nominal diameter 203mm/8in
-
Power rating 100Wrms
-
Nominal impedance 8O
-
Sensitivity 94dB
-
Frequency range 70-6000Hz
-
Voice coil diameter 45mm/1.75in
-
Chassis type Pressed steel
-
Magnet type Ferrite
-
Magnet weight 0.88kg/31oz
-
Coil material Round copper
-
Former material Polyimide
-
Cone material Kevlar loaded paper
-
Surround material Cloth-sealed
-
Suspension Single
-
Xmax 3.5mm/0.14in
-
Gap depth 6mm/0.24in
-
Voice coil winding width 13mm/0.51in
