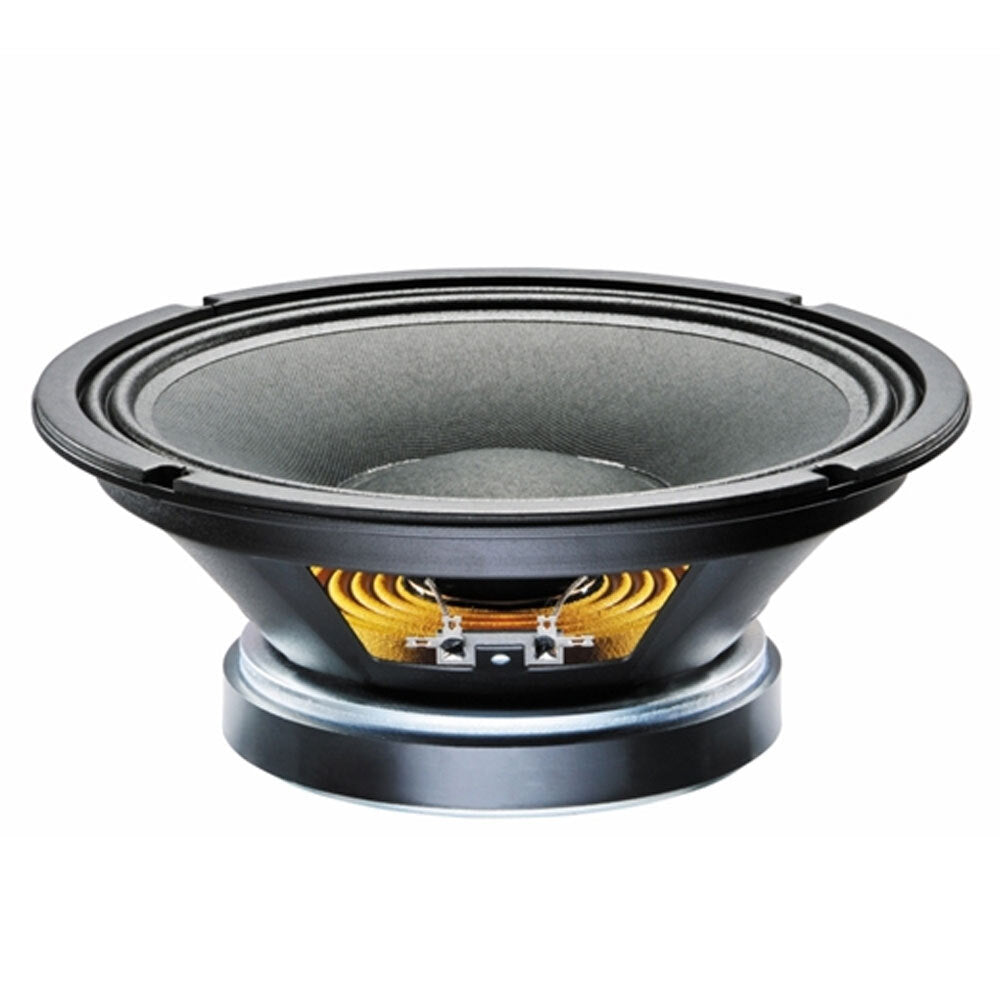

10" bass and mid-range driver provides 97dB sensitivity and 150Wrms (AES standard) power handling.
2" High temperature copper voice coil wound on polyimide for increased reliability.
Ideally suited to compact enclosures and high pass systems.
Rigid chasis design for maximum energy transfer.
Features:
-
Power rating 150Wrms
-
Nominal impedance 8O
-
Sensitivity 97dB
-
Frequency range 60-3000Hz
-
Voice coil diameter 50mm/2in
-
Chassis type Pressed steel
-
Magnet type Ferrite
-
Magnet weight 1.2kg/42oz
-
Coil material Round copper
-
Former material Polyimide
-
Cone material Kevlar loaded paper
-
Surround material Cloth-sealed
-
Suspension Single
-
Xmax 2mm/0.08in
-
Gap depth 8mm/0.31in
-
Voice coil winding width 12mm/0.47in
