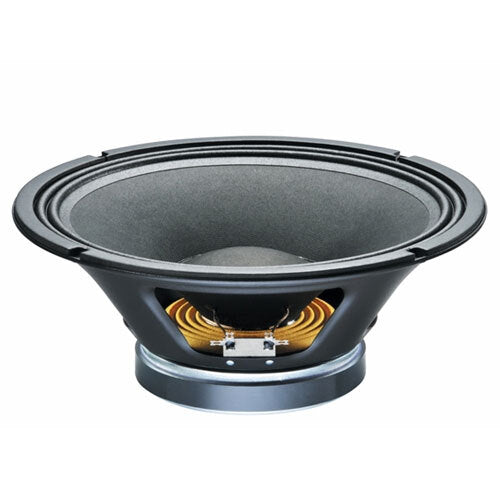

12" Bass and mid-range driver with extended low frequency response.
2.5" edgewound voice coil provides 96dB sensitivity and 300Wrms (AES standard) power handling.
Kevlar-loaded cone with sealed surround and damping for reduced distortion.
Double roll surround for greater excursion control.
Suitable for use in 2-way and compact 3-way systems.
Features:
-
Nominal diameter 305mm/12in
-
Power rating 300Wrms
-
Nominal impedance 8O
-
Sensitivity 96dB
-
Frequency range 50-3000Hz
-
Voice coil diameter 64mm/2.5in
-
Chassis type Pressed steel
-
Magnet type Ferrite
-
Magnet weight 1.4kg/50oz
-
Coil material Edgewound copper
-
Former material Polyimide
-
Cone material Kevlar loaded paper
-
Surround material Cloth-sealed
-
Suspension Single
-
Xmax 3.5mm/0.14in
-
Gap depth 8mm/0.31in
-
Voice coil winding width 14.5mm/0.57in
