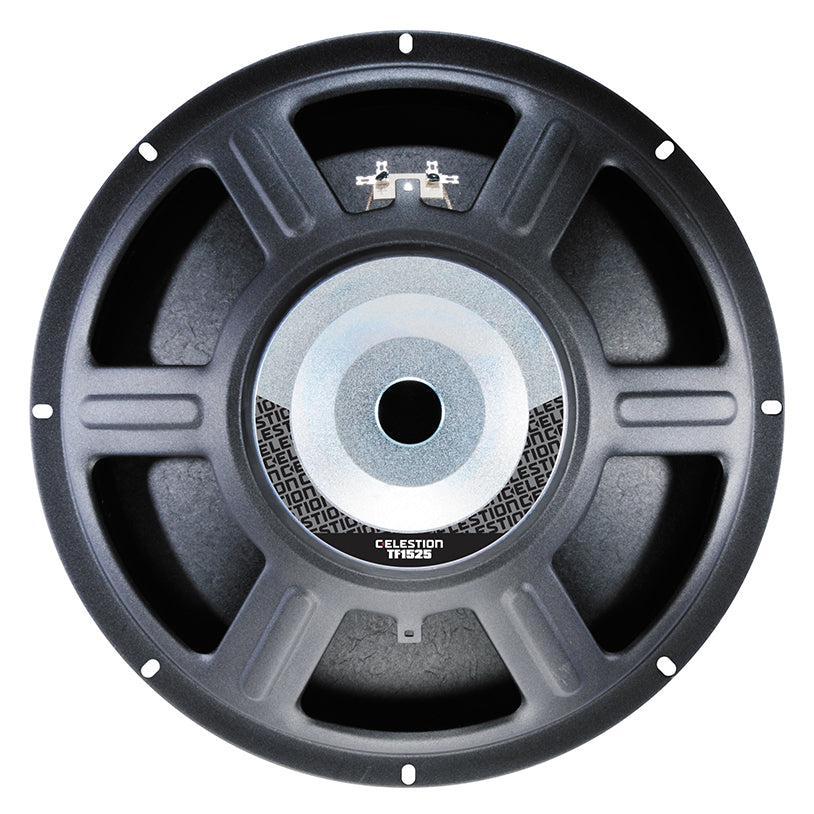

15" driver provides extended low frequency range.
2.5" edgewound voice coil enables 97dB efficiency and 300Wrms (AES standard) power handling.
Vented magnet assembly for enhanced cooling.
Features:
Nominal diameter 381mm/15in
Power rating 250Wrms
Nominal impedance 8O
Sensitivity 98dB
Frequency range 40-3000Hz
Voice coil diameter 64mm/2.5in
Chassis type Pressed steel
Magnet type Ferrite
Magnet weight 1.2kg/42oz
Coil material Round copper
Former material Polyimide
Cone material Kevlar loaded paper
Surround material Cloth-sealed
Suspension Single
Xmax 2.5mm/0.1in
Gap depth 8mm/0.31in
Voice coil winding width 13mm/0.51in
