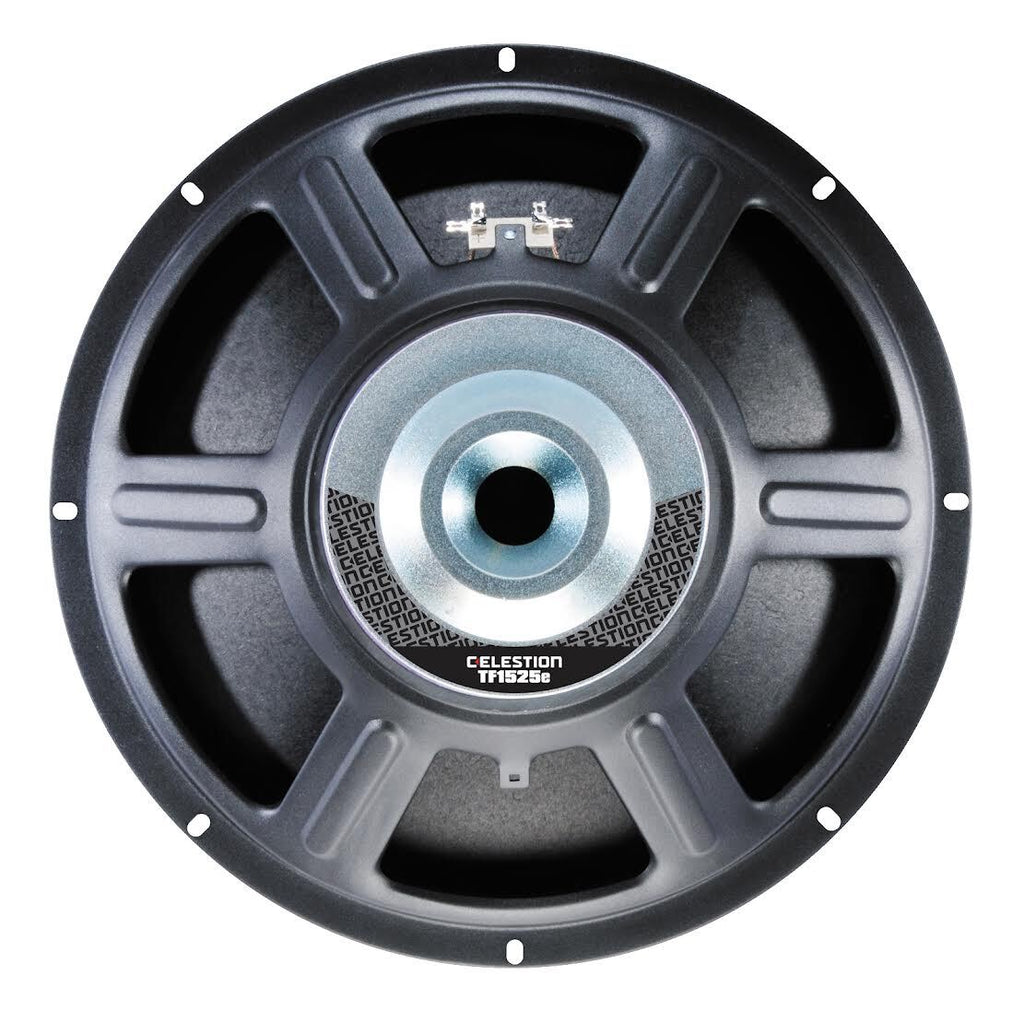

15" driver provides extended low frequency range.
2.5" edgewound voice coil enables 97dB efficiency and 300Wrms (AES standard) power handling.
Features:
-
Vented magnet assembly for enhanced cooling
-
Kevlar-loaded cone with sealed surround and damping for reduced distortion
-
Suitable for use in 2-way and 3-way systems
-
Nominal impedance 4O
-
Sensitivity 97dB
-
Frequency range 45-3500Hz
-
Voice coil diameter 64mm/2.5in
-
Chassis type Pressed steel
-
Magnet type Ferrite
-
Magnet weight 1.4kg/50oz
-
Coil material Edgewound copper
-
Former material Glass fibre
-
Cone material Kevlar loaded paper
-
Surround material Cloth-sealed
-
Suspension Single
-
Xmax 3.5mm/0.14in
-
Gap depth 8mm/0.31in
-
Voice coil winding width 14.5mm/0.57in
