Doss Dual CH UHF PLL Wireless Handheld Mic System w/ 2xMicrophone Kit Black
Dual Channel PLL Wireless System

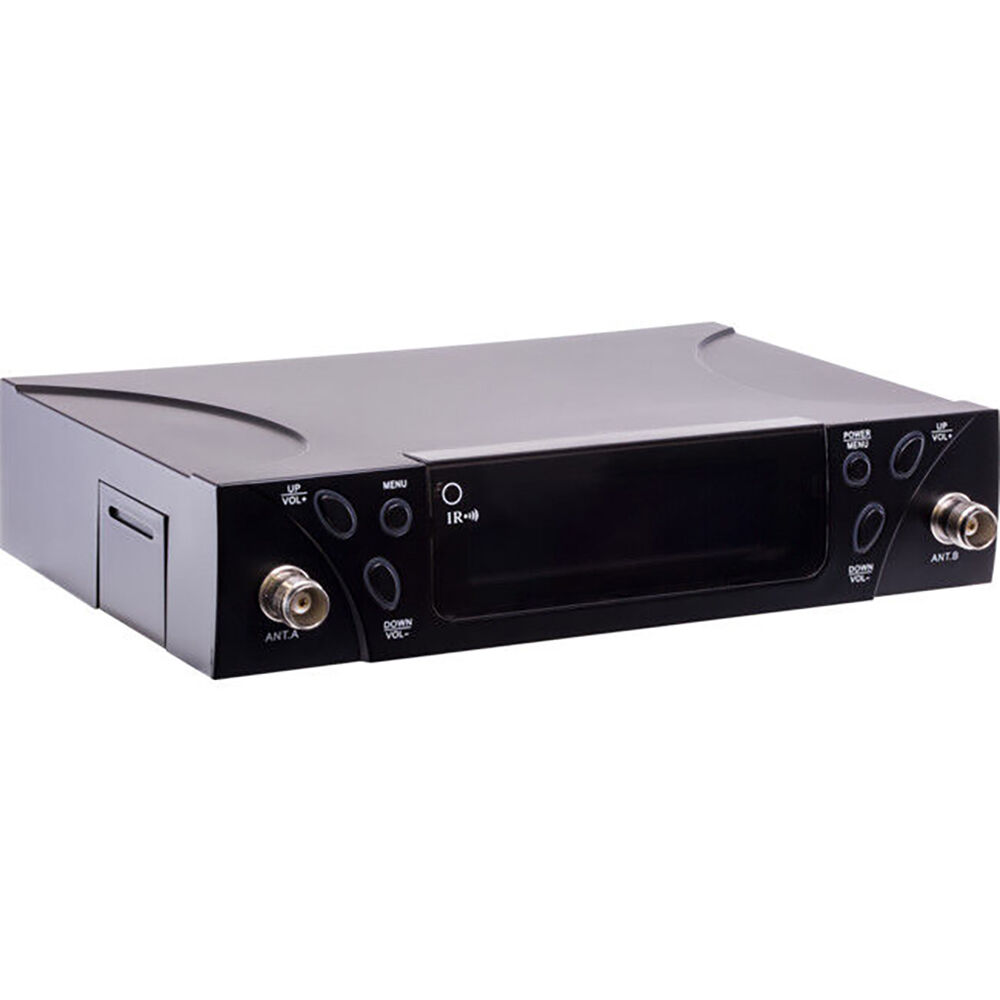

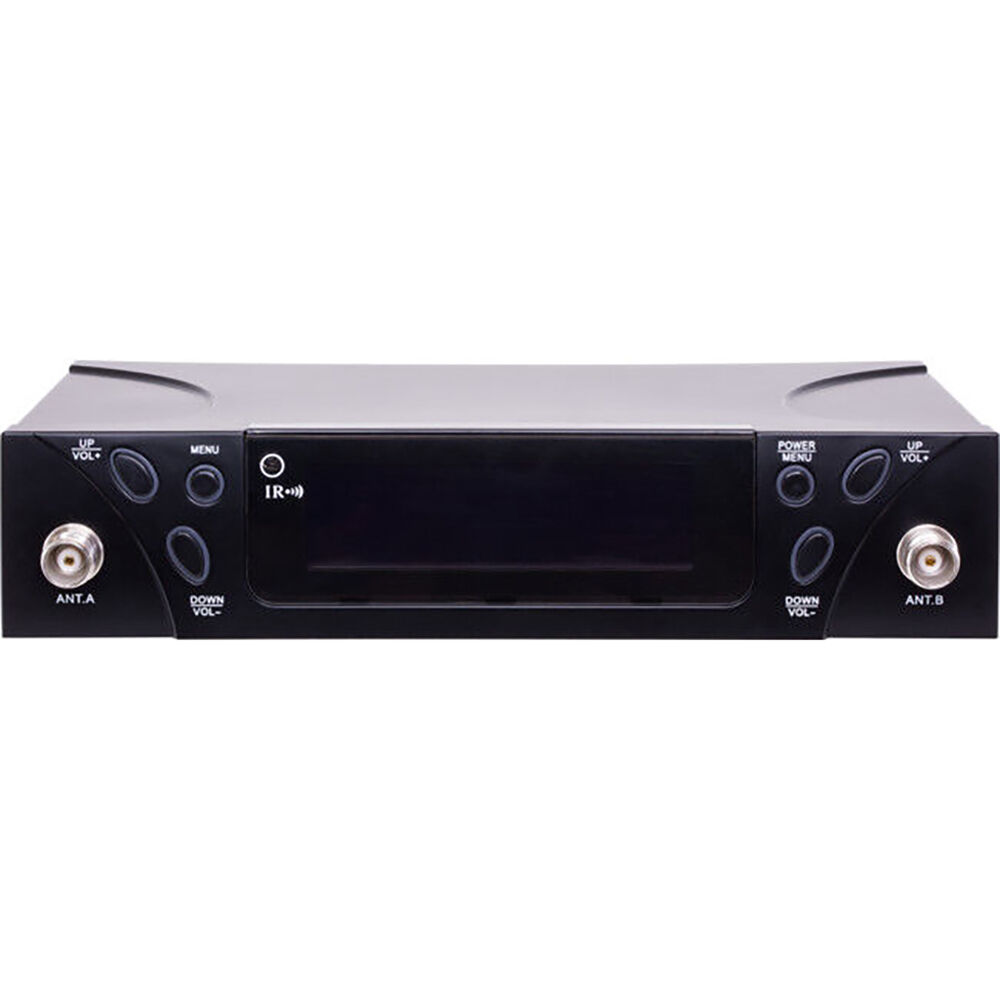

Dual Channel Professional Receiver - Diversity
- Tone control squelch
- Working range adjustable
- LCD display
- 1600 channel selectable
- Group and channel selectable
- Smart option (Infrared SYNC)
Match with Stage Professional Handheld Microphone
- Adopting unidirectional condenser element, it createssuperb isolation and unsurpassed gain-before-feedback effect, optimized for vocal and speaking performances.
- Convenient multi-channel selector. You can choose the best frequency from the hundreds available forthe best performance effect.
- Noise absorption design eliminates external and handing noise completely.
- Elegant steel grille provides durable protection to its own shape and element.
- Durable structure modular design is easy for assembly and detachment, especially convenient to after-sales service.
- Low battery consumption, Adopting two 1.5V AA batteries, it works a longer time than expected.
Match with Body Pack Transmitter
- Innovated design of the body-pack transmitter can be matched with lavalier, headset or instrument connector, providing another option besides handheld microphone; further more, it sets your hand free!
- Professional TA4F connector prevents the connector from dropping off and creating unwanted noise.
- Low battery consumption. Adopting two 1.5V AA batteries, it works a longer time than expected.
SPECIFICATIONS
OVERALL SYSTEM
Carrier Frequency Range: UHF 654-694MHz
Stability: ±0.005%
Normal Deviation: ±35 KHz
Max Deviation: ±80KHz
S/N Ratio: <-110dB
T.H.D: <0.5%
Squelch: Tone control and noise lock dual squelch
Frequency Response: 30Hz - 20KHz
Operating Range: 100m(approximately 300 feet under typical conditions)
Receiver

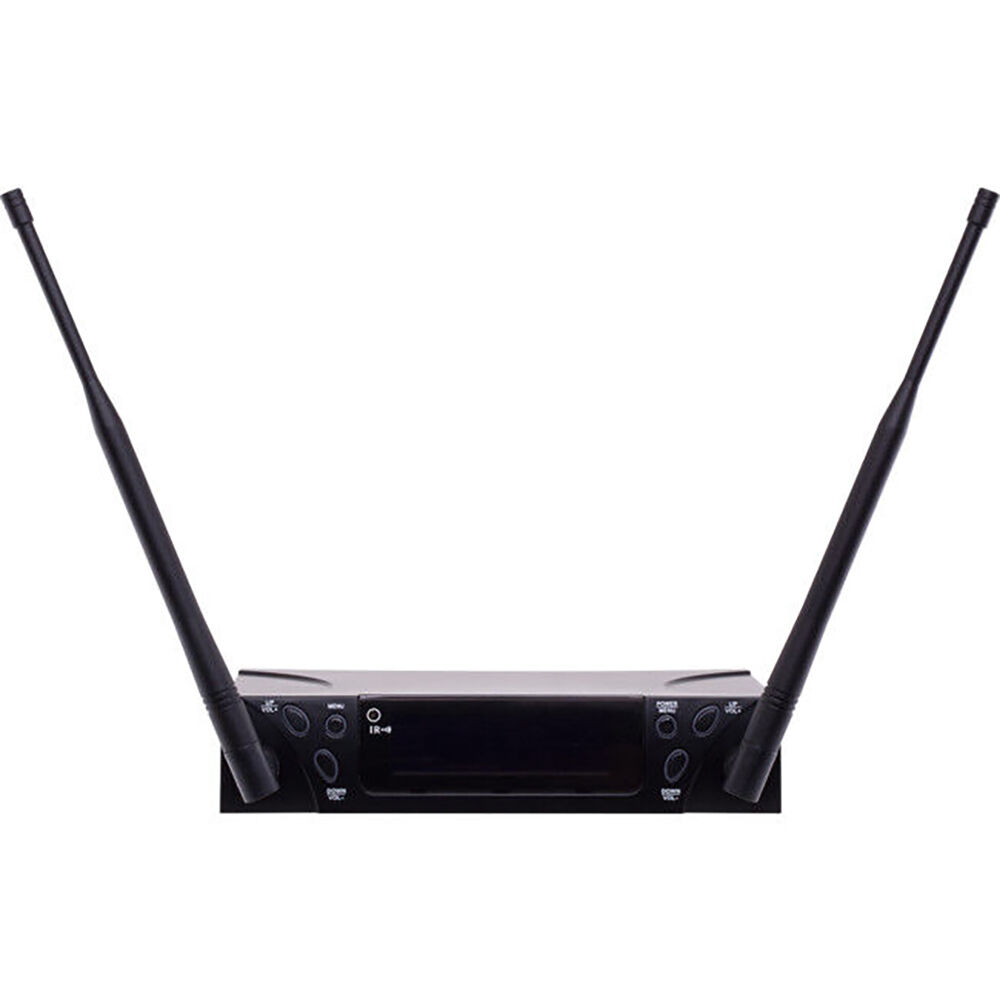

Receiving Mode: PLL Diversity (Dual Antenna)
Sensitivity: >-107dB
Image Rejection: Over 90dB

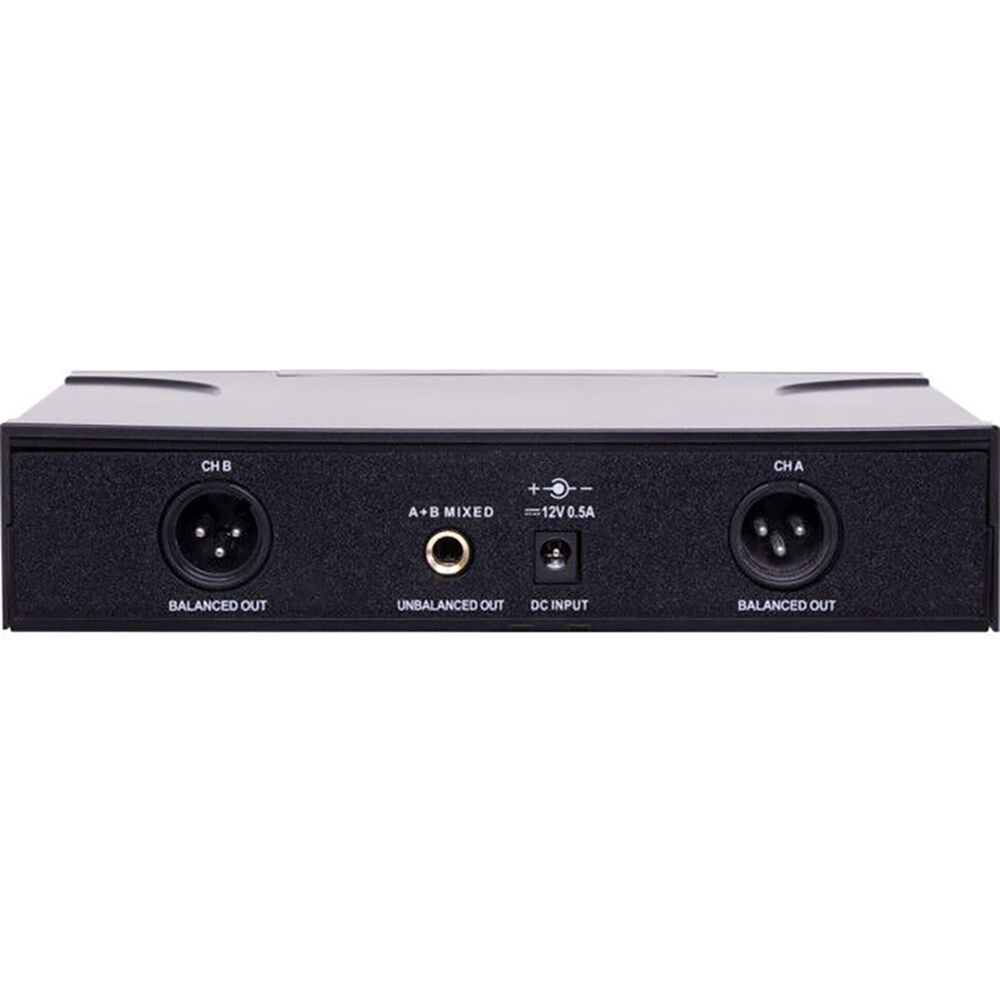

Audio Output: Balanced and Unbalanced
Power Requirement: AC 110-120V/220-240V
(50-60) External DC 12V 500mA
Dimensions (W x D x H): 240 x 130 x 42mm
Net Weight: Approx. 1.5kg
Wireless Microphone
Cartridge: Dynamic
Antenna: Built-in
RF Output: <10mW
Spurious Emissions: <45dBc
Normal Deviation: ±35KHz
Maximum Deviation: ±80 KHz
Battery: Two 1.5V AA battery or 1.2V AA rechargeable battery
Battery Life: >8 Hours
Includes:
1 x Microphone System Kit
