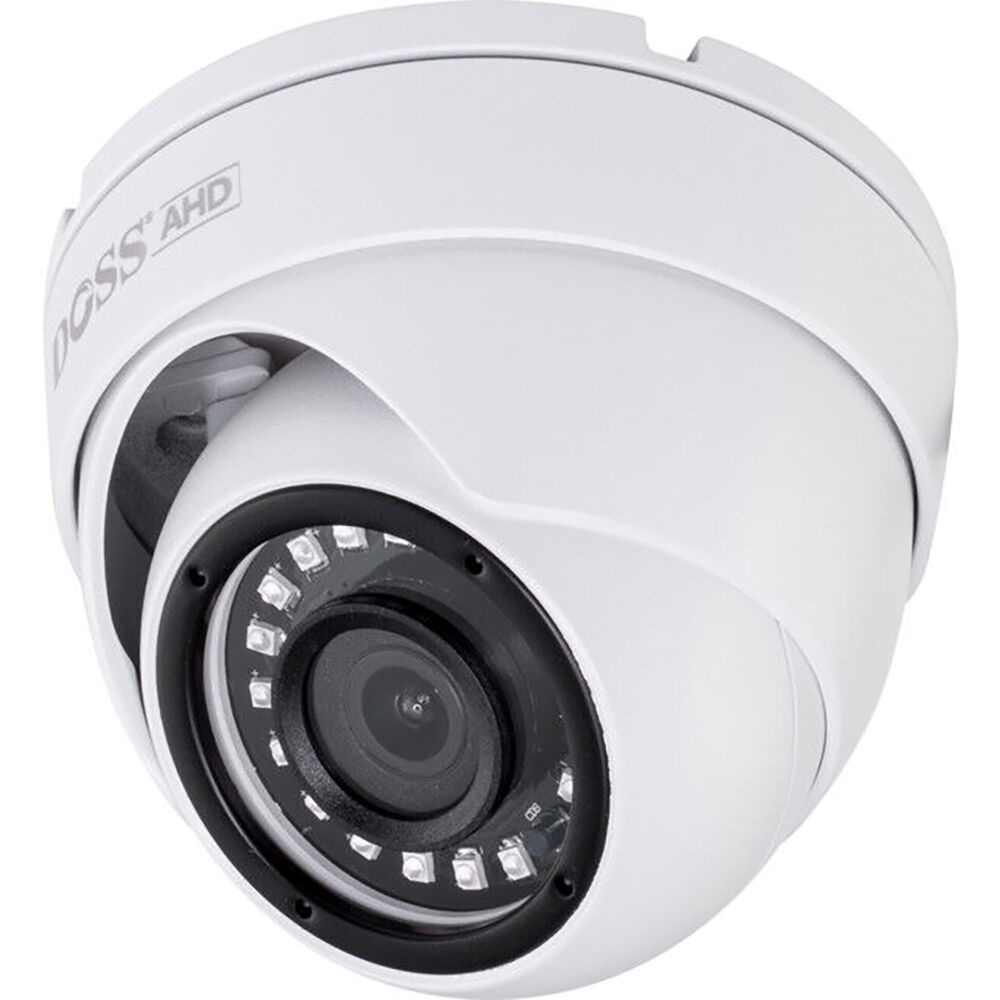

Doss 5MP 4-in-1 3.6mm Lens Dome Camera Home Surveillance CCTV IP66 White
Features

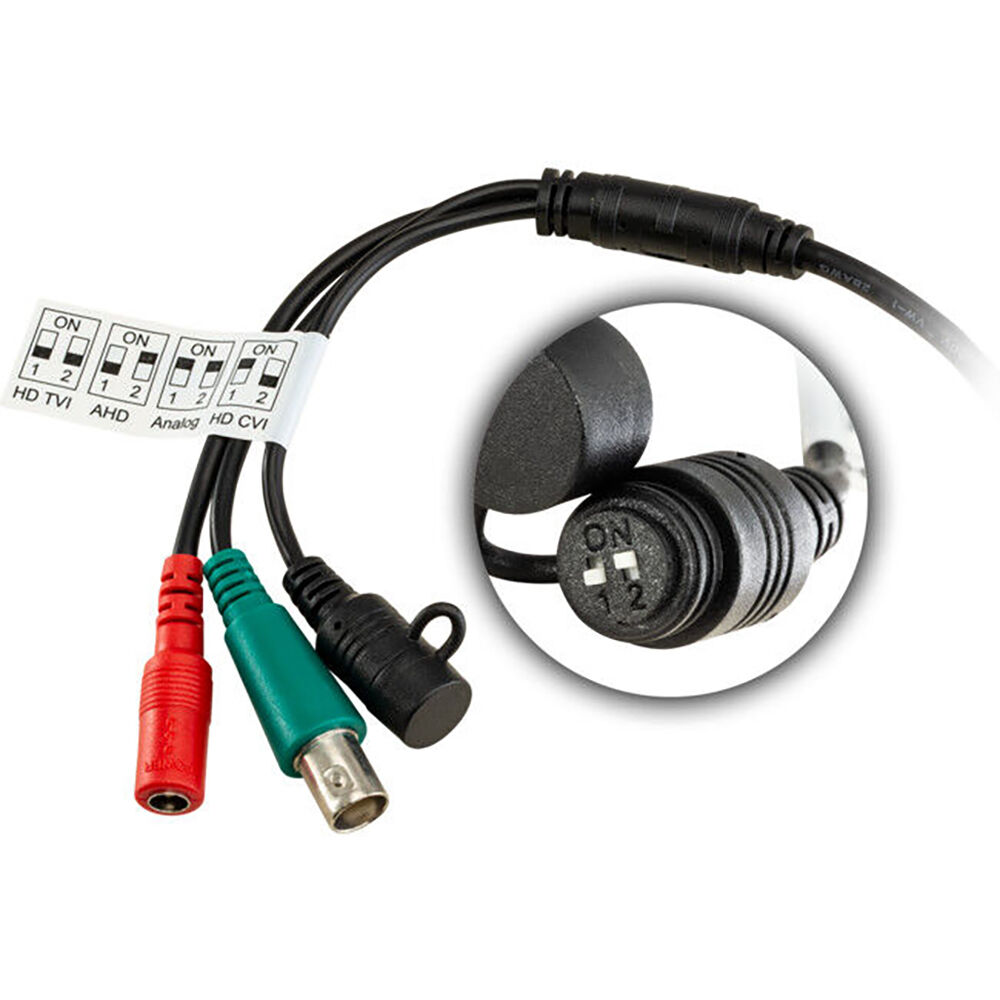

This 4 in 1 AHD, TVI-HD, CVI-HD, CVBS camera is compatible with the Hybrid HD or analog DVR. With the dip switch built-in to the OSD cable, easy to switch to 4 different output modes.
- Up to 5MP high-resolution video quality
- Adopt low illumination1/2.7" 5MP CMOS image sensor
- 3.6mm fix lens
- IR Distance: 15-20m/18x SMT IR LEDs
- HD AHD/TVI 5MP@20/12.5fps, 4MP@30/25/15fps, 1080P25/30fps
- CVBS 960H PAL/NTSC
- Small and compact size
- D-WDR, 3D NR supported
- Auto Day&Night, IR Cut (Infrared-cut) filterS for producing accurate color images
- IP66 Rating
- Support UTC Function via the DVR, OSD menu setting, which includes AE, AWB, Day-Night, Image-Enhancement, Video Output Language, and Reset
Specifications
Sensor | 1/2.7" 5 Megapixel CMOS Sensor |
Signal System | NTSC/PAL |
Sync. System | Internal Sync. |
Effective Pixels | 5MP |
Horizontal Resolution | 2560x1944@20/12.5fps |
Lens | 3.6mm fix |
Minimum Illumination | 0 Lux (Infrared led ON) |
Day/Night | Auto, IR Cut filter |
IR Distance | 15-20m/18x SMT IR leds |
OSD Menu | Support(UTC Coaxial control) |
Video Output | HD-AHD/TVI/CVI and CVBS output |
S/N Ratio | More than 50dB(AGC OFF) |
White Balance | Auto White Balance |
Electronic Shutter | 1/25-1/50000 |
Image Adjustment | Contrast, Sharpness, Saturate |
Digital WDR | ON/OFF |
DNR | 3DNR |
| Weather Proof | IP66 |
Working Temperature | -10°C~50°C |
Storage Temperature | -20°C~60°C |

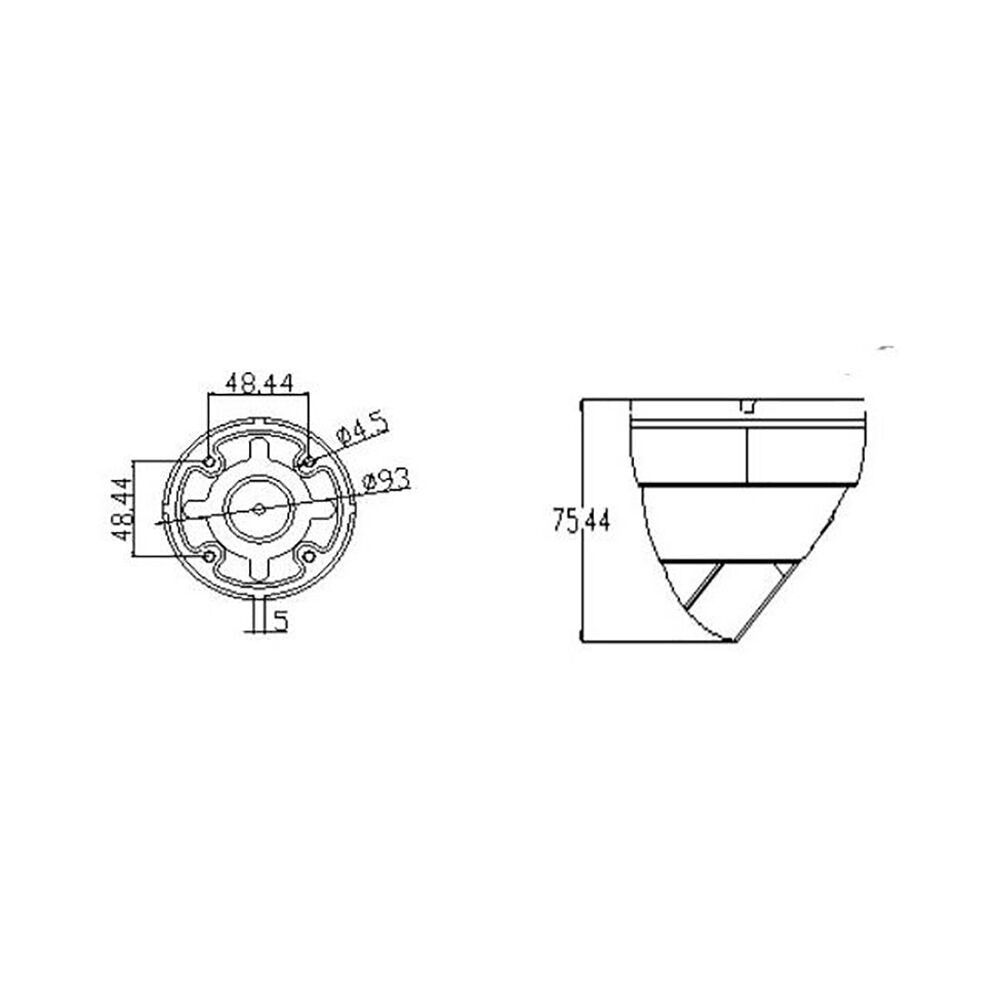

| Size | 93mm (W) x 75mm (H) |
Power Requirement | DC12V/2A |
Includes:
1 x Camera
