Description

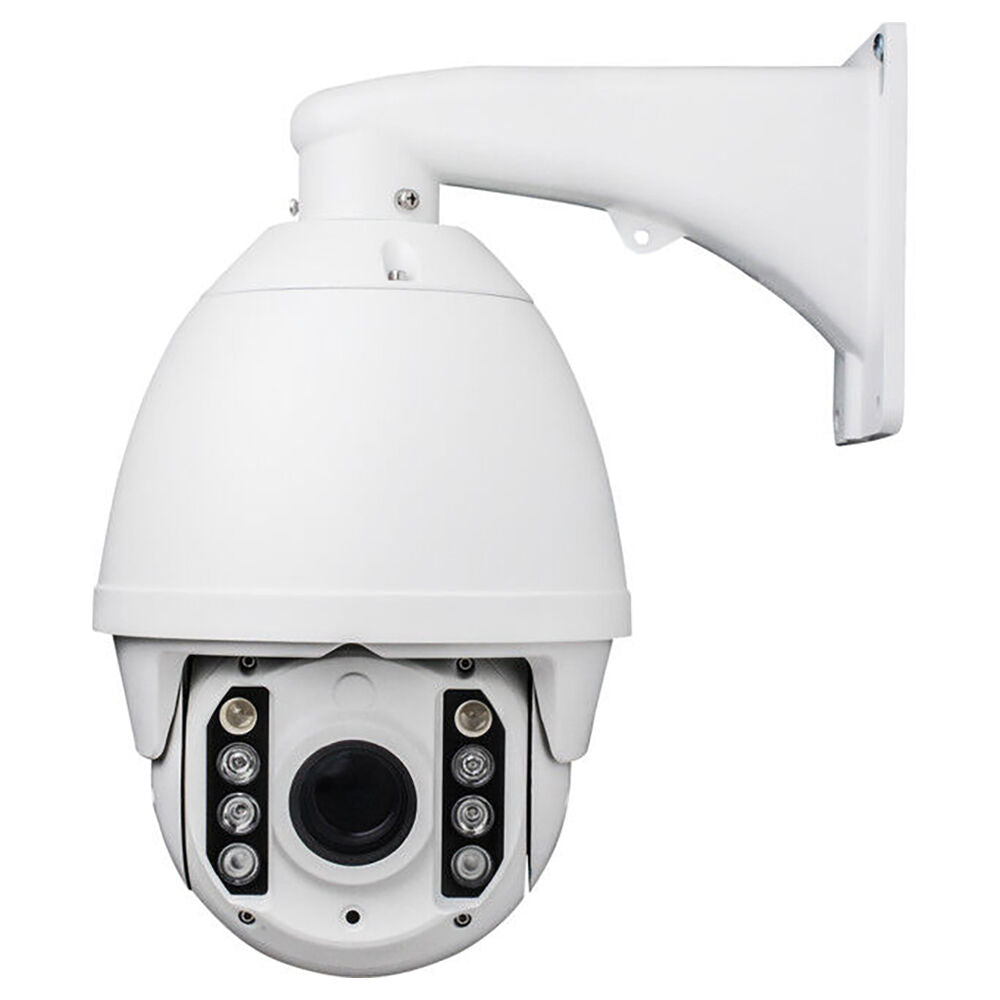

Doss H.265 2MP 6in Dome PTZ Camera 360° Home Surveillance CCTV IP66 White
Features
DOSS DMZ150IPWV3 camera enables you to keep an eye on your territory 24/7! It has a 2MP camera for clear image taking or recording as well as tilt and zoom in functions. The area scan function provides routine scanning of the areas of your choice, non-stop unless you told it to. Easy setup and easy control, powered by POE mean no more hassle for wiring power cable!
Thanks to the Sony Starvis technology, the low light performance will bring your security experience up to another level. Check out the comparison video from the video tab above.
The new version now comes with an optional H.265 encoder feature, which offers massively improved compression over H.264 with the file size and bit rate.
Features
- 1/2.8"Sony 2.13M IMX290 CMOS Sensor
- Max 1920*1080@30fps HD video output
- H.264/H.265/MJPEG encoding
- Low illumination 0.22Lux/F1.6(Color), 0.002Lux/F1.6(B/W), 0 Lux(IR on)
- 23X 2MP UHD optical zoom and 16X digital zoom
- Autofocus lens 4.7mm - 108.1mm
- Support 3DNR, WDR, defog, HLC, anti-shake, etc
- Support 360° pan endless; tilt 0°-90°
- Support manual speed: 0.1°-180°/S, preset:200°/S
- 256 presets, 4 pattern scan, 8 preset cruise
- 3D positioning, privacy mask, PTZ watch
- Smart analysis features; support target counting, objects inspection, area detection, line crossing detection
- 1CH audio input, 1CH audio output
- 2CH alarm input, 1CH alarm output, support alarm linkage
- Support smart IR grouping control, IR distance can reach 120m
- Support max 128G Micro SD card
- Slink, I8H, SDK, ONVIF, API, GB/T28181 protocol
- Lightning Protection, surging prevention, anti-surge, IP66 protection level
The STARVIS is back-illuminated pixel technology developed by Sony used in CMOS image sensors for surveillance camera applications. It features a sensitivity of 2000 mV or more per 1 µm2(colour product, when imaging with a 706 cd/m2light source, F5.6 in 1 s accumulation equivalent), and realizes high picture quality in the visible-light and near infrared light regions.
Find more info from here: https://www.sony-semicon.co.jp/e/products/I S/security/technology.html
Please note: This camera can use up to 36W via PoE+. If you're planning to use an NVR to supply PoE power for one or more of these cameras plus any other IP camera, make sure your NVR has enough PoE power to cope with the total load. If in doubt, please use an external PoE+ injector, PoE+ switch or take advantage of the AC/DC direct powering options.
What is in the box?
- DMZ150IPWV3 x 1
- Wall mount bracket x 1
- Screw bag x 1
- CD x 1
- Glove x 2
Specifications
| Zoom module | |
| Image sensor | 1/2.8"Sony 2.13M CMOS Sensor |
| Min. illumination | Color: 0.02 Lux@F1.6; B/W: 0.002Lux@F1.6, 0Lux(IR ON) |
| Effective pixels | 2MP |
| Resolution | More than 1000TVL |
| Optical zoom | 23X |
| Digital zoom | 16X |
| Focal lense | f=4.7mm~108.1mm |
| Iris | F1.5(W)~F3.0(T) |
| Angle Of View | 55.8°(Wide)~3.2°(Tele) |
| Zoom speed | 3s ( wide angle-telescope) |
| Focus mode | Auto/ Manual/One push |
| S/N ratio | >50dB |
| Image adjust | Support brightness, contrast, saturation, Hue can be adjusted through web |
| White balance | Auto/Indoor/Outdoor |
| Image mode | Standard/gorgeous/natural |
| Iris control | Auto/ Manual |
| Electronic shutter | Auto/ Manual (1/5~1/5000) |
| Auto slow shutter | On/Off |
| Gain control | Low/Middle/High |
| BLC | Off/WDR/HLC/BLC |
| Dark compensation | On/Off |
| HLC | On/Off |
| WDR | Off, Low/Middle/High |
| Day/Night | Auto/Color/ B/W |
| Mirror | Normal/ Horizontal Mirror/Vertical Mirror/180?rotation |
| DNR | 3DNR, Off/Low/Middle/High |
| Defog | On/Off |
| Anti Shake | On/Off |
| AUDIO/VIDEO COMPRESSION | |
| Video compression | H.265/H.264/MJPEG |
| H.265 encoding Type | Support |
| H.264 encoding Type | Base Line / Main Profile / High Profile |
| Frame rate | 1~30fps adjustable 1920x1080, 1280x1024, 1280x960, 1280x720, 720x576 |
| Main stream resolution | 1920x1080(1080p), 1280x1024(XVGA), 1280x720(720p), 1280x960(960p), D1 |
| Sub stream resolution | 720X576(D1), 640*480(VGA), 640*360(Q720)352X288(CIF), 320x240(QVGA),176X144(QCIF) |
| Output format | PAL/NTSC adjustable |
| Max.resolution | 1920X1080 |
| Video bit rate | Constant bit rate, Variable bit rate(16kbps-8000kbps) |
| Stream type | Complex stream/ Video stream |
| Audio compression | G.711u |
| Audio bit rate | 64Kbps |
| Audio control | Input volume(0-100), Input volume(0-100) |
| ROI | 4 zones(1-6) |
| FUNCTION | |
| Pan range | 360° endless |
| Tilt range | 0°~ 90° |
| Manual control | 0.1°~180°/s |
| Preset speed | 200°/s |
| Preset accuracy | 0.1° |
| Preset | 256 |
| Cruise | 8 groups |
| Linear Scan | 8 groups |
| Pattern | 4 groups |
| Continuous scan | Support |
| Proportion zoom | Auto |
| PTZ watch | Off/ Preset/ Cruise/ Pattern/ Linear scan(1~15min) |
| Auto flip | Mechanical Flip |
| Power off memory | Support |
| 3D positioning | Support |
| Magnification / Coordinate display | Support |
| IR irradiation angle | Automatically grouping adjusted, depending on the zoom ratio |
| IR distance | 120m |
| Smart IR | IR irradiation brightness and angle can be adjusted depending on the zoom ratio |
| NETWORK | |
| Network protocol | IPv4,TCP,UDP,HTTP,HTTPS,SMTP,FTP,NTP,DNS,DDNS,DH CP,ARP,UPnP,RTSP,RTP,RTCP, IGMP,PPPoE,ICMP,SNMP |
| Access protocol | ONVIF GB/T28181 |
| Browser | Support IE8 above |
| Video preview meanwhile | Max 4CH |
| User permission | User Add / Delete / Modify, Administrator/ Operator/Ordinary users |
| Safe mode | Authorized user name and password |
| Motion detection | Multi areas, multi-level sensitivity threshold optional |
| Tampering alarm | 1 zone |
| Privacy mask | 8 zones |
| Smart analysis | Target counting/objects detection/area detection/line crossing detection |
| Event linkage | Snapshot, TF card video, FTP upload or Email sending , alarm output linkage, Presetlinkage |
| Multicast function | On/Off |
| ANR | Support, match with the NVR |
| Mobile surveillance | Support Android,Apple |
| Device exception | Support network disconnected, IP conflict, illegal access alarm |
| OSD | Title, time and date overlay, OSD color/size adjustable |
| DST | Support |
| System upgrade | Support online remote upgrade |
| INTEGRATION | |
| Network interface | RJ45 10M/100M Network Adaptive |
| Analog video output | 1.0Vp-p complex video output,75Ω |
| Audio | 1CH input/1CH output, monitoring or bidrectional talk |
| Alarm input | 2 CH input |
| Alarm output | 1CH output,support alarm linkage |
| Reset | Support |
| RS485 port | (Support optional) Half Duplex, support Pelco-P and Pelco-D |
| TF card | Support Max 128G, Support NFR |
| GENERAL | |
| Protection grade | IP66 |
| Operating temperature | Outdoor: -30°C~60°C(Support 30 minutes delay to boot up under low temperature ) |
| Operating humidity | 10%~90%RH ( No condensation) |
| Power supply | DC24V/1.5A(±10%) (not included) or POE |
| POE | Support, (IEEE802.3at standard) |
| Power consumption (max.) | 36W |
| Dimensions(mm) | 380(H)*216(D)mm |
| Weight/PCS(g) | About 7kg |
Includes:
1 x Camera
