Description

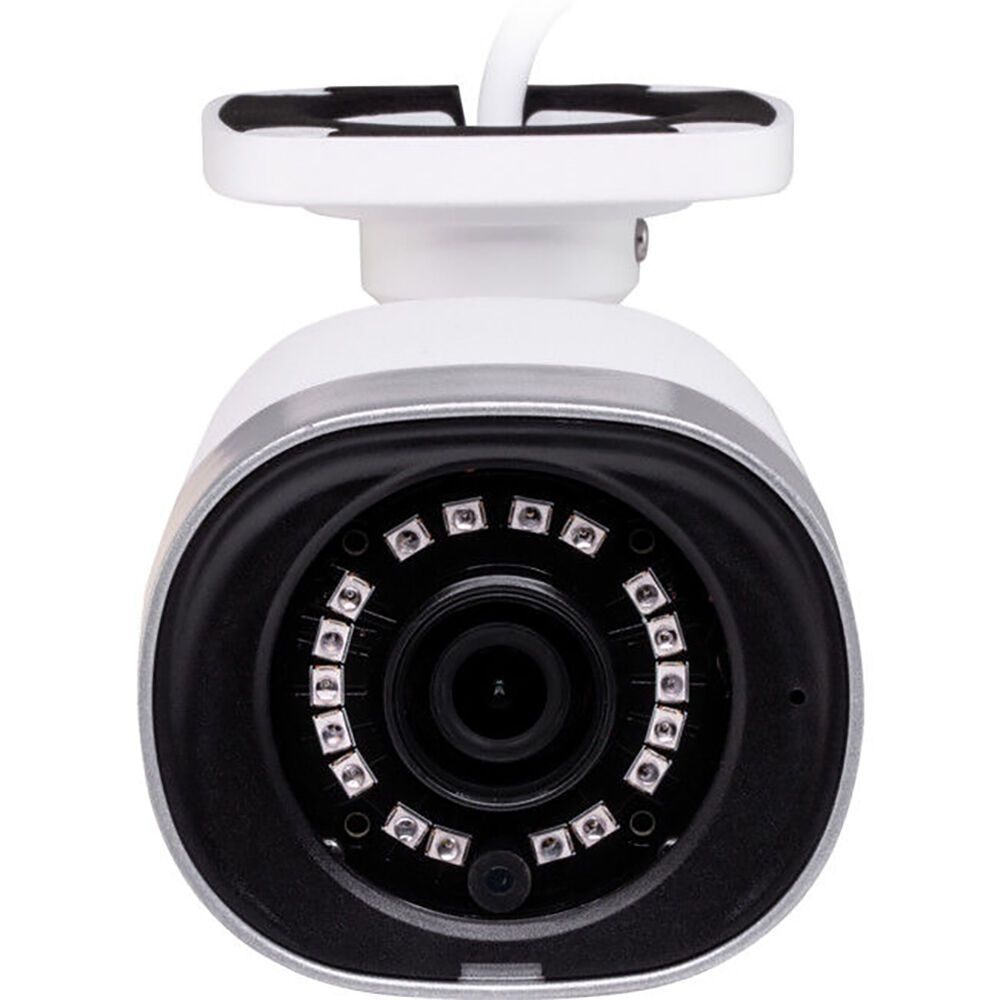

Doss 5MP IR30M IP66 Bullet IP Camera Human Detect Surveillance CCTV White
Features
- Up to 5MP@20fps and 4MP/3MP/2MP@25fps frame rate
- HTML5 supported, no more ActiveX installation required, compatible with Chrome/Edge/Firefox/Safari internet explorer
- Hikvision private protocol supported, plug and play with popular Hikvision NVRs
- H.265/H.264 supported, saves bandwidth and storage space
- 1/2.7" Megapixels CMOS and 3.6mm fixed lens
- Humanoid detection
- IR-Cut (Infrared-cut) filters for producing accurate color images
- IP66 rating
- 6x Normal IR Array Leds, IR distance up to 30-40m
- DC12V or POE power options
- Detection frame 5fps, detect 5 people at the same time
- Support low bit rate and low latency
- Support Smart IR to avoid Infrared over-exposure at night
- Support ICR auto switch, realize D&N surveillance
- Support 3D DNR and digital WDR
- Support auto-electronic shutter to suit different surveillance environment
- Support HTTPS transmission with password, default password 123456
CONNECTIONS
- [DC] 12V DC power input
- [RJ45] Ethernet port
Specifications
| Camera | ||
| Sensor | 1/2.7" Megapixels CMOS | |
| Lens | 3.6mm lens | |
| IR Distance | 6x IR Array leds, IR distance up to 30-40 meters | |
| D-WDR | D-WDR (off/low/middle/high) | |
| IR Led Control | Auto/Manual/Off | |
| DNR | Off/Low/Middle/High/Higher | |
| Defog | Off/Low/Middle/High | |
| Mirror | Off/ Horizontal Mirror/Vertical Mirror/180 degree flip | |
| Image Setting | Brightness, Contrast,Sharpness,Saturation, Chroma | |
| Humanoid Detection | ||
| Detection Quantity | ≤5 people humanoid | |
| Humanoid Size | Humanoid Pixel≥40X40 | |
| Detection Ratio | ≥99%(meet above requirement) | |
| Capture Speed | ≤1s | |
| Max Detection Frame | 5fps/s | |
| Fault Detection Ratio | ≤2% | |
| Detection Part | People with any posture including half body, head, hand, shoulder | |
| Track People | Support | |
| Detection Mode | Support static and dynamic humanoid detection | |
| Detection method | Support visible light image detection, and near infrared image detection | |
| Detection Area | Appointed area, default full-screen | |
| Upload Method | Upload it under private protocol | |
| Trigger Method | Video trigger | |
| Audio & Video Encoding | ||
| Video Encode Standard | H.265/H.264 | |
| Encoding Feature | Main code stream: 5MP 2560x1920@20fps, 4MP 2560x1440@25fps, 3MP 2304x1296@25fps, | |
| Sub-code stream:D1(720*576),VGA(640*360) | ||
| Video Code Rate | Fixed code rate,variable code rate (Main stream code:160Kbps-4000kbps) | |
| Video Type | Composited stream/video stream | |
| Network Function | ||
| Protocol | TCP/IP,UDP,HTTP,HTTPS,DHCP,RTSP,DDNS,NTP,PPPOE,UPNP,SMTP | |
| Connection Protocol | ONVIF, SLINK, HIK | |
| Preview Video Quantity | Up to 5 users web login | |
| Security Mode | Authorized user name and password, HTTPS with password, AES connecting with password, RTSP verification | |
| Motion Detection | Set detection area, can set multi-level sensitivity | |
| Support 1 area setting | |
| Privacy Mask | Support 4 area privacy mask | |
| Schedule Linkage | Capture, email | |
| Equipment Anomaly Inspection | Support network broken alarm, IP conflict alarm, illegal visiting alarm | |
| Character Overlay(OSD) | Title,time and date overlay, multi-line OSD, OSD color is optional | |
| Port | ||
| Network Port | RJ45 10M/100M network self-adjustable | |
| General | ||
| Power Supply | DC12V /POE Option | |
| Protection | IP66 | |
| Size | 183.00(L)*60.00(H)mm | |
| Working Temperature | -20°C ~ 50°C | |
| Working Humidity | 0%~90% |
Includes:
1 x Camera
/
