Description
Doss 8MP IR30M IP66 Vandal Proof Dome IP Camera Human Detection CCTV White
Features
- 8MP 3840*2160@ 20fps, 5MP(2592*1904@25fps)
- HTML5 supported, no more ActiveX installation required, compatible with Chrome/Edge/Firefox/Safari internet explorer
- Hikvision private protocol supported, plug and play with popular Hikvision NVRs
- The 2.7-13.5mm motorized lens makes easy to adjust the focal length and zoom level
- H.265/H.264 supported, saves bandwidth and storage space
- 1/2.8" SONY Progressive Scan CMOS sensor
- Humanoid detection
- Support human alert voice broadcast
- IR-Cut (Infrared-cut) filters for producing accurate color images
- IP66 rating
- 32x IR Leds, IR distance up to 30-40m
- DC12V or POE power options
- Detection frame 5fps, detect up to 5-10 people at the same time
- Support low bit rate and low latency
- Support Smart IR to avoid Infrared over-exposure at night
- Support ICR auto switch, realize D&N surveillance
- Support 3D DNR and digital WDR
- Support auto-electronic shutter to suit different surveillance environments
- Support HTTPS transmission with the password, default password 123456

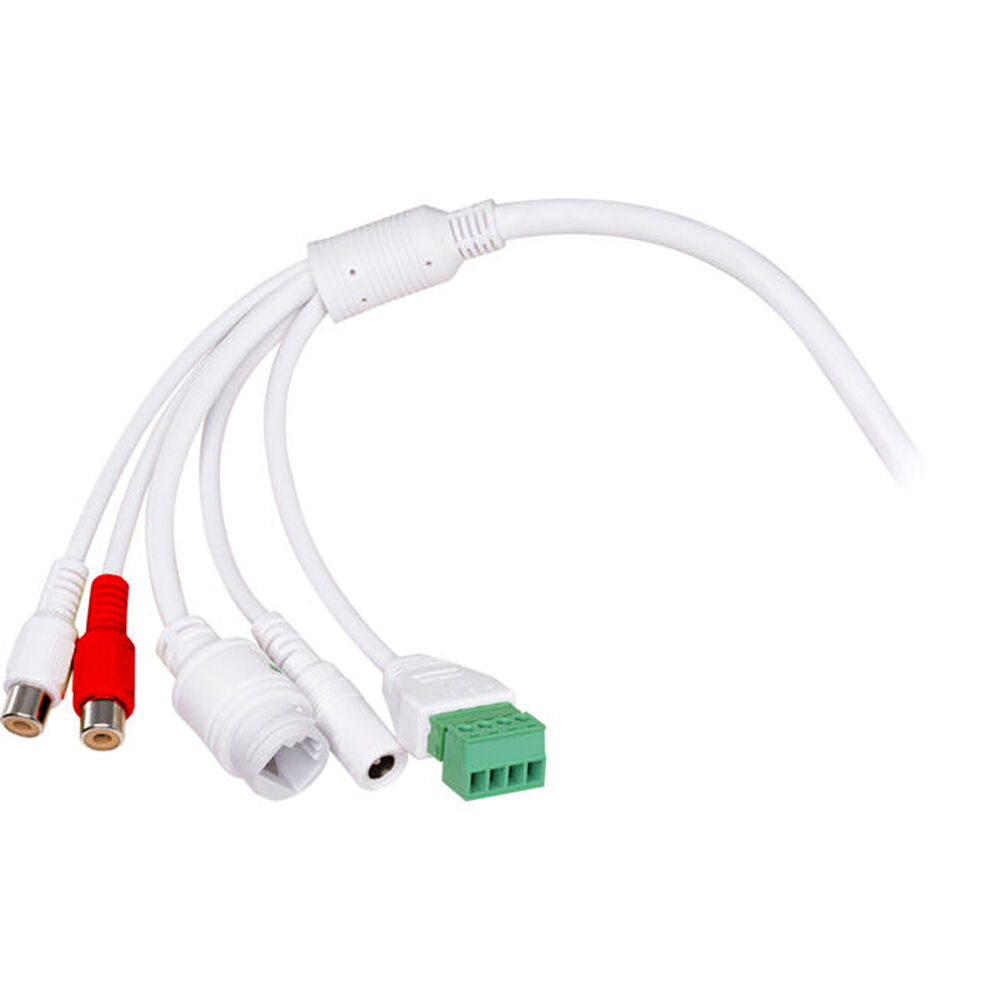

CONNECTIONS
- [DC] 12V DC power input
- [RJ45] Ethernet port
- Alarm input/output
- Audio output
- Audio input
Specifications
| CAMERA | |
| Image sensor | 1/2.8" SONY 8MP Progressive Scan CMOS |
| Min.illumination | 0 Lux/F1.4 (IR ON) Color: 0.1Lux/F1.4, B/W: 0.05Lux/F1.4 |
| IR distance | 30-40m (32x IR leds) |
| Electronic shutter | Auto/ Manual (1/25~1/10000),FLK |
| Day/ Night | ICR switch, auto, color, B/W, ext |
| Lens | 2.7-13.5mm Motorized lens |
| Lens interface | Φ14 |
| Output | PAL/ NTSC adjustable |
| WDR | WDR (Off/ Low/ Middle/ High) |
| Light board control | Auto/ Manual/ Off / Support 0-100 brightness adjust |
| 3D N/R | Off/ Low/ Middle/ High/ Higher |
| Defog | Off/ Low/ Middle/ High |
| Mirror | Off/ Horizontal/ Vertical/ 180° rotation/ Corridor mode (90° rotation, 270° rotation) |
| Slow Shutter | Off/On |
| Exposure control | Auto/ Manual |
| Image setting | Brightness, Contrast, Saturation, Sharpness, Hue |
| Humanoid Detection | |
| Detection Quantity | ≤10 person |
| Humanoid Size | Humanoid pixel≥40X40 |
| Detection Ratio | ≥99% (meet above requirement) |
| Capture Corresponding speed | ≤1s |
| Max Detection Frame | 5fps/s |
| Fault Detection Ratio | ≤2% |
| Detect Part | People with any posture including half body,head,hand shoulder |
| Track People | Support |
| Detection Mode | Support static and dynamic humanoid detection |
| Detection Method | Image detection during day or night time with lights or IR Leds |
| Detection Area | Appointed area, default full-screen |
| Upload Method | Upload it under private protocol |
| Trigger Method | Video trigger |
| AUDIO/VIDEO ENCODING | |
| Video compression | H.265/H.264 |
| H.265 Encoding | Main Profile |
| H.264 Encoding | BaseLine / Main Profile / High Profile |
| Encoding features | Main stream:8MP(3840*2160)20fps,5MP(2592*1904), 4MP(2560*1440)\3MP(2304*1296)\2MP(1920*1080) 25fps Sub-stream:D1(720*576),VGA(640*480),Q720P(640*360),CIF(352*288),QVGA(320*240) |
| Max. Resolution | 3840*2160 |
| Video bit rate | Constant bit rate, variable bit rate (32Kbps~16Mbps) |
| Video type | Complex stream/ Video stream |
| Audio compression | G.711u |
| Audio bit rate | 64Kbps |
| NETWORK | |
| Network protocol | TCP/IP,UDP,HTTP,DHCP,RTSP,DDNS,NTP,PPPoE,UPnP,SMTP,FTP |
| Access protocol | ONVIF, SLINK, HIK |
| Browser | Support IE, Chrome, Firefox, Safari |
| Video web preview | 4 users max on web login |
| User permission | User add/modify/delete, permission management |
| Safe mode | Authorized user name and password, HTTPS encryption and AES link encryption, RTSP verification |
| Motion detection | Set detection zone, multi-level sensitivity can be set |
| Tampering alarm | 1 zone |
| Privacy Mask | 4 zones |
| Event linkage | Snapshot, FTP upload or email sending, alarm output linkage, preset linkage |
| ANR | Support,match with NVR |
| Device exception | Support network disconnected, IP conflict, illegal access alarm |
| OSD | Title, time and date overlay, multi-line OSD, OSD color optional |
| DST | Support |
| Snapshot | Support snapshot, snapshot resolution is encoding resolution |
| System Upgrade | Support remote upgrade |
| INTERFACE | |
| Network Interface | RJ45 10M/100M network adaptive |
| Power | 12V DC power input |
| Audio | 1ch input/1ch output |
| Alarm input | 1ch |
| Alarm output | 1ch |
| GENERAL | |
| Operating temperature | -20°C ~ 55°C |
| Operating humidity | 0%-90% |
| Protection grade | IP66/IK10 and Vandalproof |
| Power supply | DC12V /PoE |
| Power consumption (max) | <9W |

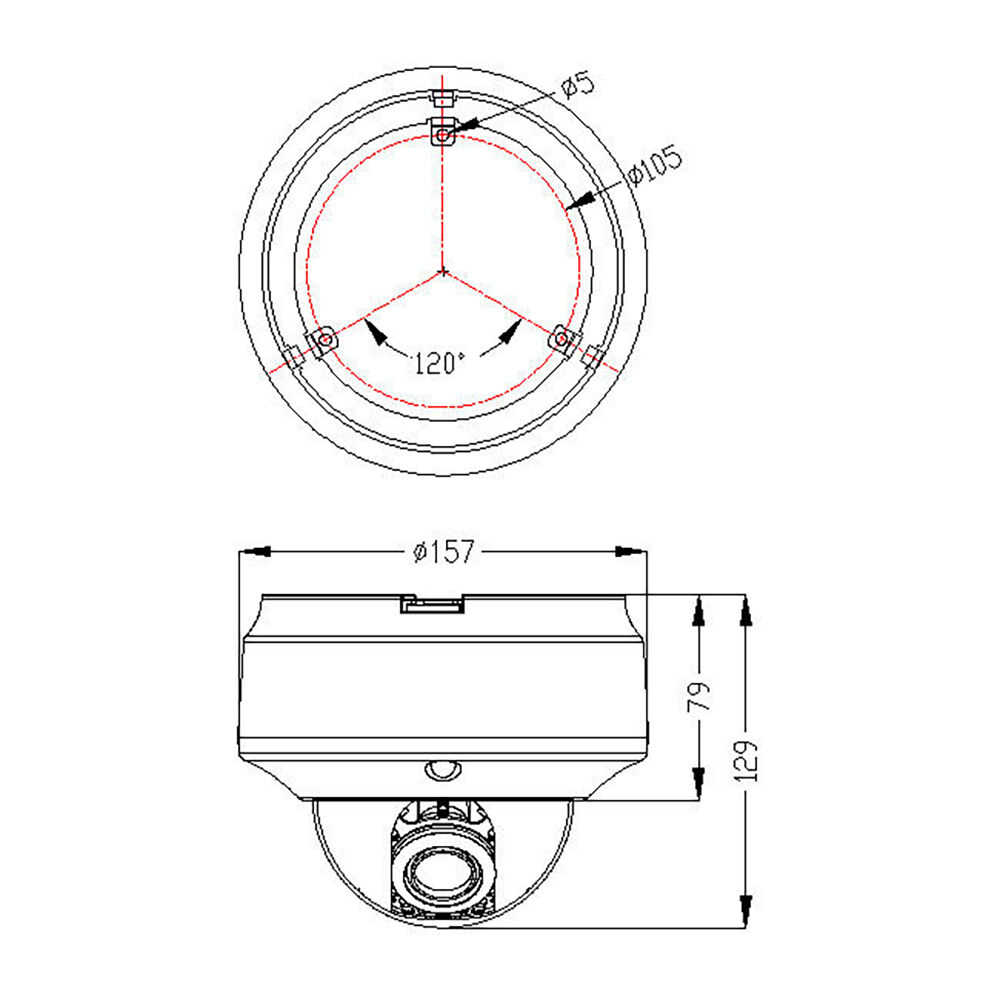

| Dimensions(mm) | 157mm(w)x129mm(H) |
Includes:
1 x Camera
/
