Description

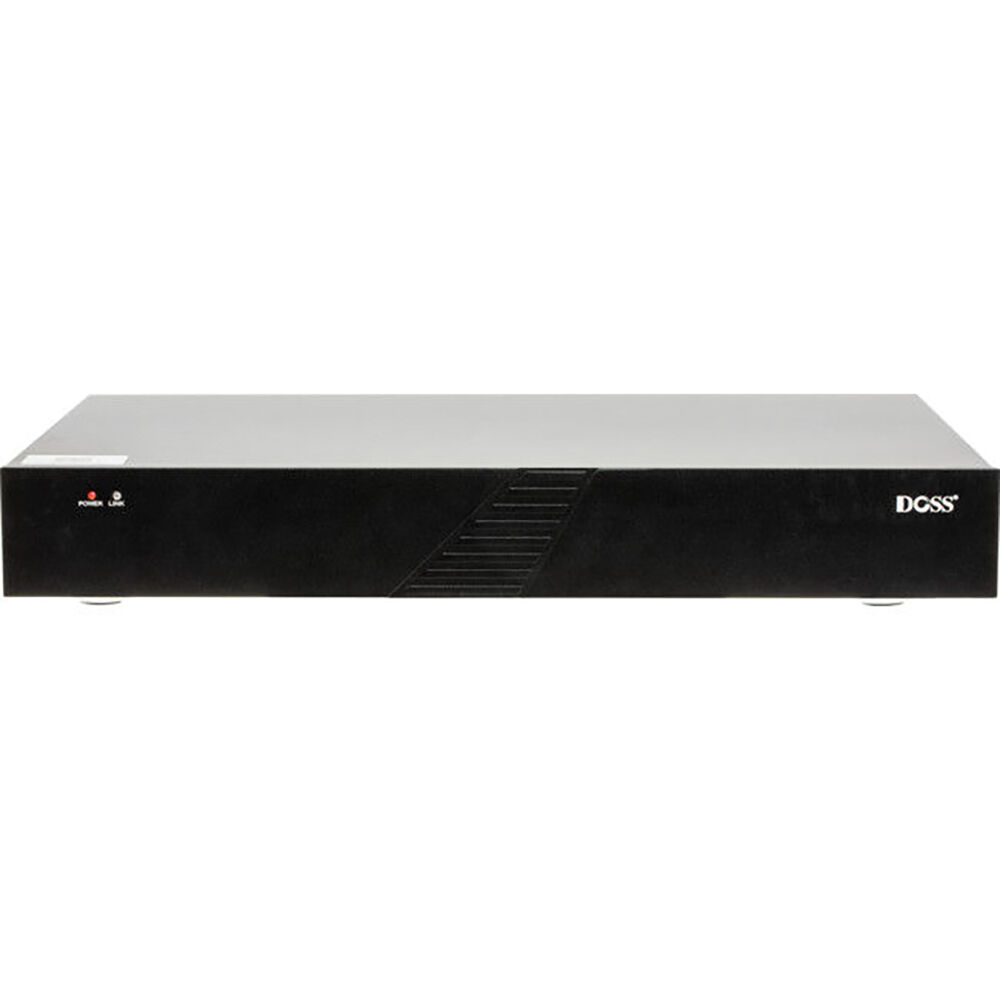

Doss 8CH 8 PoE IQ Analysis 4K NVR Network Video Recorder 360x242.4mm Black
Attention!
Please note for the DOSS 8ch and 16ch NVR range, the IQ analysis feature relies on the built-in IQ feature of theIP cameras themselves, as the chipset built-in to the NVR isnot powerful enough to analyse all the data being captured.
The only exception to this is the 36ch version, NVR36IQ4K, which also supports the local detection features fortarget counting, object detection, object left/lost, line cross detection, scene change, motion detection, video loss,privacy mask & video tampering. The new Doss range of the 4MP and 8MP IP cameras support these IQ features.
8 channel/8 PoE Network Video Recorder
P2P Technology—no more configuring port forwarding! Easy remote access.
ONVIF is an industry standard protocol ensuring compatibility for IP-based security products regardless of brand! Read more here...
- Supports up to 4K camera resolution
- Compatible with fisheye camera
- 100M/1000M Ethernet Port
- 8CH full real-time network video access, 1U NVR case
- H.265/H.264 dual-stream decoding, embedded linux operation system
- Support sync video recording, remote monitoring, backup
- HDMI output, support 2160P HD preview
- Support 12 times amplification preview and playback video, 8CH standard PoE
- Standard ONVIF, RTSP, GB28181 protocol
- Support DDNS, EMAIL, UPnP, NTP, P2P,etc
- Support FSAN SMART IPC (Target counting, object left/lost, area detection, line crossing detection)
- Support grouping disk quota, and disk inventory two storage pattern, distribute different video storage capacity or cycle according to different channels
- Support IPC centralized management, including IPC parameters configuration, import and export information, information real time acquisition and upgrade, etc
- Support channel grouping, preview round touring
- Network detection(network flow monitoring, network wireshark, network clear)
- Max 8CH sub-stream record sync playback and multi-channel sync play backward
- The new UI interface, support a key to open the video recording , Instant playback
- Dual password authentication and zero channel function
New and Improved Features
Notes: Please note there are two network cards built into the NVR. If you use the NVR POE for your IP camera, when you add the IP camera to the NVR, you need to change the IP camera address to different subnet range. Forexample, NVR is Lan1, the IP address will like 192.168.1.189, and all other IP cameras directly connected to the NVR should be set to the address like 192.168.2.xxx;
When you add any ONVIF protocol camera to the NVR, please make sure you have changed the IP address of the ONVIF camera before you add it to the NVR, Lan 2 subnetif connects to NVR directly, Lan 1 subnet if it has own power or connects to POE switch. It is also required to add user name and password info for each ONVIF camera in NVR channel settings, even you have no password set in the camera itself, as NVR has no permission to change ONVIF IP camera address and couldn’t access the camera without login credentials.
The Doss IP NVRs are now smarter with baked in Intelligence features. On top of all that, they also now support higher resolution cameras!
Here's what's new with the IQ NVR range:
- The layout and usability on the new NVRs have been greatly improved over their predecessor, making navigating and finding what you want a much easier experience.
- Smarter, more intelligent features mean the NVR does all thehard work and gives you the alerts you really need!
QA Analysis:
With more and more people now turning to CCTV surveillance for their security needs, its no surprise that new technologies are being developed and implemented to helpreduce the need for manual monitoring and the costs associated. One such strategy is the use of Intelligent Video Analytics (IVA).
The Magic of Intelligent Detection
IVA focuses on automating the video analysis of large amounts of data footage and security alerts, rather than having people monitor each camera manually. The software utilises a range of rules and algorithms to ignore any changes in lighting conditions or non-critical activity, andfocus on specific triggers to identify suspicious behaviour and objects.
A good example of Analytics would be its ability to alertauthorities of suspicious objects left in public places, like airports, and use facial recognition to help track downfugitives. It could also be used in Highway CCTV situations to capture and report a vehicle travelling in the wrong direction or performing an illegal turn. Even for the domestic home, Analytics could alert and monitor a trespasser crossing a property line.
With every aspect of our lives being digitised, video footage will be increasingly tagged to these events. Imagine a person scanning a train ticket at a turn style. The scanning of the ticket and the footage from the CCTV camera will get put together and be readily accessible in real time or a month later.
Notes:
Please note for the DOSS 8ch and 16ch NVR range, the IQ analysis feature relies on the built-in IQ feature of the IPcameras themselves, as the chipset built-in to the NVR is not powerful enough to analyse all the data being captured.
The only exception to this is the 36ch version, NVR36IQ4K, which also supports the local detection features fortarget counting, object detection, object left/lost, line cross detection, scene change, motion detection, video loss,privacy mask & video tampering. The new Doss range of the 4MP and 8MP IP cameras support these IQ features.
Rear Interface
- RJ45 LAN Port
- 8x POE RJ45 POE ports for cameras, total 80W POE
- VGA output
- HDMI Output
- Terminal block for alarm input/output
- Terminal block for RS485
- RCA audio/mic input
- RCA audio/speaker output
- 2x USB2.0 ports for mouse and external drives
- DC Power Input
Specifications
| VIDEO | |||
| Network Video input | 8CH | ||
| Network video input bandwidth | 80Mbps | ||
| Video compression | H.265/H.264 /MJPEG | ||
| Video output |
| ||
| Video bit rate | 16-16000Kbps | ||
| Video resolution | 4K/5MP/3MP/1080p/960p/720p/D1/VGA/4CIF/DCIF/2CIF/CIF/QC IF | ||
| Image display | 1/4/6/8/9/16 | ||
| Snapshot | Support timing snapshot, manual snapshot, JPEG format | ||
| Intelligent detection | Motion detection, video loss, video tampering, support FSAN SMART IPC intelligentfunction | ||
| AUDIO | |||
| Audio compression |
G.711U | ||
| Audio input | 1CH (IPC complex audio input) | ||
| Audio output | 1CH [RCA port] | ||
| Bidirectional talk | / | ||
| VIDEO RECORDING AND PLAYBACK | |||
| Video frame rate | 1-30 FPS | ||
| Record method | Manual/external alarm/MD/timing/intelligent analysisalarm | ||
| Playback ability | Support 1CH 4K/5MP/3MP; 4CH1080P 8CH sub-stream record sync playback | ||
| Playback mode | Instant playback,Local video, local image, External file playback | ||
| Video search | Time, calendar, event search, channel search(ANR,regular video, motion detection video, alarm video, intelligent detection video) | ||
| Video playback | Start, stop, normal play, back play, forward 30 seconds, backward 30 seconds,fast play(1-256X), slow play(1-1/32X), frame play, display the hidden progress bar, backup, snapshot, full screen, roller amplification time bar precise playback | ||
| STORAGE AND BACKUP | |||
| Interface | 2 SATA | ||
| HDD capacity | Single max.6T | ||
| Backup location | Local, network | ||
| Backup method | USB mobile hard disk, U disk, network backup | ||
| FUNCTION | |||
| Network protocol | TCP/IP, HTTP, HTTPS, DDNS, SMTP(SSL), DHCP, PPPoE, UPnP, NTP, P2P | ||
| Interface protocol | ONVIF, RTSP, GB28181 | ||
| Mobile surveillance | iOS and Android via FSEYE app | ||
| Web Browser | Supports IE, Chrome, Firefox, Safari | ||
| Display function | Channel shortcuts: Instant playback,3D positioning, show smart detection,show face detection,voice intercom,channel audio | ||
| IPC timing | Manual/ auto/ timing /reconnect timing IPC timing | ||
| Network detection | Flow monitoring, networkwireshark, network test | ||
| EXT INTERFACE | |||
| Network interface | 1x RJ45 100M/1000M adaptive Ethernet port | ||
| PoE interface | 8CH (IEEE 802.3af) | ||
| Alarm input | 4CH | ||
| Alarm output | 1CH | ||
| RS-485 | Support | ||
| USB ports | 2x USB2.0 ports | ||
| Audio | Audio input and output | ||
|
GENERAL | |||
| Power supply | DC 48V/2.5A | ||
| Power consumption | <10W (Without HDD) | ||
| Operation temperature/ humidity | -10°C ~ 55°C/10% 90% | ||
| Dimension (mm) | 360(L)x242.4(W)x48(H)mm | ||
| Weight | 2 kg | ||
What's in the box?
- NVR
- 48V 2.5A DC Power supply with detachable IEC lead
- USB Mouse
- HDD Connection Kit
- 2x SATA cable
- Molex power cable
- 8 screws
- Software CD
Includes:
1 x Video Recorder
