Doss NF-633 Cable Tester w/ Mini Display Port Testing Portable Device Blue
Features
The Doss NF-633 display port cable tester tests 20 internal wires individually and gives a clear reading of display port cable condition.
- Supports display port and mini display port cables
- Max testing distance: 15m
- Requires 9V battery
Specifications
| cables versions support | 1) Display Port Cable
2) Mini Display Port Cable
3) Display Port to Mini Display Port Cable |
| support test | 1th ~19th pin to pin wire map and shield detection, and 20th detection. |

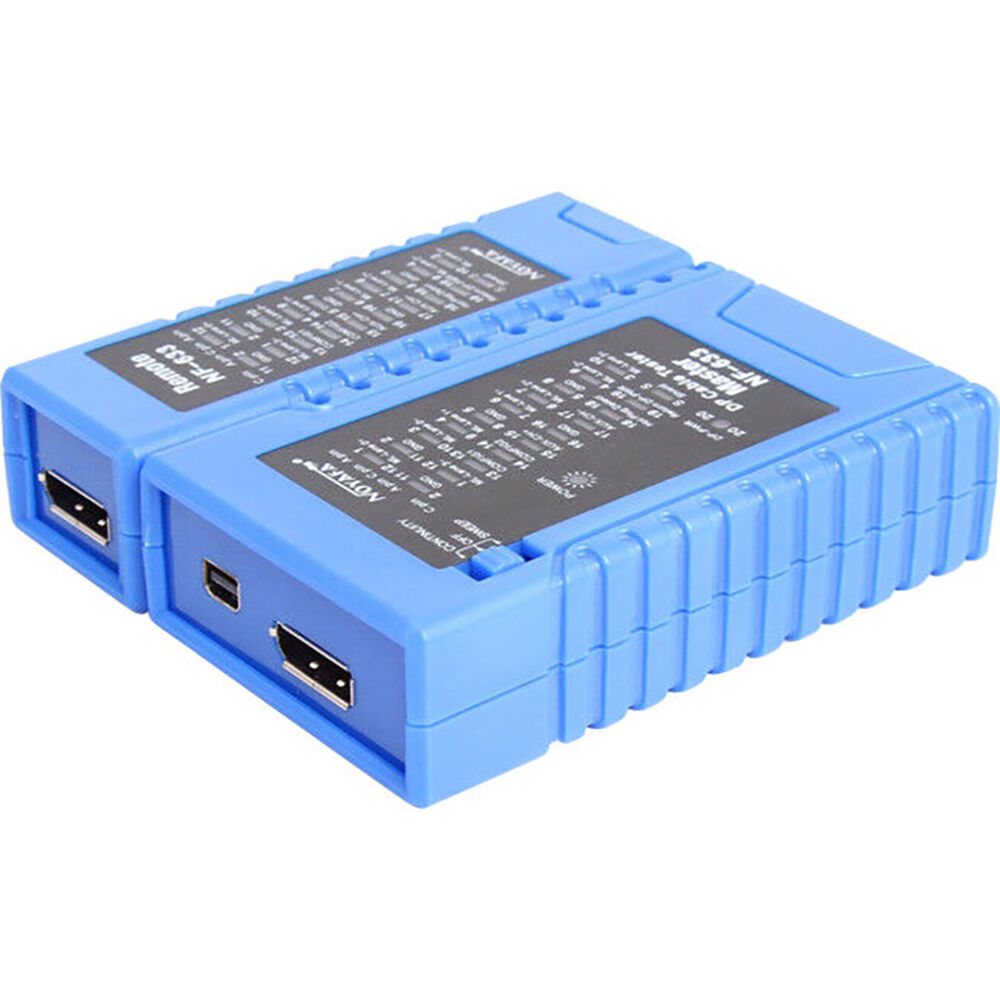

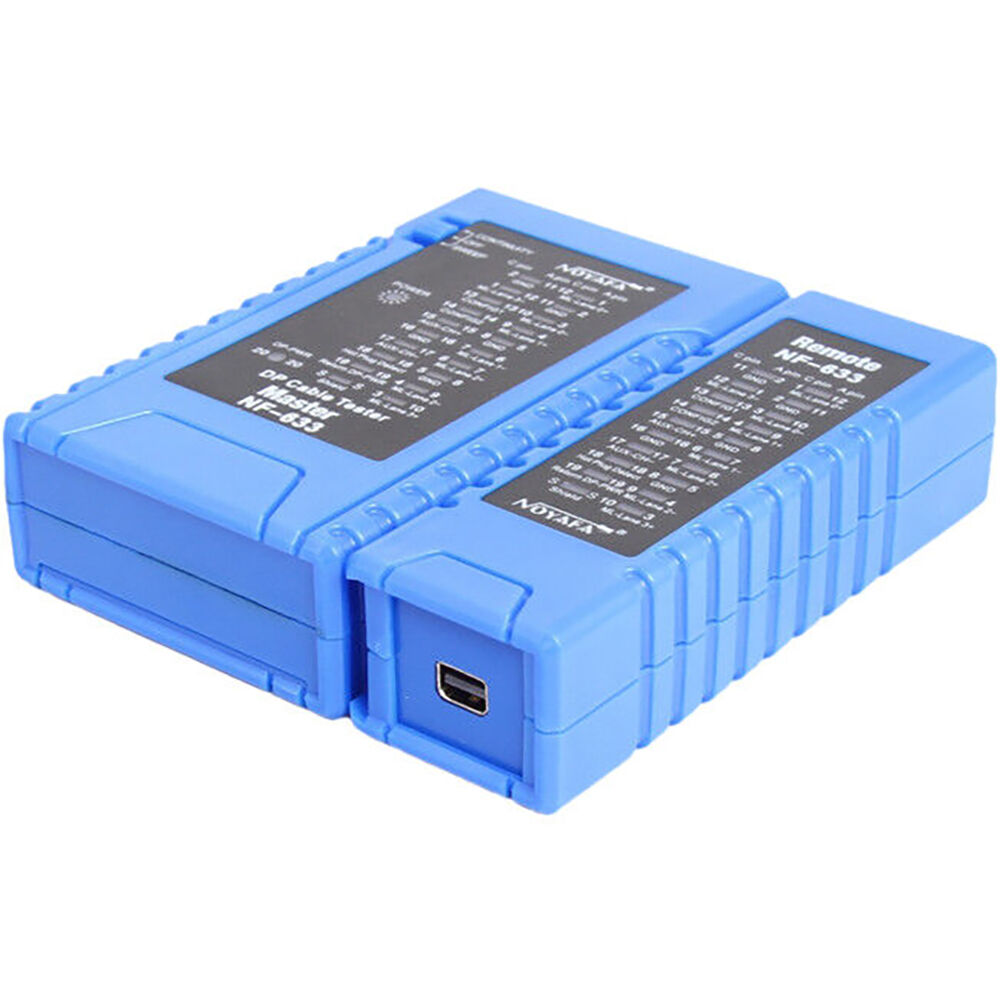

| Test interface of master unit | Display Port *1
Mini Display Port *1 |
| Test interface of remote unit | Display Port *1
Mini Display Port *1 |
| Test mode | Sweep and Continuity |
| Max test distance | 15 metres |
| Status Display | 19 LEDs and Shield Led on both Master and Remote Unit |
| 20th LED only on Mater Unit |
| Beeper indication | Yes |
| Low battery indication | 6.0V |
| Power source | DC 9V (NEAD 1604/ 6F22) x1 (not included) |
| Environment | Operating: 0° to 40° < 80% RH |
| Storage: -10° to 50° < 70% RH |

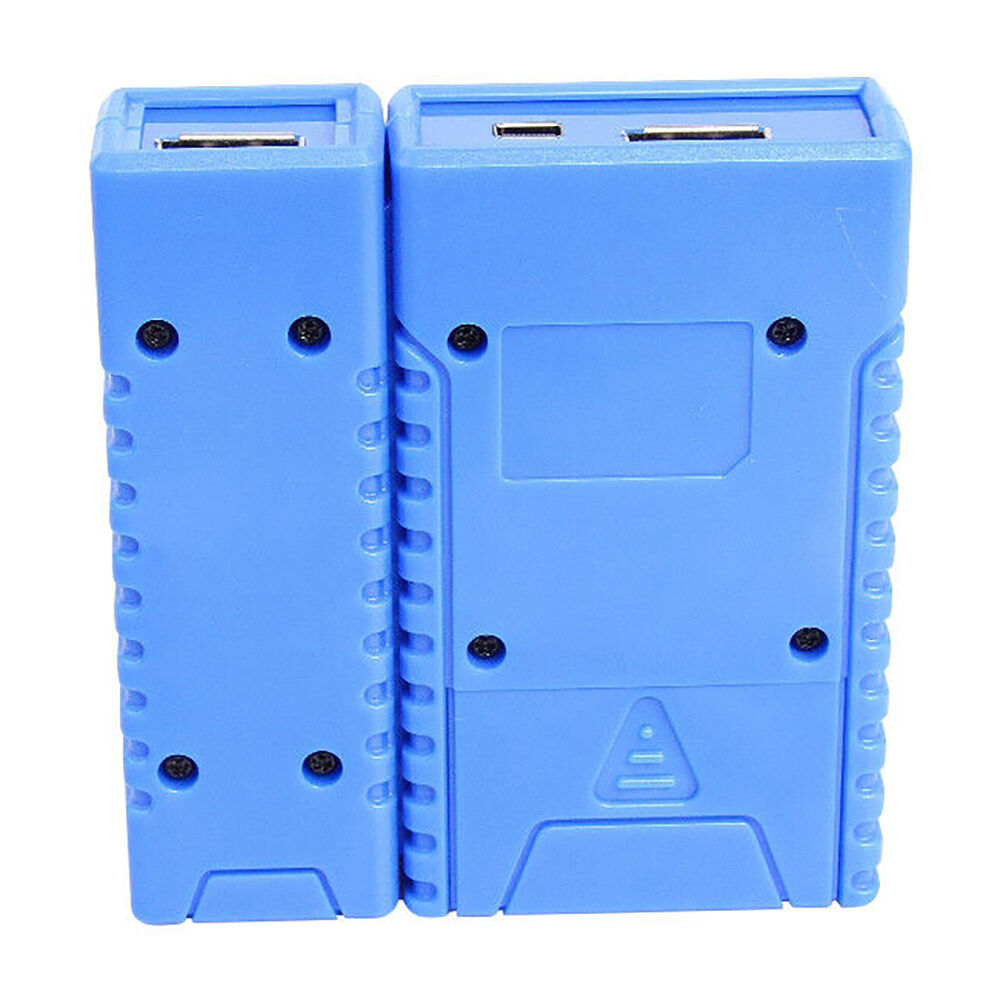

| Dimensions | Master unit: 103x66x27mm |
| Remote unit: 103x35x27mm |
Includes:
1 x Cable Tester
