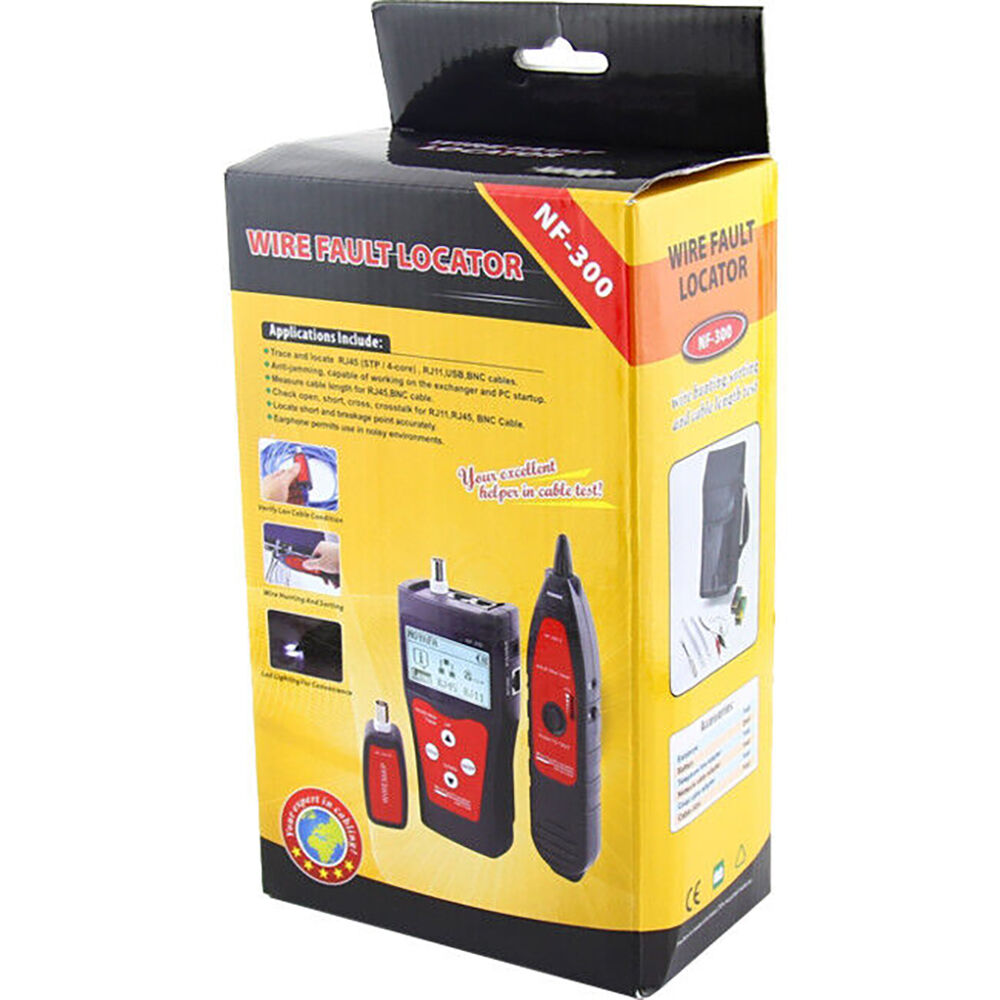

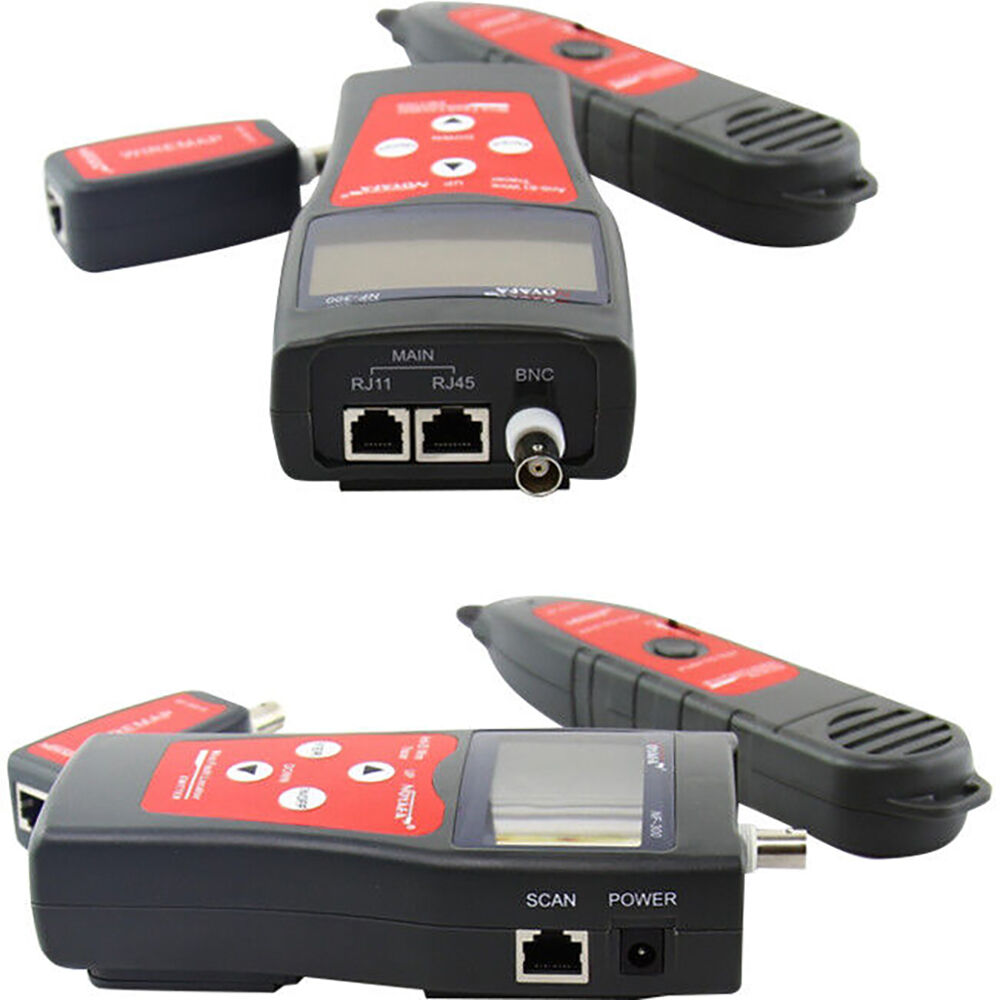

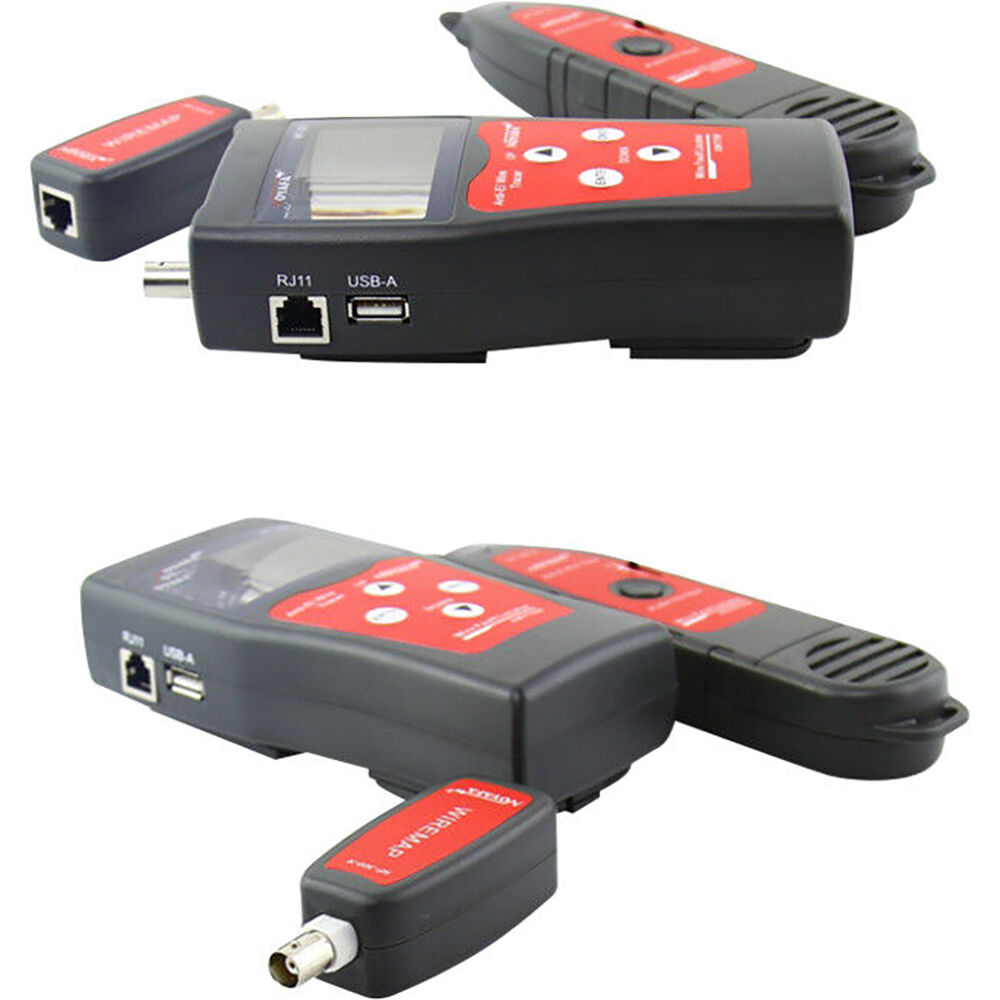

Doss NF300 Network Coax Cable Tester Portable For RJ45/RJ11/USB/BNC Black
Doss NF-300 is a multifunction network coax cable tester. Itincludes remote wire map and tone tracer. It also features aporting flashing function for cable identifying on switch.
Features
- Enables cables to be located even when totally concealed
- Memory and storage function
- LCD Screen shows test result clearly
- RJ45, RJ11, USB and BNC cable testing
- Port flashing function
- Cable length testing
- Cable fault testing
- Headphone jack on tone tracer
- LCD screen
- Voltage protection
Specifications
| NF-300 Transmitter specifications |
| LCD screen | 53x25mm |
| Tone frequency | 225kHz |
| Trace cable coonected to switch | Anti-jamming |
| Tone mode | 2 Tones, adjustable |
| Compatible with connectors | RJ11,RJ45,BNC,USB |
| Cable map indication | Pin #1- #8 |
| Shielded indication | # G |
| Voltage protection | AC 60V/DC 42V |
| Low battery display | LCD (6.5V) |
| Battery type | DC9.0V(NEDA 1604/6F22 DC9V) x 1pc |
| Dimensions (LxWxD) | 185x80x32mm |
| NF-300 Receiver specifications |
| Frequency | 225kHz |
| The Max. working current | Less than 70mA |
| Battery type | DC9.0V(NEDA 1604/6F22 DC9V) x 1pc |
| Dimensions (LxWxD) | 218x46x29mm |
| NF-300 Remote unit specifications | |
| Compatible with connectors | RJ45,BNC |
| Dimensions (LxWxD) | 107x30x24mm |

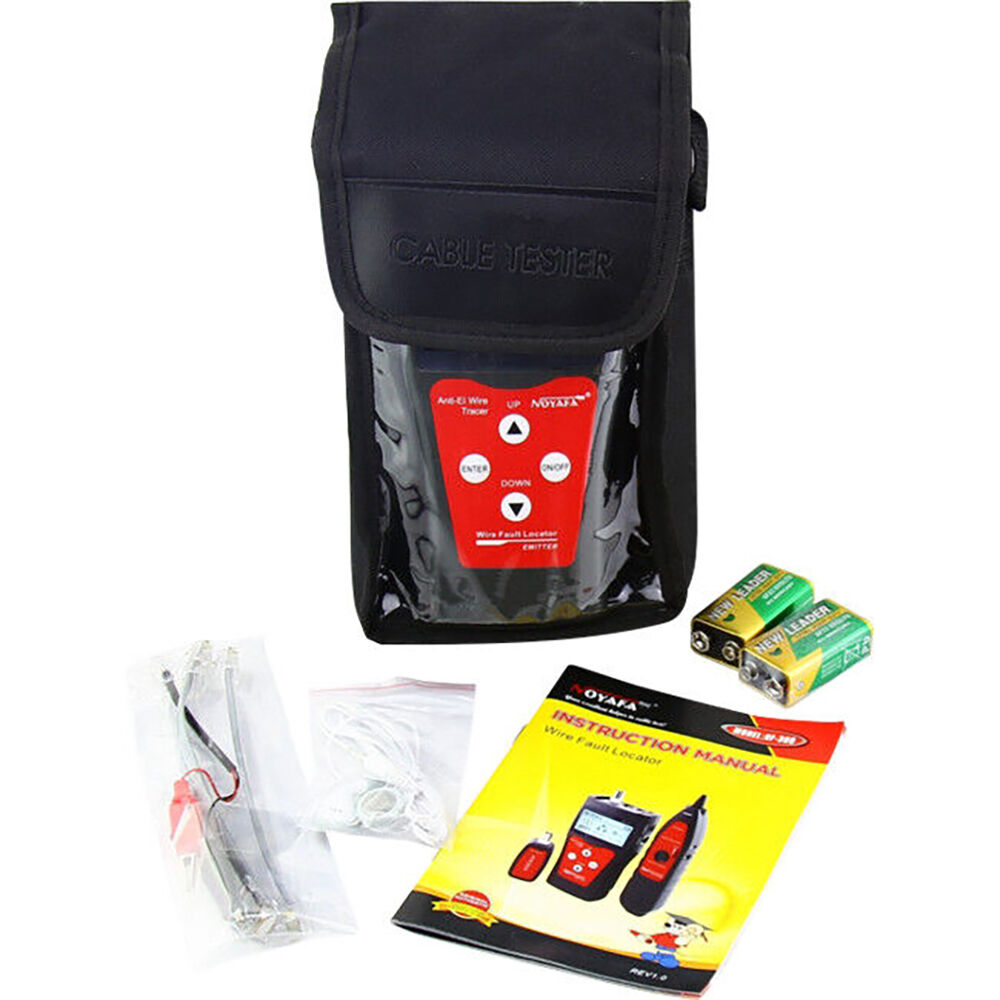

Accessories Included:
| earphone x 1 set |
| telephone line adapter x 1 set |
| network cable adapter x 1 set |
| Cable clips x 1 set |
Includes:
1 x Cable Tester
