WARNING: Keep button batteries out of children’s reach:
Keep coin-sized button batteries and devices out of sight and out of reach.
Examine devices and make sure the battery compartment is secure.
Dispose of used button batteries immediately. Flat batteries can still be dangerous.
If you suspect a child has swallowed a button battery, immediately go to a hospital emergency room. Do not let the child eat or drink and do not induce vomiting.
Call the Poisons Information Centre on Australia 13 11 26 or New Zealand 0800 764 766 for additional treatment information.
Tell others about the risk associated with button batteries and how to keep their children safe.

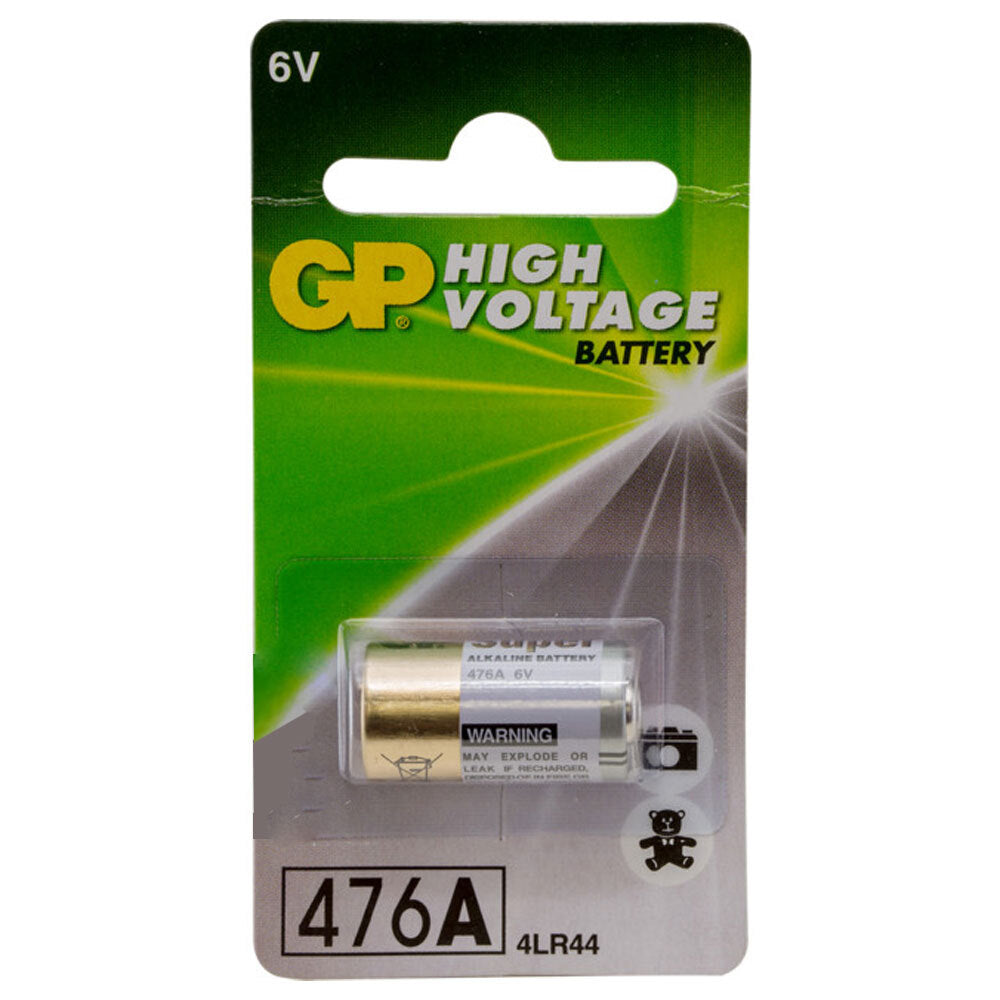

6V ALKALINE BATTERY GP
| Code: | GP476A |
| Capacity (mAh): | 105 |
| Chemistry: | Alkaline |
| Cross Reference: | A544/ PX28A, 4LR44 , V4034 PX , 4G13, AG13 |
| Dimensions (mm): | 13.0X25.5 |
| Voltage: | 6 |
-
Description : Alkaline High Voltage Battery
-
Nominal Voltage : 6Volts
-
Nominal Dimensions : Ø13.0mm×25.2mm
-
Terminal : Nickel plated flat contacts - protruded red(+); recessed black (-)
-
Jacket : Metal jacket
-
Internal Connection : Pressure
-
Applications : Electronic toy, photo
-
Average Weight : 10g
-
Date Code : Unless otherwise specified, each batteries will carry a numeric year code and analogue month code
-
Shelf Life : Not less than 90% of the service capacity within first year. , not less than 85% of the service capacity with third year storage at 22 ± 3 oC 40-80 %RH.
-
Insulation Resistance : 5MO min.
-
Close Circuit Voltage : 5.2 Volts (min.)(load resistor 400O at 22 ± 3 oC for 0.1 to 2 seconds)
-
Nominal Service Life : 125hrs (at 6kO load) (to 3.6V at 22 ± 3 oC)
-
Average Service Capacity : 105mAh(at 6kO load) (to 3.6V at 22 ± 3 oC)
-
Cross References:
-
GP IEC - Eveready - JIS - Duracell - Varta
Includes:
1 x Battery
