2pc Boya By-WM8 Pro-K1 Dual-Channel Wireless Receiver/Transmitter - Black
The BOYA BY-WM8 Pro-K1 Dual-Channel Wireless Receiver is upgraded addition of UHF Dual-Channel Wireless Microphone System and can be used to capture audio for live sound, ENG, broadcast and film, talk shows, conferences and more.

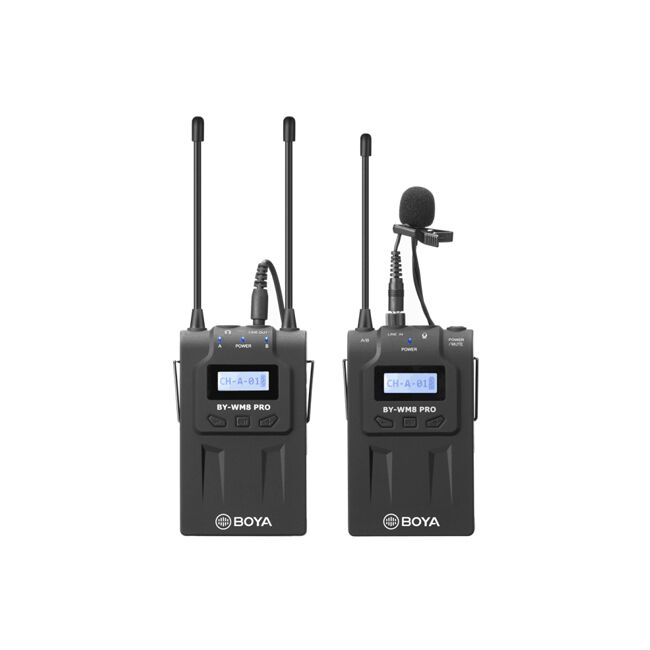

The BOYA BY-WM8 Pro-K1 Dual-Channel Wireless Receiver system consists of a bodypack transmitter, a camera-mount receiver, and one omni-directional lavalier microphone. Also included with this system is a shoe-mount adapter, a single 1/8" to XLR output cable, a single 1/8 to 1/8" output cable, carrying case.

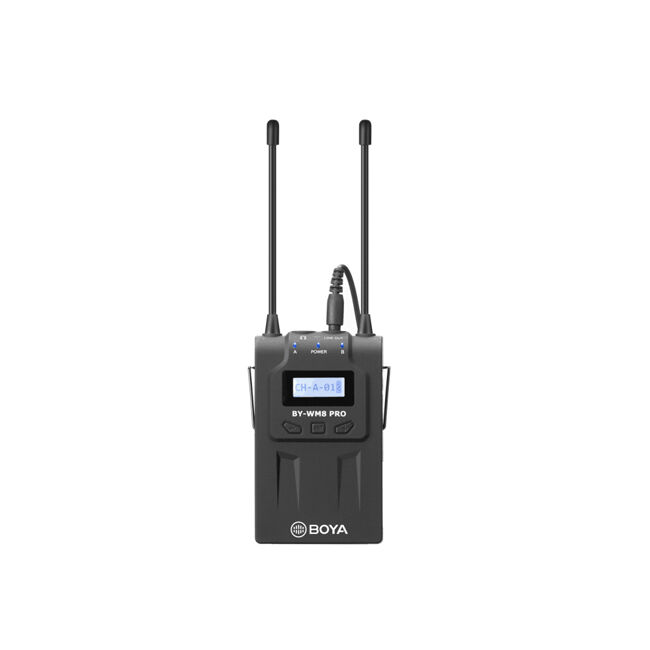

The camera-mountable receiver features a wide-switching RF bandwidth, an easy-to-read LCD display and a 3.5mm headphone jack for real-time monitoring. And the bodypack transmitter is equipped with a crystal-controlled PLL synthesizer, a muting function, a 1/8" mic input and a 1/8" line-in jack.
The BOYA BY-WM8 Pro-K1 Dual-Channel Wireless Receiver features: - Digital Companding Circuitry
- User-friendly menu operation with more control options
- Auto-Lock function avoids accidental changing of settings
- One Mic input and one Line Input for transmitter
- Monitoring of receiver via headphones directly
- Wide range of accessories adapts the system to most of requirements
Features: - Dual-Channel Wireless Receiver
- Consists of One Transmitter and One Receiver
- UHF transmission with 48UHF channels
- Ideal for ENG/EFP, DSLR Video
- Broadcast Quality Sound
- Operation range can reach up to 100m
- Adjustable MONO and Stereo mode
- Powered by one 2 x AA batteries for both transmitter and receiver
Specifications: - Oscillator Type: PLL
- Transmitter Range A : 556.71MHz - 575.98MHz
- Transmitter Range B: 576.39MHz - 595.66MHz
- Channels: 48
- Frequency Response: 40Hz to 18 kHz (+/-3dB)
- Operation Range: 100m without obstacle
- Antenna: 1/4 inch wire antenna
- Audio Input Connector: 3.5mm Mini Jack
- Signal to noise ratio: 70dB or more
- Distortion: 0.5% or less
- Headphone Output Level: 30mW
- Audio Output Level: -60dBV
- Power Supply: 2 x AA Batteries
- Operation Time: Approximately 4 hours
- Dimensions: 20.8 x 6.7 x 2.9cm
- Weight: 90g without batteries
Colour: Black
Includes:
1 x Receiver
1 x Transmitter
