Pro2 3-IN-1-OUT 18GBPS HDMI Switch AV Distribution Device w/ Remote Black
Features
- Switch between 3 HDMI inputs to 1 HDMI output
- HDMI 2.0 version (Support 4K@60Hz YUV4:4:4)
- Bandwidth up to 18Gbps
- HDCP2.2/ HDCP1.4, CEC
- Support HDR10
- Uses IR remote control or switch button to choose thesource
- Micro USB interface for the user to upgrade firmware
- Keeps memory of the last power state when switching different HDMI channels
Specifications
- Operating Temperature Range: -5 to +40°C(+23 to +104°F)
- Operating Humidity Range: 5 to 90%RH (No Condensation)
- Power supply: 5V 1A
- Minimum power: 182mA (work under 480p60hz)
- Maximum power: 277mA (work under 4K2K/60hz)
- Max resolution: 4k@60hz YUV4:4:4
- Function: HDR10 and CEC
- HDMI version: HDMI 2.0
- HDCP version: HDCP2.2 / HDCP1.4(Auto choose depends onTV version)
- Control ways: Switch button and IR remoter control
- Distance: 1080P 20m, 4k@30hz 10m, 4k@60hz under HDR can support 3m
- Dimensions(LxWxH): 125x64.2x17mm

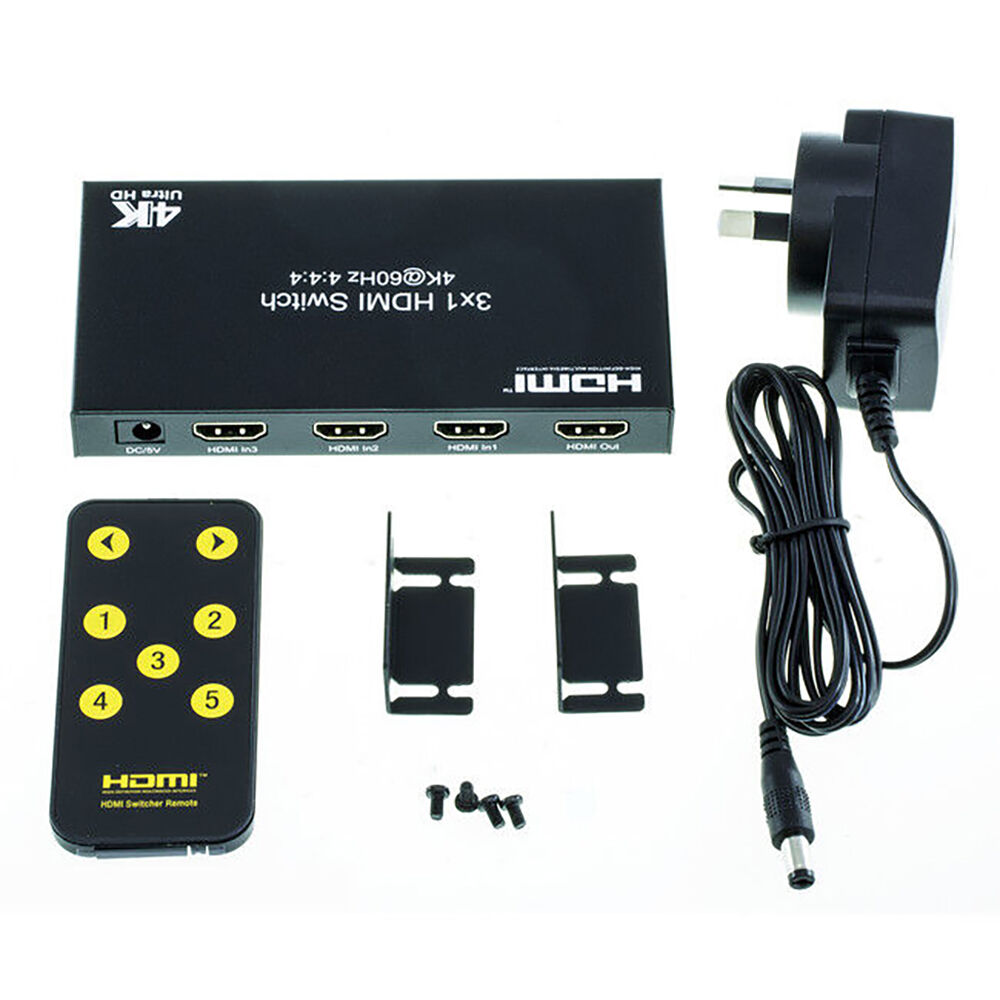

Package Contents
- 1x HDMI Switch
- 1x 5V 1A DC power adapter
- 1x User manual
- 1x IR Remote controller
Includes:
1 x AV Distribution Kit
