Pro2 4K HDMI Over CAT5/6 Splitter Transmitter/Receivers Extender Kit Black

Pro2 4K HDMI Over CAT5/6 Splitter Transmitter/Receivers Extender Kit Black

Features

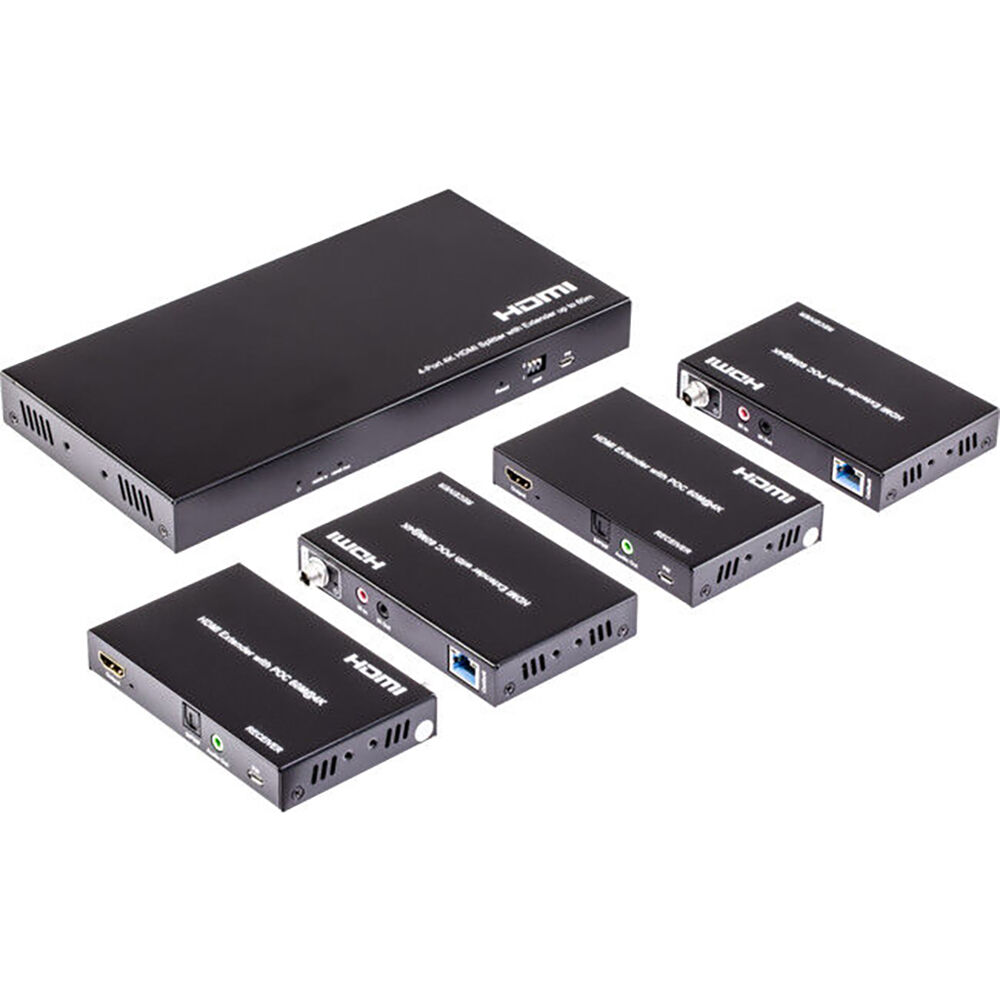

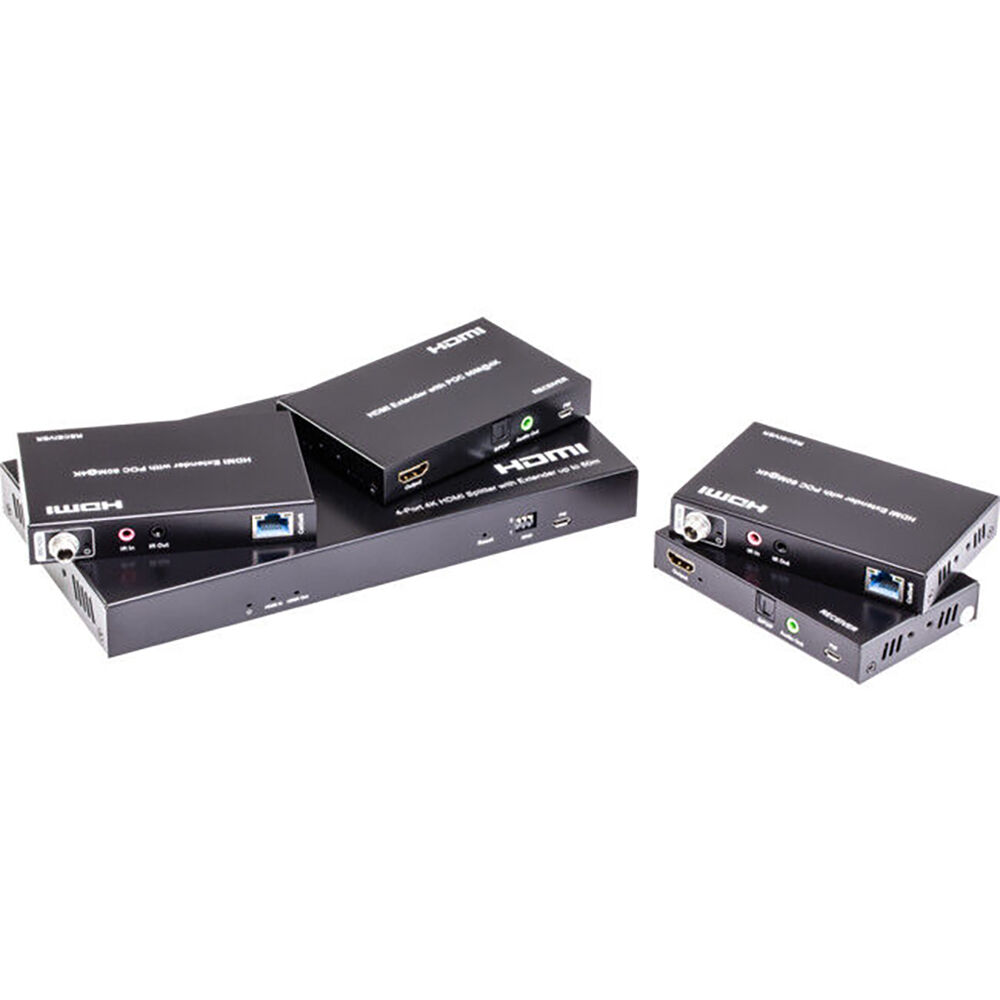

HDMI over Cat5e/6 Splitter & Extender Kit of One Sender and Four Receivers

The easiest way to split and extend your 18Gbps 4K @60Hz 4:4:4 HDMI & IR remote signal using a single CAT5E/6 cable up to 60M! This kit includes one transmitter and four receivers.



Features

• HDMI2.0 splitter and extender, support the bandwidth up to 18Gbps, HDR10 and HLG up to 4K@60Hz 8bit

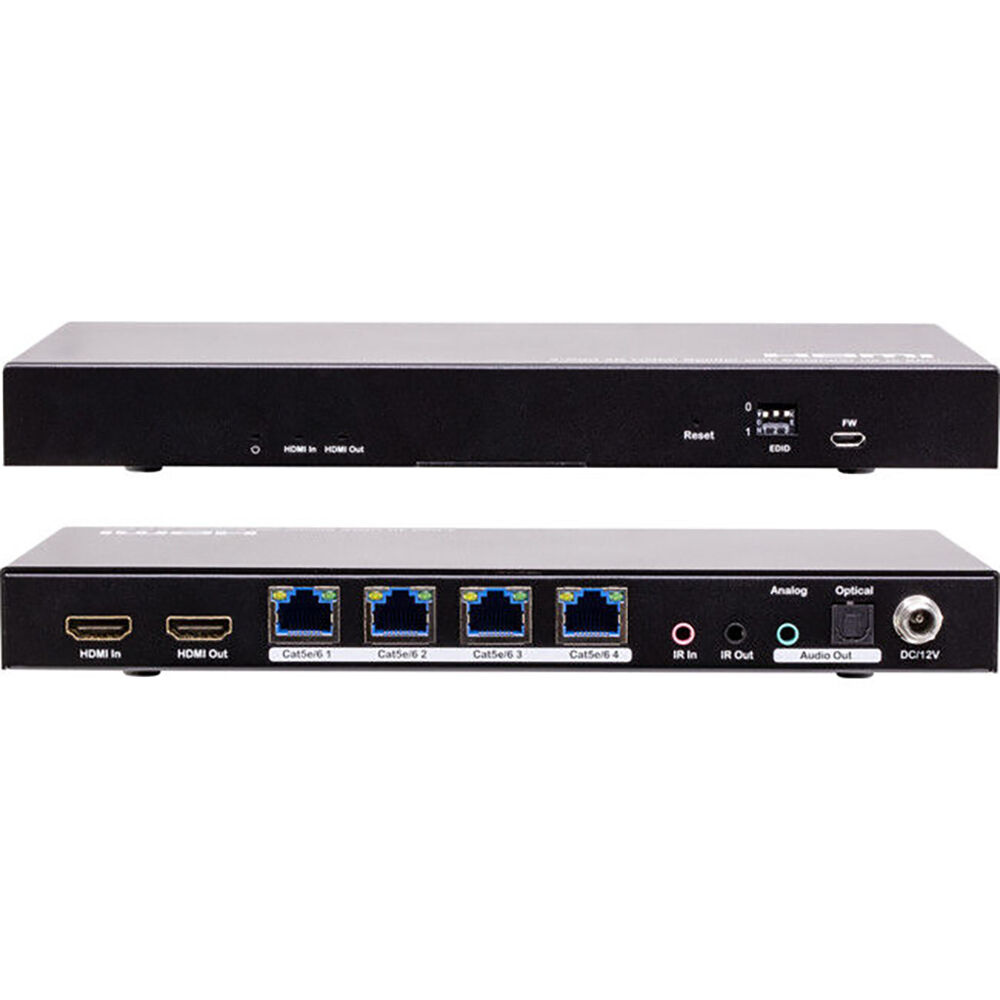

• Distributes 1 HDMI source to 4 RJ45 outputs with 1 HDMI local loop out
• Transmission distance up to 60m (197ft) at 4K@60Hz over a single Cat5e/6 cable
  Note: 60M distance is under perfect transmission conditions like straight cable runs with no bends, kinks, electrical interference, patch panels or wall outlets.
• HDMI local loop out on the transmitter
• HDCP2.2/1.4 Compliant

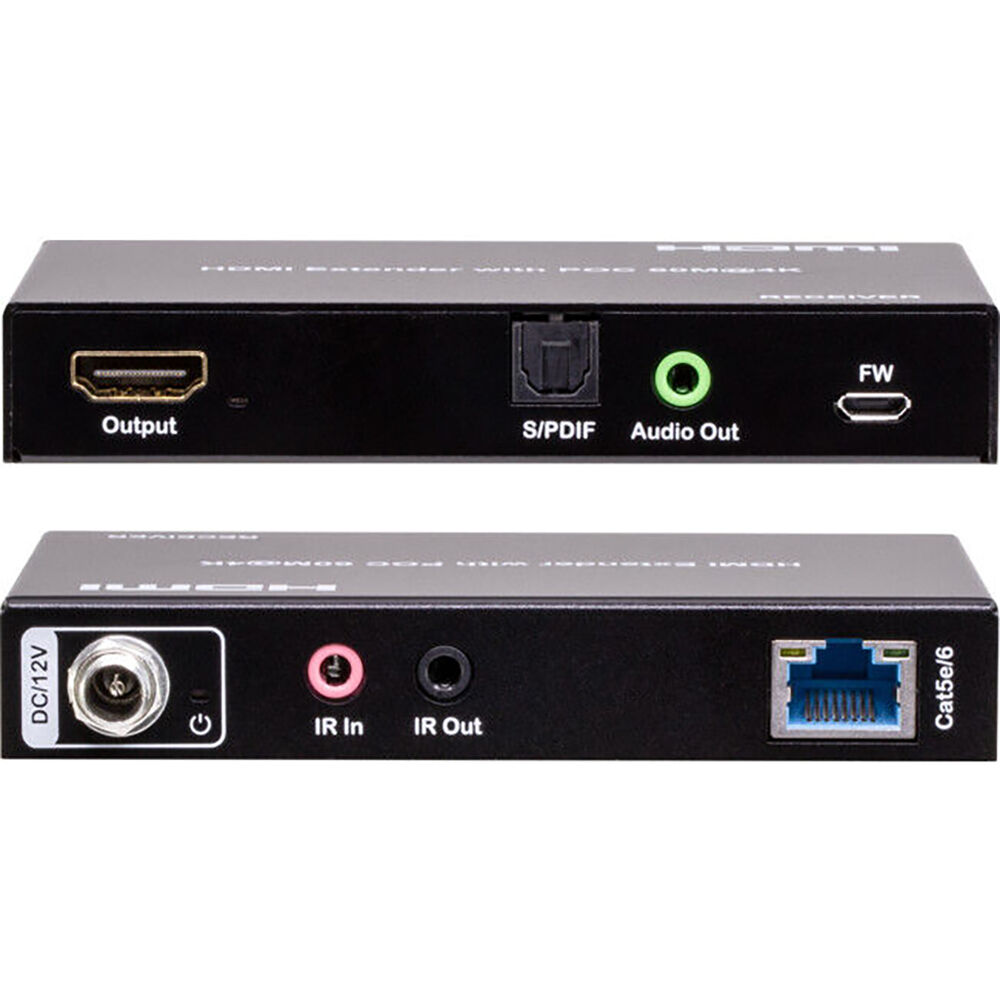

• Analogue and Toslink SPDIF digital audio outputs on both TX and RX sides
• Supports LPCM2.0/5.1, Dolby Digital, DTS 5.1, Dolby Digital+, and Dolby True HD (Note: Dolby True HD is not supported on the receiver side, it is only supported on the transmitter input and local loop out.)
• POC (Power Over Cable), one single power supply to power the transmitter and four receivers
  Simply connect the included power supply to the transmitter and all the receivers will receive their power via the CAT5E/6 cable.
• Bi-Directional wideband IR support compatible with Foxtel IQ4
• Auto signal management, auto downscales 4K@60hz to 1080P at the receiver end
• EDID management through a 3-pin dip switch
  For full control over hand-shake between the source and display. If any of the TVs does not support 4K, that TV will be automatically downgraded to 1080P from the receiver. It does not affect other TVs.
• Front Micro USB port for firmware updates ensuring future compatibility
• One built-in reset button for factory reset via long press 3 seconds

What is in the box?

• 1x Transmitter
• 4x Receivers
• 1x 12V/2A DC Power Adapter
• 1 x User Manual
• 5x IR Transmitter cables
• 5x IR Receiver cables
• 10x Mounting ears and screws (2pcs for the transmitter/8pcs for the receivers)
• 1 x Micro USB cable

*PLEASE NOTE: 60m distance is under perfect transmission conditions including straight cable runs with no bends, kinks, electrical interference, patch panels, or wall outlets. Use CAT6 solid core cable for the best results.



Please note: IEEE-568B standard solid cables are recommended for this kit.



Specifications

Specifications

Operating Temperature Range	-5 to +40°C(+23 to +104°F)
Operating Humidity Range	5 to 90%RH (No Condensation)
Input Video format	720P / 1080P / 4K@60hz
Data transfer speed rate	18 Gbps(Maximum)
Input port	1xHDMI
Output ports	4xRJ45 output port, 1xHDMI loop out
Output Video Format Supported	DTV/HDTV: 480P/576P/720P/1080P, 4K VESA resolution
Transmission Distance	60m (197ft) at 4K@60Hz
Power consumption	12.5W(Maximum)
Dimension (LxWxH)	TX: 229.5x113.4x24mm; RX:110.2x68.3x18mm
Net Weight	TX:1300g; RX:1600g(4pcs)

*PLEASE NOTE: 60m distance is under perfect transmission conditions including straight cable runs with no bends, kinks, electrical interference, patch panels, or wall outlets. Use CAT6 solid core cable for the best results.

FAQ

1. Q:Does this unit work with the new Foxtel iQ3?

A: Yes. Just make sure your IR emitter is placed in the correct location. See the image below.

Also note that the new Foxtel IQ boxes only come with a Bluetooth remote. You will need to acquire a Foxtel compatible IR remote.

2. Q: What happens if the product is not working?

A: Please check your cable, make sure IEEE-568B type solid cable is being used.

Includes:
1 x AV Distribution Kit
