Pro2 4X4 HDMI2.0 18GBPS 4K60 Matrix Downscaler Audio Extractor HDR Black
HDMIMX44V2 4x4 HDMI Matrix with 18Gbps Bandwidth and Audio ExtractionThis 4x4 HDMI matrix with 18Gbps bandwidth and audio extraction is a cutting-edge device designed to manage and distribute high-quality audio and video signals across multiple sources and displays independently. Supporting 4K resolution at 60Hz, this advanced HDMI matrix ensures stunning visual clarity and smooth performance, making it perfect for home theaters, gaming setups, conference rooms, and professional AV environments.
The audio extraction feature further enhances its capabilities, allowing you to send audio to an external sound system, such as a receiver, soundbar, or speakers, for a superior audio experience. By maintaining video quality while routing audio separately, this HDMI matrix ensures that both audio and video are optimized for their respective outputs, providing the best possible AV performance.
Additionally, this HDMI matrix offers multiple control options, including IR control for long-distance operation, RS232 control, panel button control, TCP/IP control, and Web GUI control. These versatile control methods make it easy to manage and configure the matrix in any setup, whether for home entertainment, corporate environments, or professional AV installations.
Features
- HDMI 2.0 version (Support 4K@60Hz YUV4:4:4)
- Bandwidth upto 18Gbps
- HDCP1.4/2.2 compliant
- Support HDR10, HLG, Dolby vision

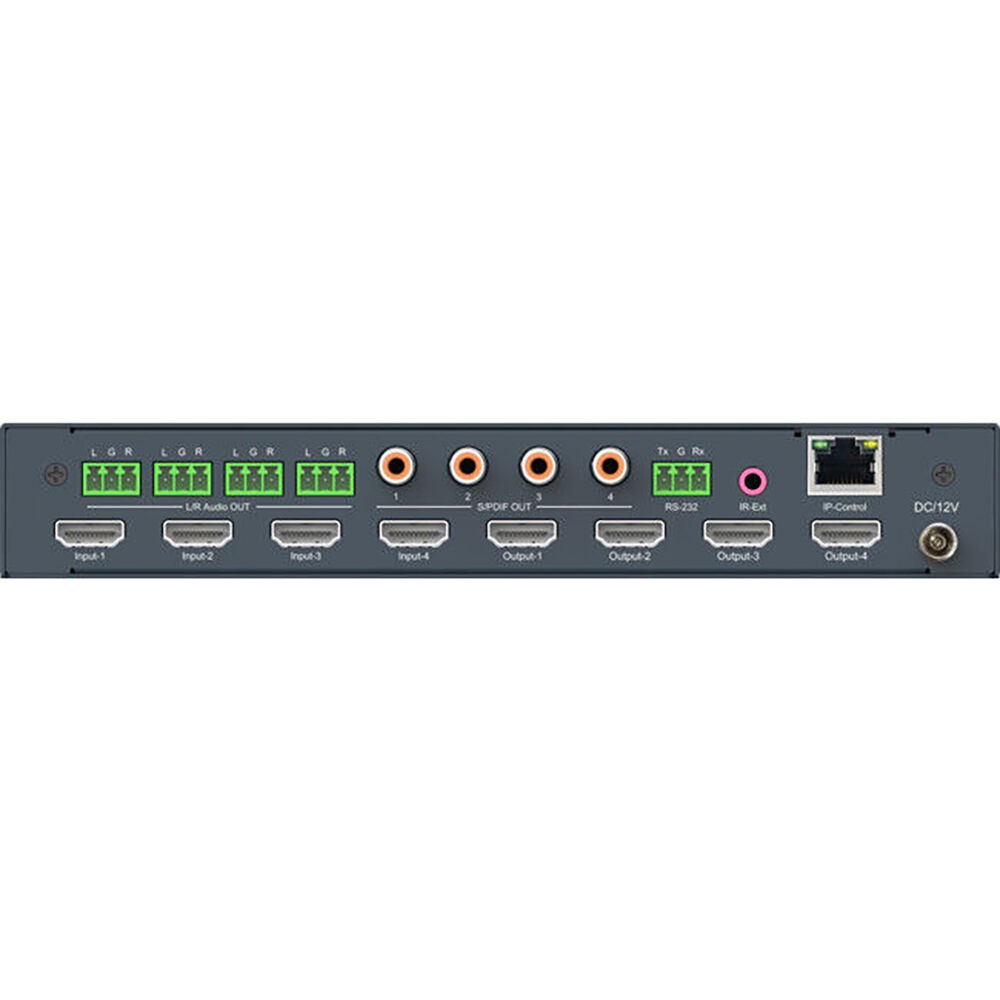

- 4xHDMI Input, 4xHDMI output with 4xSPDIF coaxial Audio and 4xAnalog Audio
- Any one of the 4 Ultra HD sources to any one of the 4 Ultra HD displays

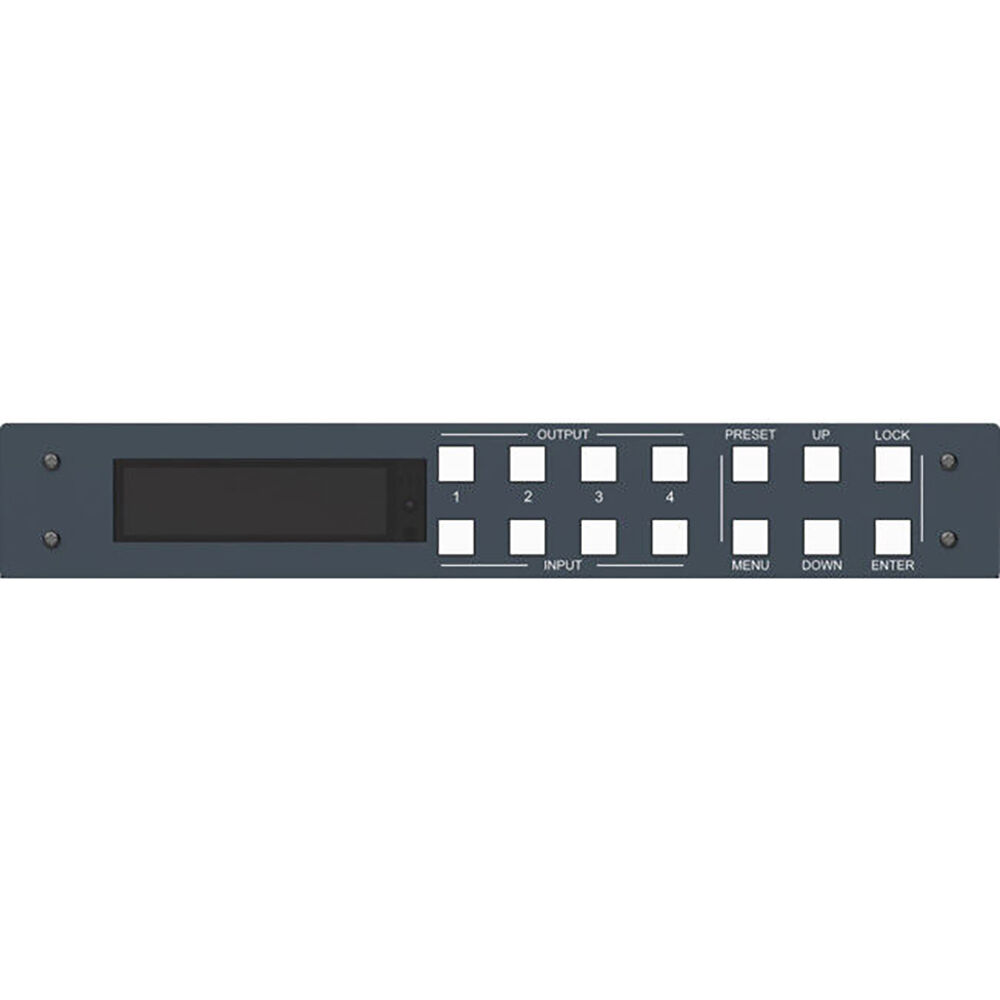

- Support IR control for long distance; RS232 control, Panel Button control, TCP/IP control and Web GUI Control
- Support PCM2.0, Dolby True HD and DTS-HD master audio, LPCM7.1, audio sampling rate up to 192KHZ.
- Support analog and S/PDIF audio extraction
- Support EDID management and EDID study
- Support firmware updating through RS232 port
Specifications
| Operating Temperature | 0°Cto+40°C(+32°Fto+104°F) |
| Operating Humidity | 5 to 90%RH (No Condensation) |
| Max resolution | 4K@ 60hz YUV4:4:4 |
| HDCP Compliant | HDCP2.2 and HDCP1.4 |
| Output Video | HDMI2.0 and HDMI 1.4 |
| Audio Format Supported | PCM2.0,Dolby True HD and DTS-HD master audio, LPCM7.1 |
| RS-232 serial port | 3PIN terminal block connectors |
| Ethernet port (IP control) | RJ45, female |
| IR Ext port | 1x3.5mm stereo jack |
| Bandwidth | 18 Gbps |
| Default IP | 192.168.1.168 |
| Dimensions (WxHxD) | L216.2 X W128.5 X H34 mm |
| Net Weight | 0.47kg |
| Power consumption | 14W (Max) |
What is in the box?
- HDMI Matrix x 1pc
- 12V 2A DC power supply x 1pc
- IR Remote control x 1pc
- IR Ext RX Cable x 1pc
- Phoenix plugs for RS232 cable termination & L/R Audio termination x 5pcs
- CD for control software & user manual x 1pc
Includes:
1 x Matrix Switch
