Pro2 4-Way 18GBPS HDMI Switcher Downscaler Audio/Video Device Hub Black
Features
Enjoy the ultimate in multimedia flexibility with the HDMI4S18GV2 4-Way HDMI Switcher.

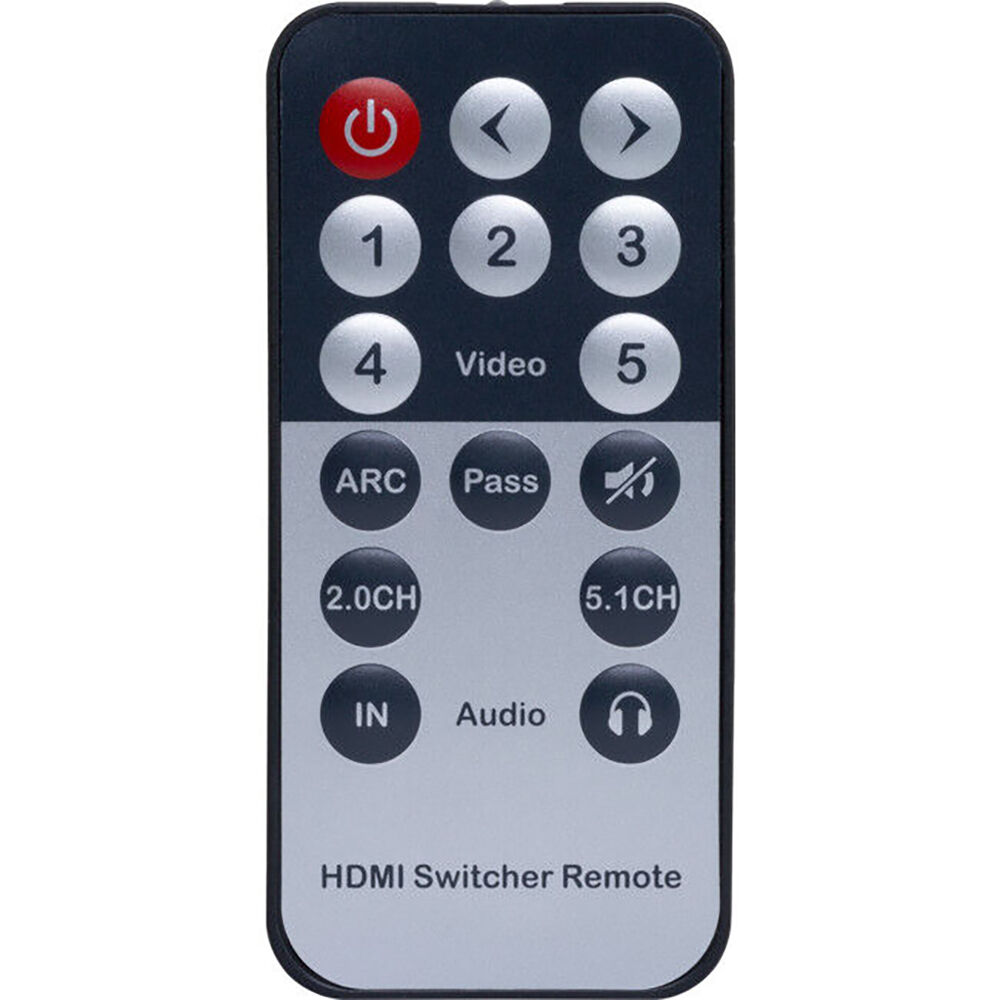

Effortlessly toggle between four HDMI sources using either the convenient front panel buttons or the included remote control. This feature-packed switcher comes with the latest HDMI technology including 4K video, 18Gbps bandwidth, HDMI version 2.0 and HDR10 support.
In addition to its switching capabilities, the HDMI4S18GV2 serves as a versatile audio extractor, delivering either 2CH stereo or 5.1CH surround sound. Take advantage of the Audio Return Channel (ARC) for enhanced audio experiences, effortlessly extracting signals from your TV through S/PDIF or RCA outputs. Enjoy a seamless blend of convenience and high-quality audio and video with the HDMI4S18GV2.
FEATURES
- HDMI 2.0 version (Supports 4K@60Hz YUV4:4:4), with downscaler
- Bandwidth up to 18Gbps
- HDCP2.2/1.4 compliant
- Supports Dolby Vision, HDR10
- Includes 4x HDMI in & input switching using the panel button or remote control
- Analogue audio 2.0 & S/PDIF 5.1 audio extraction
- Analogue audio 2.0 embedding
- CEC and ARC bypass to input
- ARC audio return to S/PDIF output
- Supports PCM2.0-7.1, 24-bit, 192K, Dolby True HD & DTS 7.1 audio
CONNECTIONS

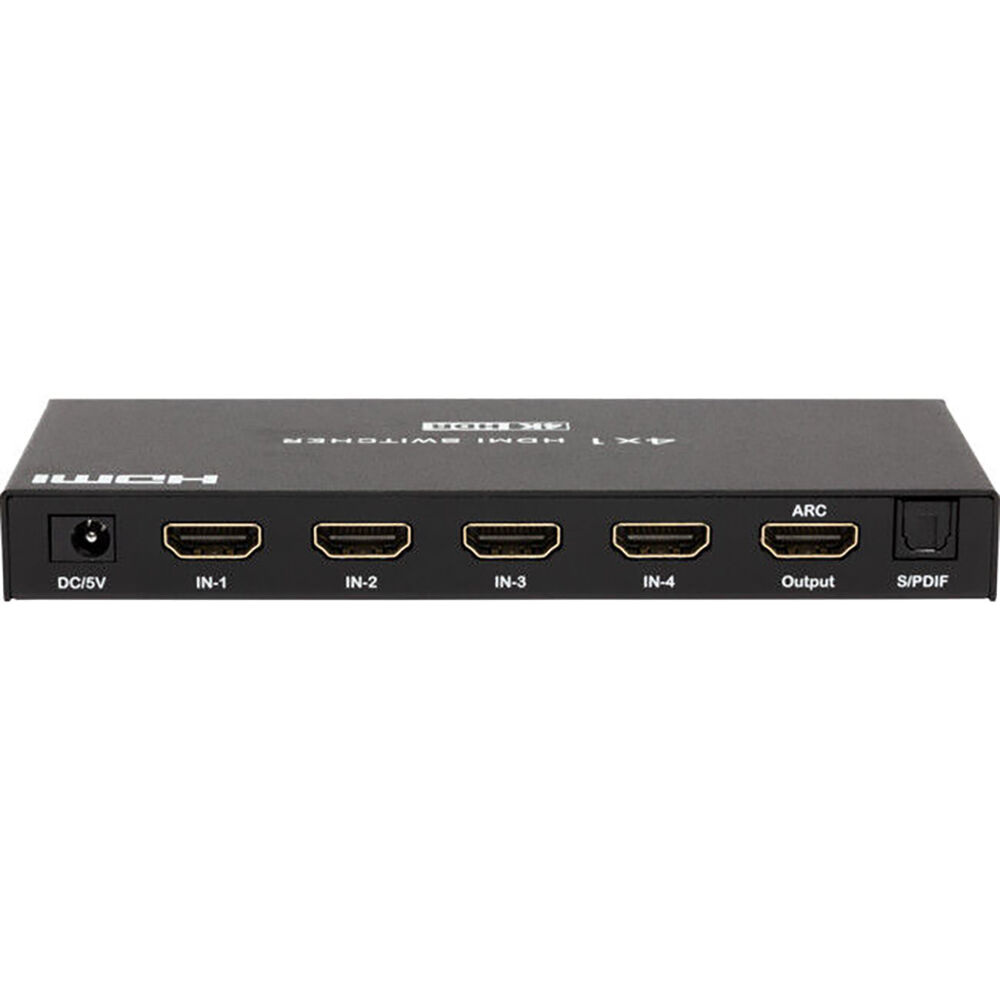

Back Panel
- 4x HDMI Inputs
- 1x (ARC) HDMI Output
- S/PDIF optical input

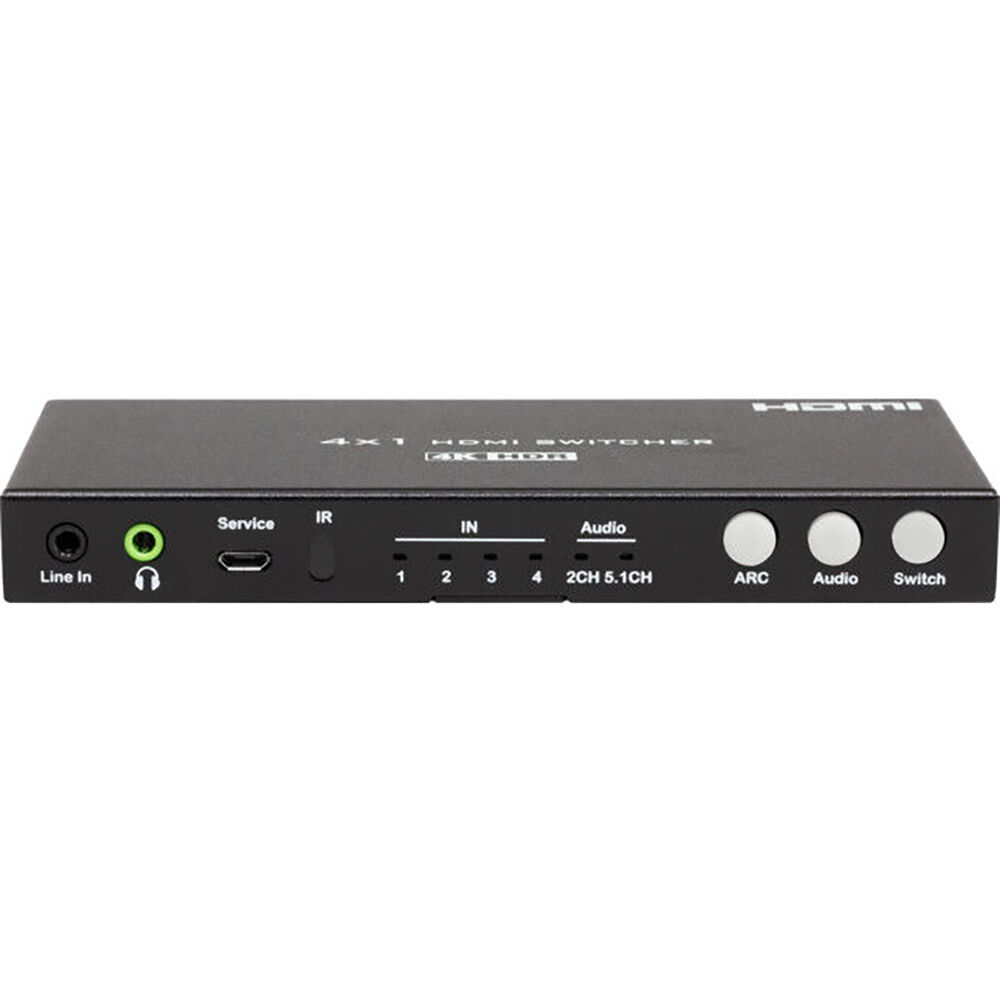

Front Panel
- 3.5mm AUX input
- IR window
- LED indicators for HDMI input, 2.0 Audio, 5.1 Audio
- Push buttons for source switching: ARC (2CH-5.1CH audio), Audio input (Aux, S/PDIF) & source switching (1-4)
Specifications
Specifications
| Max Resolution | 4K @ 60hz YUV 4:4:4 |
| HDMI Features | Dolby Vision, CEC, ARC, HDR10 |
| HDMI Version | HDMI2.0 |
| HDCP Version | HDCP2.2/1.4 |
| Audio Format Supported | Analogue audio 2.0/SPDIF 5.1 extraction; Analogue audio 2.0 embedding |
| Transmission Distance | 1080P 15m, 4K @ 30hz (input 10m, output 15m) or 4K @ 60hz under HDR (5m) |
| 3D Support | Yes |
| Transmission Distance | 60m (197ft) at 4K@60Hz |
| Dimension (LxWxH) | 153.7mm x 63.6mm x 18mm |
| Net Weight | 260g |
Includes:
1 x Switch
