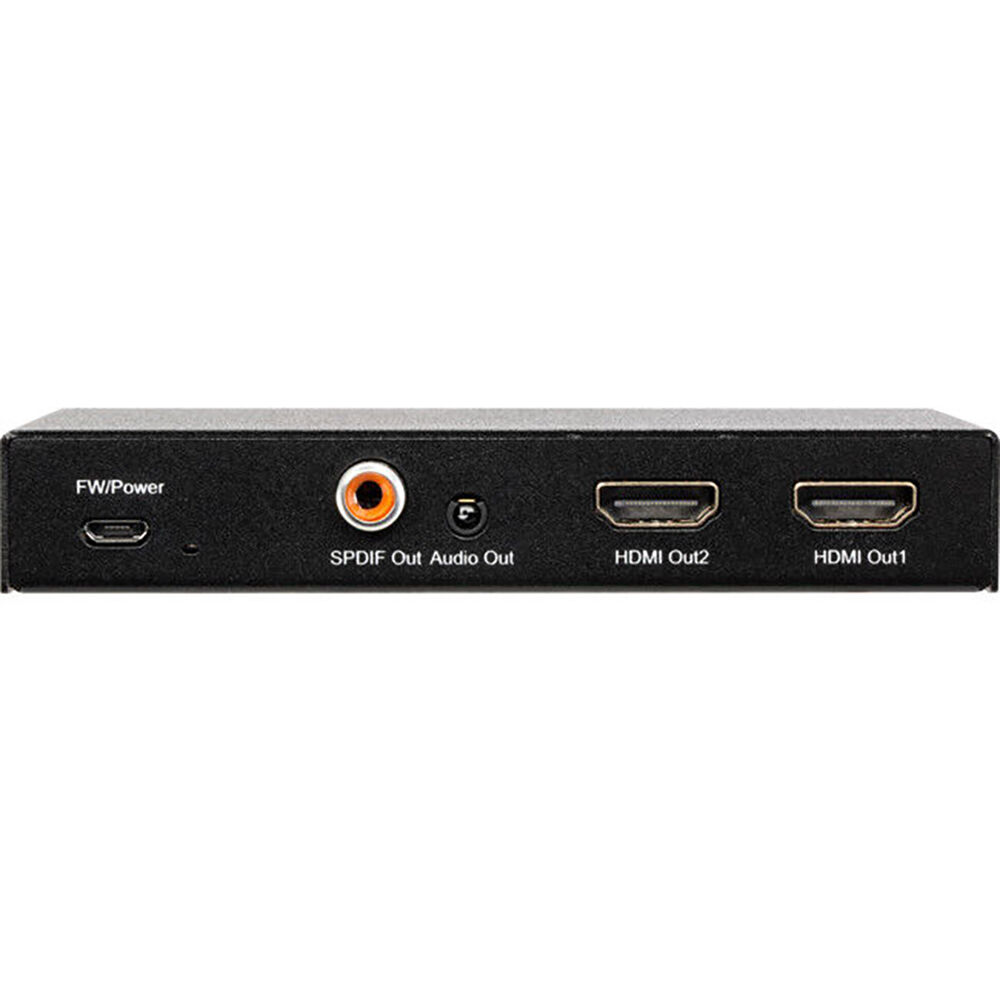

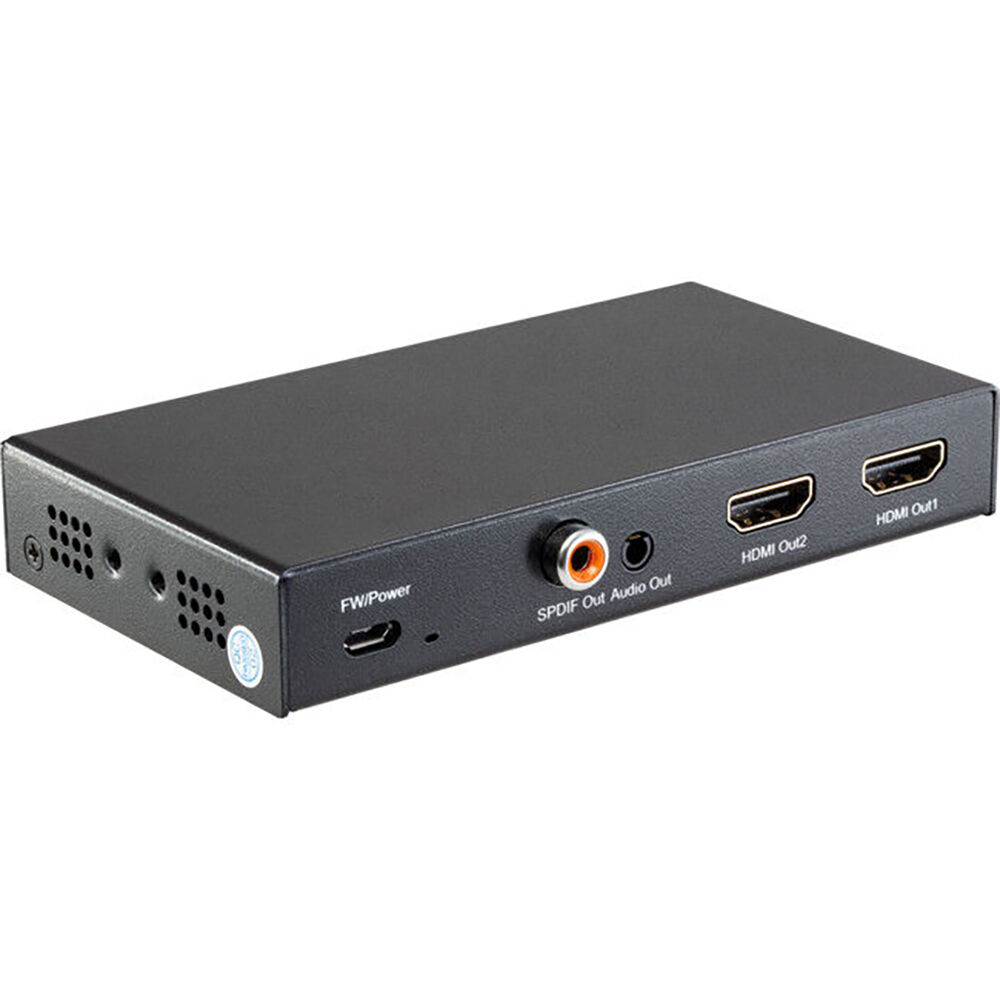

Pro2 HDMI 1x2 Splitter OR 2x1 Switch AV Audio/Video Distribution Hub Black
1 in 2 out HDMI splitter OR 2 in 1 out HDMI switch via the function button whenever required. HDMI 2.0 specification, up to 18Gbps bandwidth, analog 3.5mm stereo and SPDIF audio extractor or embedder, all built into this compact HDMI2SPW.
Note: It is not a matrix switch, it is only 2 way HDMI splitter or 2 way HDMI switch with 2 outputs.
Features
- HDMI 2.0 version
- Support 4K@60Hz YUV4:4:4
- Bandwidth up to 18Gbps
- HDCP2.2/HDCP1.4
- Support 3D, HDR10, Dolby Vision, and DTS
- Support 2x HDMI in, 2x HDMI out
- EDID management
- Down scaler function
- Support analog 3.5mm stereo/SPDIF audio extraction
- Support analog 3.5mm stereo/SPDIF audio embedded
- Support power-off memory function

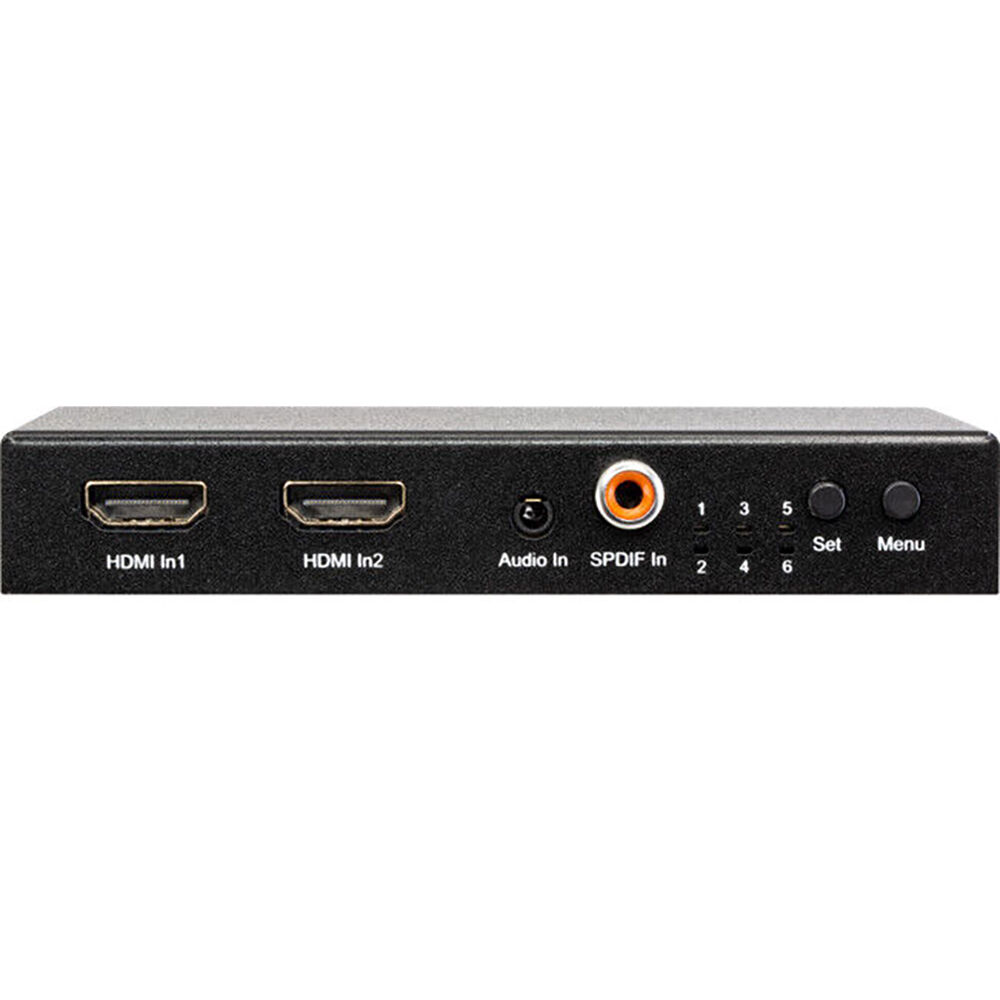

Functional indicator lights
Function | | | Switch | EDID | Embedder/Extractor | Audio |
| | | | | | |
| | | | | | | |
| LED Indicator | 1 | 2 | 3 | 4 | 5 | 6 |
| | | | | | | |
OFF | \ | \ | HDMI in 1 | Default | Extractor | Bypass |
Blink | \ | \ | \ | Auto | SPDIF embed | 5.1 |
ON | \ | \ | HDMI in 2 | Copy | Analog embed | 2.0 |
Specifications
- Operating Temperature Range: 0°C to +40°C(+32°f to + 104 °f )
- Operating Humidity Range: 5 to 90%RH (No Condensation)
- Power supply: 5V 1A
- Maximum power: 2W (work under 4K2K/60hz)
- Max resolution: 4k@60hz YUV4:4:4
- Function: HDR10 and Dolby vision
- HDMI version: HDMI2.0
- Bandwidth: 18Gbps
- HDCP version: HDCP2.2/HDCP1.4
- Control ways: Switch button and EDID
- Distance: 1080P: input 8m max; output 8m max, 4k@30hz: input 8m max;output 8m max, 4k@60hz-8bit: input 5m max;output 5m max
- Dimensions(LxWxH): 121 x68.2x20mm

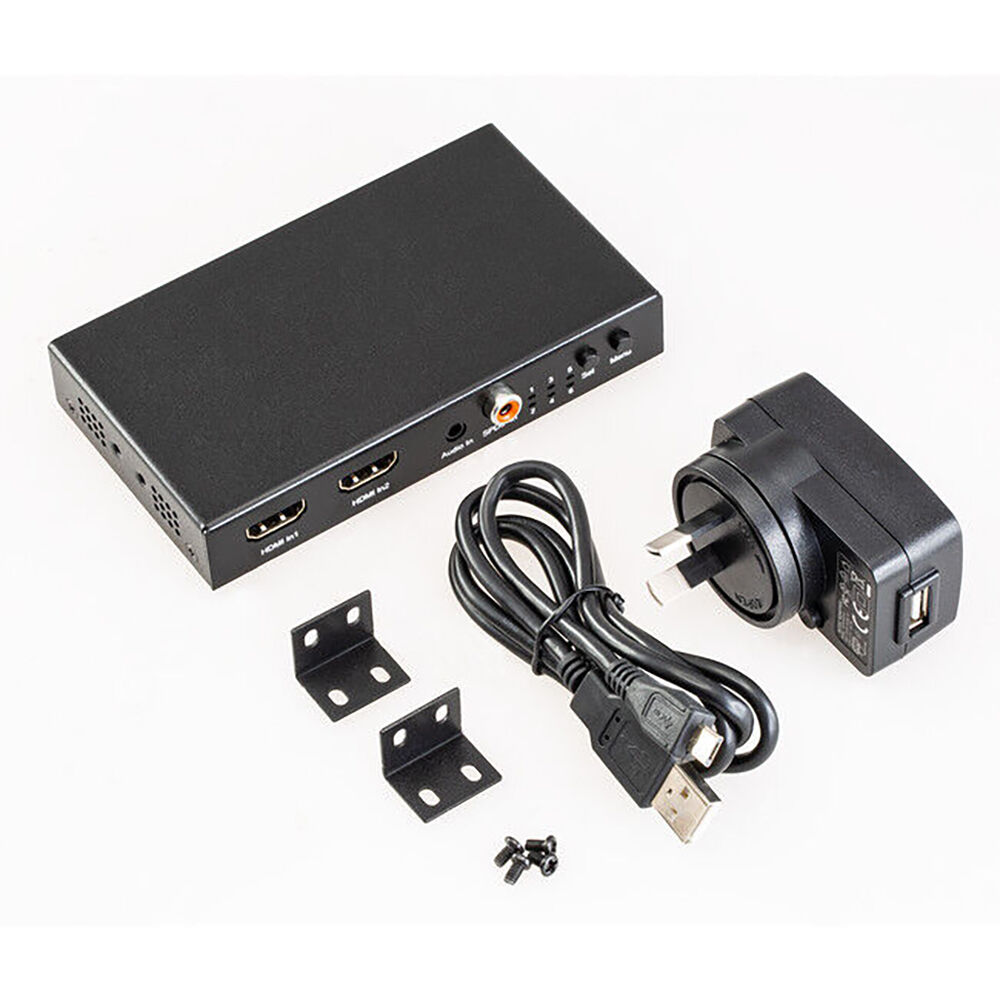

What is in the box?
- HDMI2SPW x 1
- Power supply (DC5V 1A) x 1
- Manual x 1
Setting Instructions
1. Hold the "menu" button for at least 2 secondsand release, the LED lights will flash.
2. Short press the "menu" button, the LED 3,4,5,6 will light up one by one in a loop and can set "input source, EDID, Audio embed or extractor, Audio channel" individually.
3. Press the "set" button to change the LED indicator to "On" "Blink" or"Off".
(Refer to the above function table)
For example, the HDMI2SPW is default to HDMI input 1, to select HDMI input 2, the instruction is:
1. Hold the "menu" button for 2 seconds and release it.
2. Short press the "menu" button till the LED 3 lights up, press the "set" button to set the LED 3"ON";
3. Press the "set" button once again, the LED 3 will be "OFF" and unit is back to HDMI input 1.
FAQ:
Q: I have one 4K TV, and one 1080P TV, and the video source is 4K, what settings should I do to have it one output 4k and one output 1080P?
A: If the video source is Foxtel IQ4 4k, set the EDID to default. (LED 4 off), if it is other 4k sources, you can setthe EDID to either default or copy mode. (LED 4 off or on)
Q: Does HDMI2SPW work with Foxtel IQ4?
A: Yes.
Q: Does this HDMI2SPW have a downscale feature?
A: Yes, it downscales when the EDID is set to Copy and Default, (LED4 is on or off), but not in mix mode. It also downscales the resolution only, not the refresh rate though.Downscale does not support 4K60 4222 signal.
Includes:
1 x Switch
