Pro2 4K 2x2 Video Wall Controller Processor AV Distribution w/ Remote Black
Compared with the VWC22 video wall controller, apart fromthe main full HD to 4K@30Hz upgrade, this new model is also packed with lots of extra features. It takes more inputs like USB type C and DVI, and one extra HDMI input makes a total of 2 HDMI inputs. A loop-out HDMI output makes it easyto have a local display or cascade the video wall up to 10 x10 max. Web GUI control is now accessible, thanks to the built-in RJ45 Ethernet port.
Please note this video wall controller is 4K@30Hz only, not 60Hz or 18Gbps.
Features
- Support the highest resolution up to 4K@30Hz 4:4:4for the USB-C and HDMI inputs, 1920 x 1200 for DVI input;
- Support USB type C/DVI/ 2 HDMI inputs;
- Support 4K 2x2 video wall or cascade to create 2x3, 3x4, and max 10x10 video wall;
- Support output image 180-degree rotation;
- Support EDID management; two default EDID: 4K30HZ,1080P;
- Support HDCP2.2/1.4;
- Support the panel button control, IR remote control, RS232 command, and Web GUI control;
- Support SPDIF and Analog audio extraction;
- Micro USB port for future firmware upgrade;
- 1U rack design, easy installation;
Specifications
- Operating Temperature Range: 0 to +40°C (32 to +104°F)
- Operating Humidity Range: 5 to 90 % RH (no condensation)
- Input Video Signal: 0.5-1.0 volts p-p
- Input DDC Signal: 5 volts p-p (TTL)
- Video Format Supported: Ultra HD TV/FHDTV: 4K@30hz/1080P
- Audio Format Supported: LPCM 16bit ,24bit,44.1KHz/48KHz

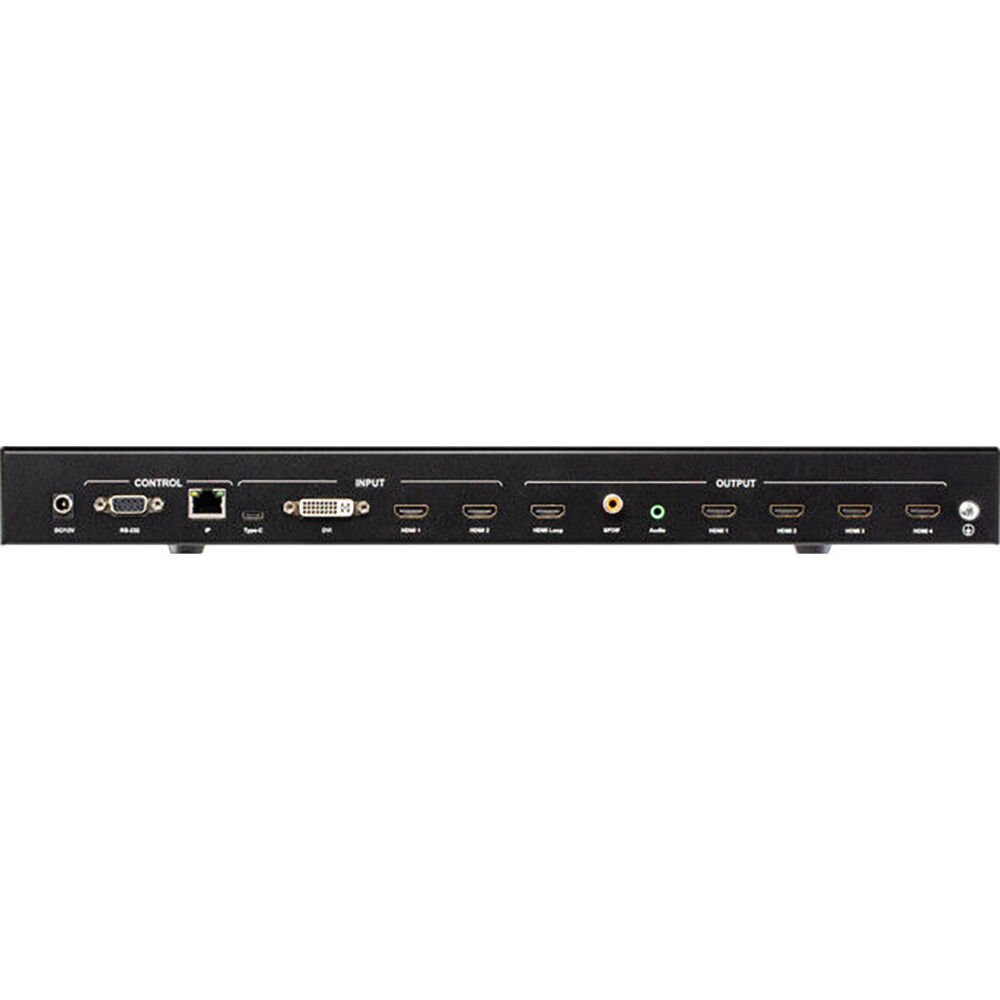

- Input ports: 2xHDMI, 1xUSB TYPE-C, 1xDVI
- Output ports: 5xHDMI
- Splitter mode: 1x4 HDMI Splitter
- Preset Video wall modes: 1x1; 2x2; 4x1; 1x4; 3x2-1; 3x2-2; 4x2-1; 4x2-2; 4x3-1; 4x3-2; 4x3-3
- Cascade video wall modes: 3x3; 4x4; 4x6; 5x6; 6x6and so on, Max 10x10 video wall
- Control Way: Panel control; Web GUI; Remote control; RS232 control
- Power consumption: 15watts (Maximum)
- Power supply: DC 12V 2A
- Dimension (mm): 438L X 190W X 44H mm
- Weight: 2500g
What is in the box?
- VWC22V2 x 1pc
- 12V2A Power supply x1pc
- Disc x 1pc, includes user manual and RS232 commandlist
- Remote control x 1pc
- Micro USB cable x 1pc
- Mounting ear x 1pair
- Screws x 6pcs
Includes:
1 x Wall Controller
