Pro2 4K 3x3 Video Wall Controller Processor AV Distribution w/ Remote Black
Like the VWC22V2, this video wall controller supports 4K@30Hz.
With 9 HDMI outputs plus a loop-out, you can easily make up a 3x3 video wall, or cascade to create a max 10x10 video wall. With the USB type C, VGA, Display Port, and HDMI inputs, video sources are more flexible. 4 ways to control the video wall, Front panel, IR remote, RS232 commands, and web GUI.
Please note this video wall controller is 4K@30Hz only, not 60Hz 18Gbps.
Features
- Support the highest resolution up to 4K@30Hz 4:4:4
- Support USB-C/VGA/DP/HDMI inputs;
- Support 4K 3x3 video wall or cascade to create 3x4, 4x5, 5x6 and max 10x10 video wall;
- Support output image 180-degree rotation;
- Support EDID management; two default EDID: 4K30HZ,1080P;
- Support HDCP2.2/1.4;

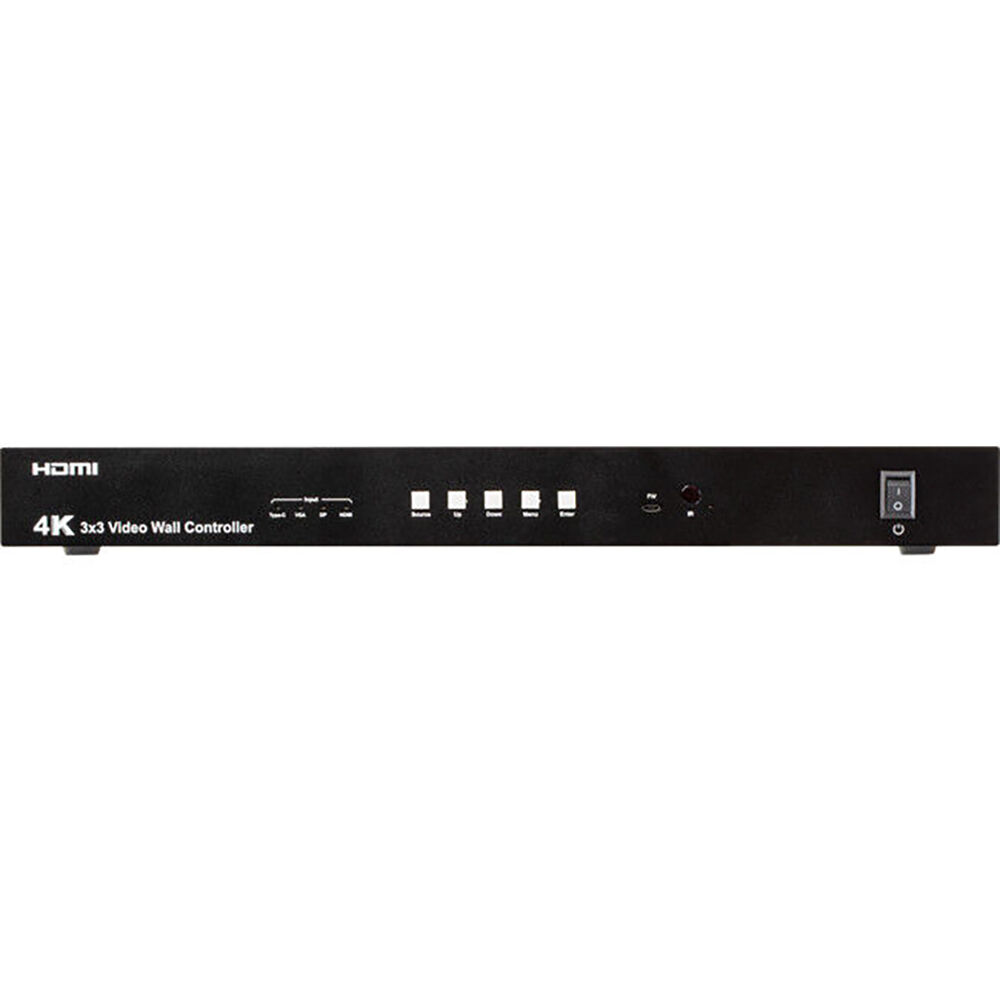

- Support the panel button control, IR remote control, RS232 command, and Web GUI control;
- Support SPDIF and Analog audio extraction;
- Support third-party platform control via RS232 or Lan port;
- Micro USB port for future firmware upgrade;
- 1U rack design, easy installation;
Specifications
- Operating Temperature Range: 0 to +40°C (32 to +104°F)
- Operating Humidity Range: 5 to 90 % RH (no condensation)
- Input Video Signal: 0.5-1.0 volts p-p
- Input DDC Signal: 5 volts p-p (TTL)
- Video Format Supported: Ultra HD TV/FHDTV: 4K@30hz/1080P
- Audio Format Supported: LPCM 16bit ,24bit,44.1KHz/48KHz

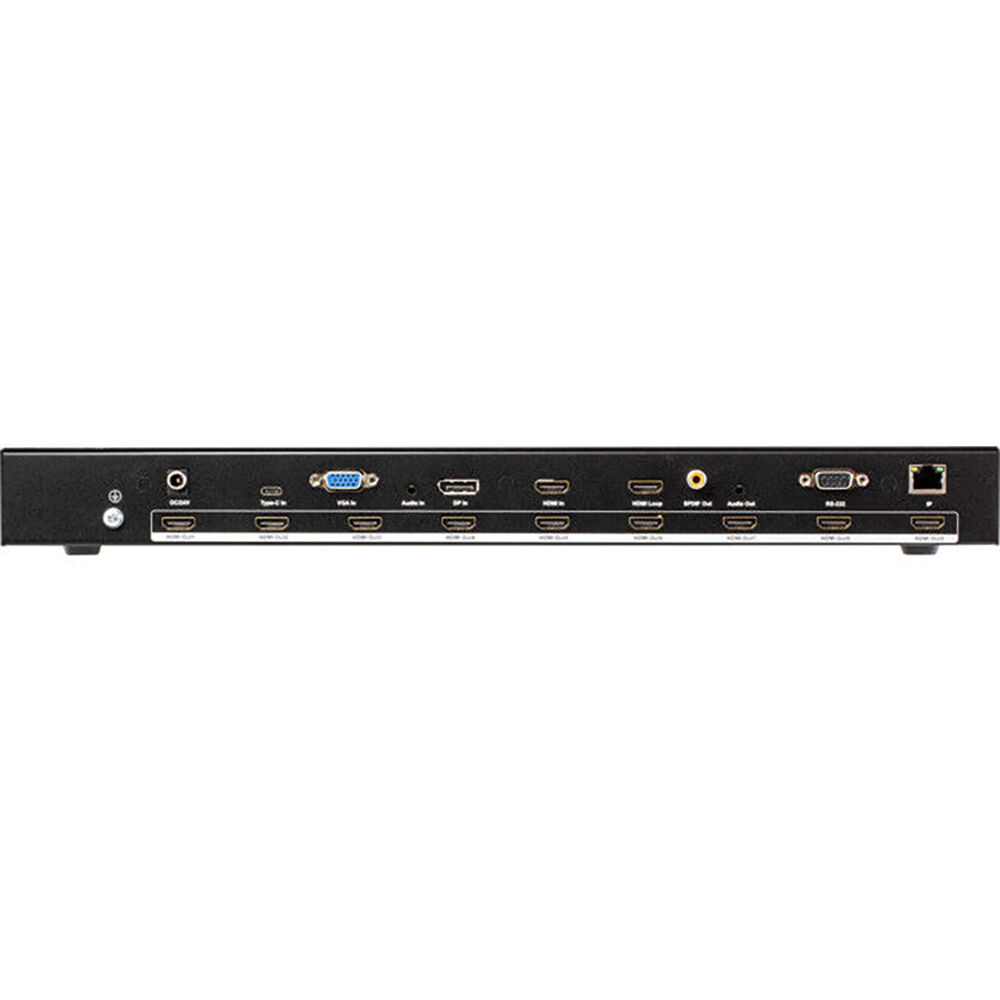

- Input ports: 1xHDMI, 1xUSB TYPE-C, 1xDPx 1xVGA
- Output ports: 9xHDMIx 1xHDMI loop out
- Splitter mode: 1x9 HDMI Splitter
- Video wall modes: 1x1; 1x3; 1x4; 2x2; 2x3; 2x4; 3x1; 3x2; 3x3; 4x1; 4x2; 4x3-1; 4x3-2; 3x4-1; 3x4-2; 4x4-1;4x4-2
- Cascade video wall modes: 4x3; 4x4; 5x5; 6x6 and so on, Max 10x10 video wall
- Control Way: Panel control; Web GUI; Remote control; RS232 control
- Power consumption: 33watts (Maximum)
- Power supply: DC 24V 2A
- Dimension (mm): 438L X 274W X 44H mm
- Weight: 3620g

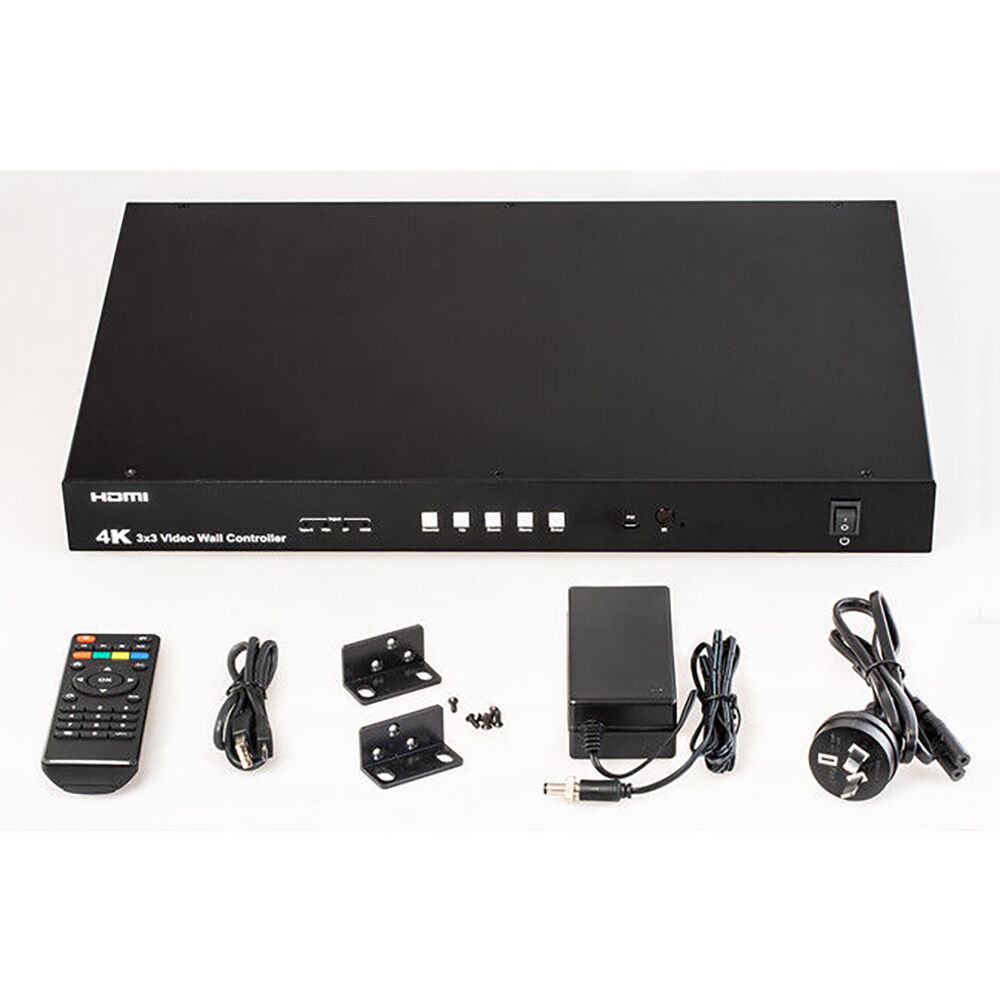

What is in the box?
- VWC33 x 1pc
- 24V2A Power supply x1pc
- Disc x 1pc, includes user manual and RS232 commandlist

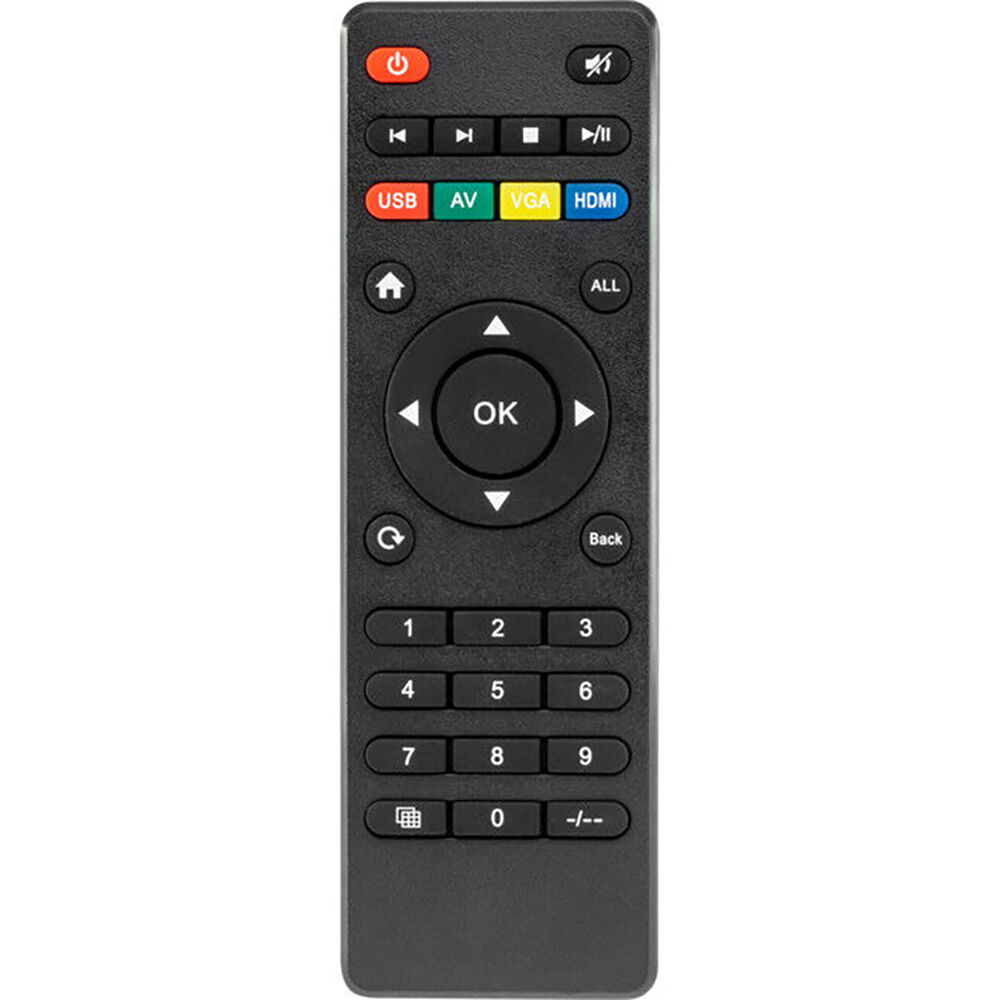

- Remote control x 1pc
- Micro USB cable x 1pc
- Mounting ear x 1pair
- Screws x 6pcs
Includes:
1 x Wall Controller
